Partiron

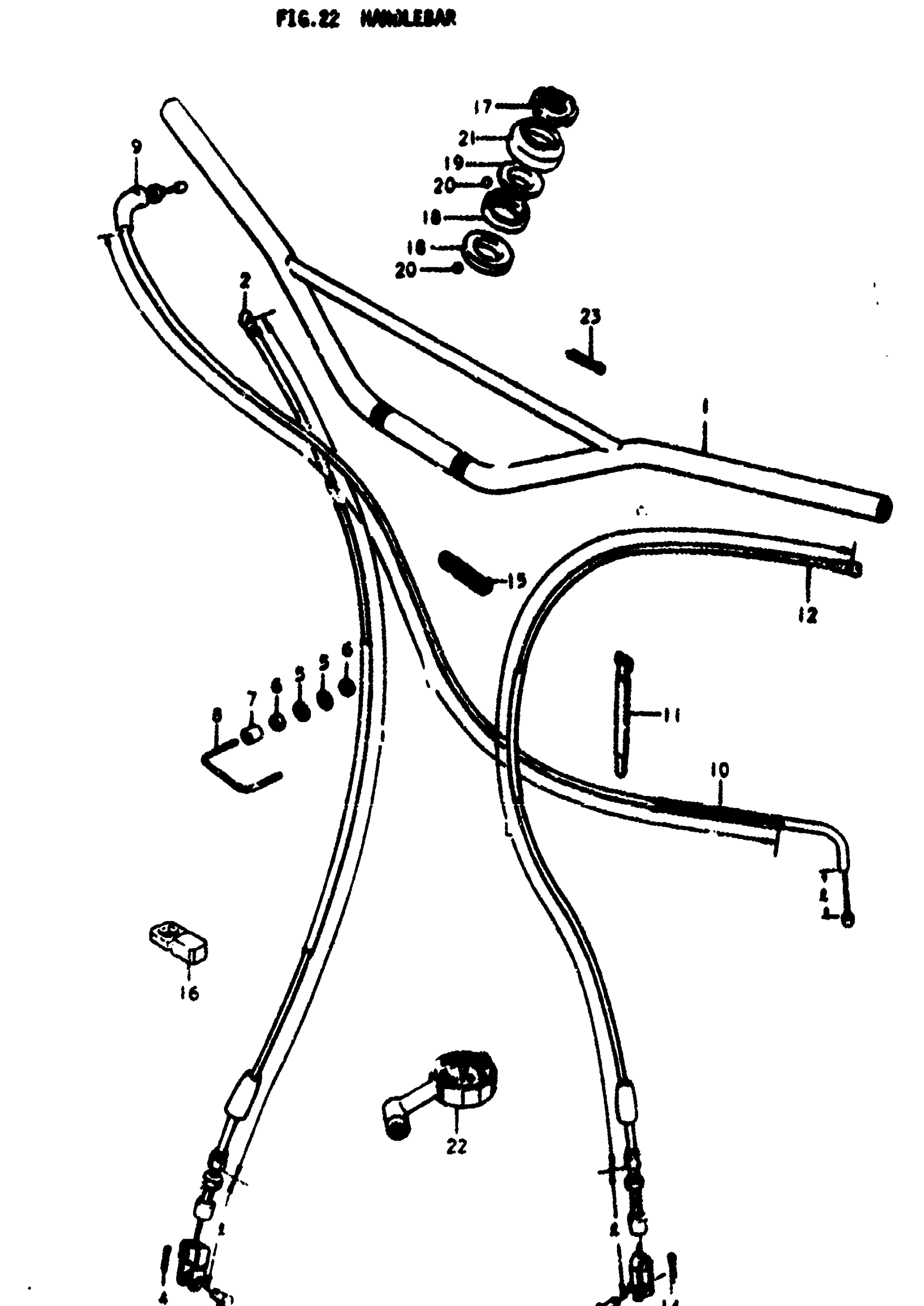

Suzuki RM400 (1978) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56110-41110.

56110-41111

Unavailable

2

CABLE,FR BRAKE | L:1220, L: 15 This part replaces 58100-41300.

58100-37200

Unavailable

3

PIN

09200-05001

$1.65

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

5

WASHER This part replaces 08322-21038.

08322-01037

$1.93

6

NUT

08310-11036

Unavailable

7

ROLLER

09306-04002

Unavailable

8

GUIDE, CABLE

58626-41000

Unavailable

9

CABLE,THROTTLE | L:1040, L:118 This part replaces 58300-41602.

58300-41X01

Unavailable

10

PROTECTOR

58399-27100

$3.78

11

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

12

CABLE, CLUTCH (L:1050) | L:1040, L:131 This part replaces 58200-41101.

58200-41301

Unavailable

13

PIN

09200-06004

$2.20

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

16

GUIDE, CLUTCH CABLE

58621-41110

Unavailable

17

NUT, STEERING STEM

51631-28000

$17.37

18

INNER RACE, STEERING LOWER

51611-33002

$13.81

19

OUTER RACE, STEERING UPPER

51621-30001

Unavailable

20

STEEL BALL

06111-08003

$1.49

21

DUST SEAL

51643-30000

Unavailable

22

GAUGE, FRONT FORK AIR This part replaces 96200-41310.

96200-41330

Unavailable

23

PIN This part replaces 04111-25258.

04111-2530A

$1.49
