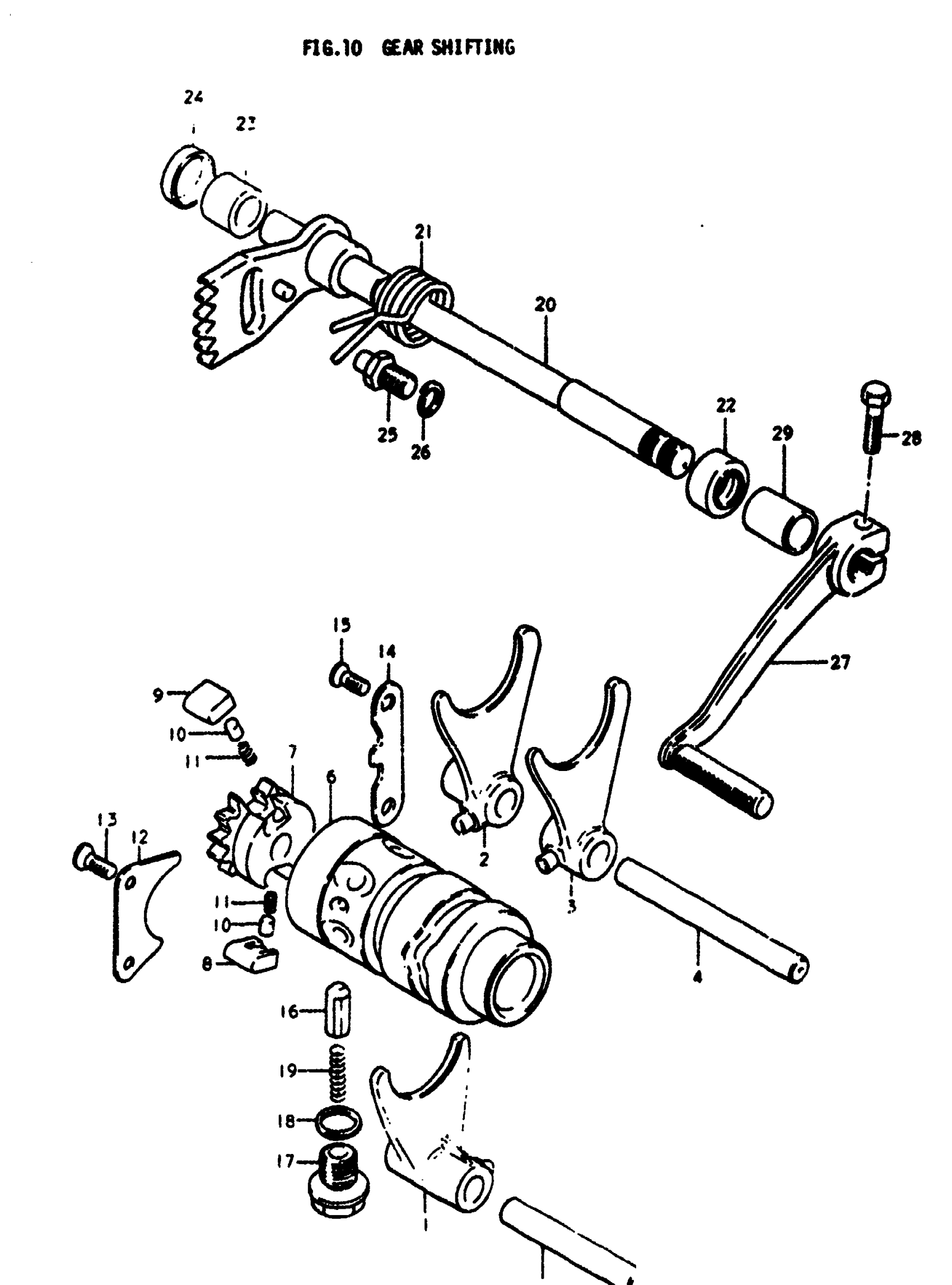

Suzuki RM400 (1978) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO. 1

25211-40100

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 25221-40100.

25221-40X00

Unavailable

3

FORK, GEAR SHIFTING NO. 2

25231-40100

Unavailable

4

SHAFT, NO.2 This part replaces 25411-40000.

25411-14331

$23.07

5

SHAFT, NO.1 This part replaces 25421-40000.

25421-35410

$23.47

6

CAM, GEAR SHIFTING

25310-41100

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

10

PIN

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, GR SHIFT POLE This part replaces 25331-30000.

25331-30001

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

GUIDE, CAM

25341-40001

$12.17

15

SCREW This part replaces 02122-06128.

02122-06127

$1.84

16

STOPPER, CAM This part replaces 25351-11000.

25351-11010

$7.22

17

HOLDER, STOPPER This part replaces 25352-11000.

25352-11010

$7.22

18

GASKET | 14.7x19.5x2

09168-14004

$1.83

19

SPRING

09440-05011

$1.92

20

NO DESCRIPTION AVAILABLE This part replaces 25510-41200.

25510-41X01

Unavailable

21

SPRING

09444-26013

$3.10

22

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

23

SPACER | 12.2x20x13 This part replaces 09180-12066.

09180-12139

$8.07

24

PLUG This part replaces 09241-22001.

09241-22003

$3.85

25

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

LEVER, GEAR SHIFTING

25610-41102

Unavailable

28

BOLT This part replaces 01107-06208.

01500-06207

$2.28

29

CUSHION

09320-13001

Unavailable
