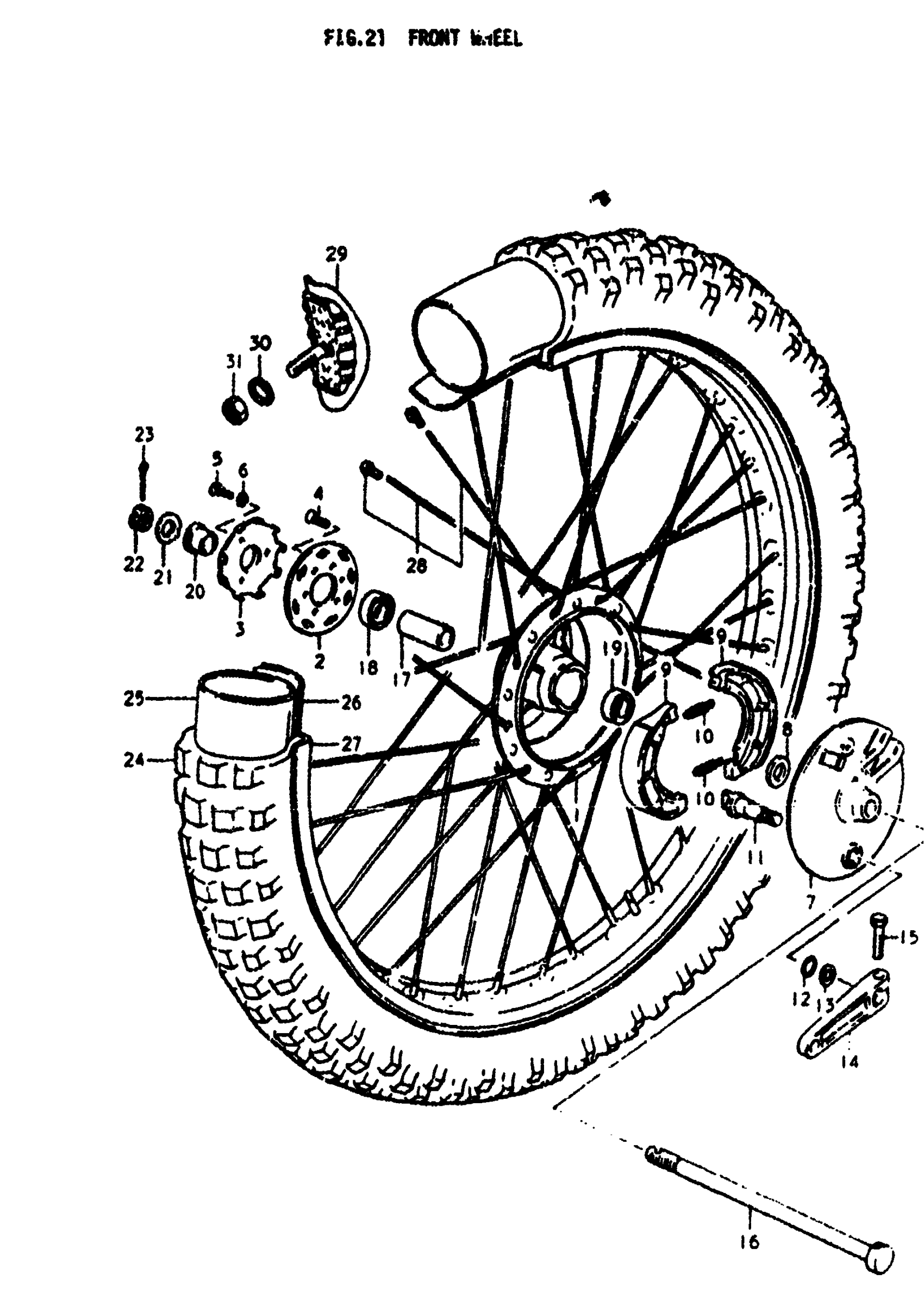

Suzuki RM400 (1978) FRONT WHEEL Diagram

HUB, FRONT WHEEL

54110-41301

Unavailable

HUB FLANGE, FRONT RH

54112-41301

Unavailable

HOLDER, HUB BEARING RH

54151-30500

$8.42

SCREW This part replaces 02122-06168.

02122-06167

$1.49

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 This part replaces 54210-41300.

54210-41301

Unavailable

BOSS

54221-41300

Unavailable

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

SPRING This part replaces 09443-07001.

09443-07025

$2.08

CAM, BRAKE

54441-41300

Unavailable

DUST SEAL

09280-12001

$2.90

WASHER | 12.5x20x1

09160-12011

$1.54

NO DESCRIPTION AVAILABLE This part replaces 54451-41300.

54451-41301

Unavailable

BOLT This part replaces 01107-06258.

01500-06257

$1.97

AXLE,FRONT This part replaces 64711-43000.

64711-43001

$41.97

SPACER (12.5X19X52) | 12.6x19x52 This part replaces 09180-12041.

09180-12144

$10.30

BEARING This part replaces 08123-62010.

08133-62017

$18.47

BEARING This part replaces 08143-62010.

08143-6201B

$10.80

SPACER, RH

54741-41100

$15.13

WASHER This part replaces 08322-11128.

08322-01127

$1.84

NUT This part replaces 08314-41128.

08314-4012A

$2.50

PIN This part replaces 04111-30308.

04111-3030A

$1.49

TIRE, FRONT | 3.00-21

55100-41311

Unavailable

TIRE, FRONT | 3.00-21 This part replaces 55200-16510.

55200-16511

$36.73

PROTECTOR, INNER TUBE | 25X21 This part replaces 55261-16510.

55261-14540

$3.83

RIM, WHEEL | 1.60Ax21

55311-41320

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 55300-41840.

55300-41841

Unavailable

STOPPER, BEAD This part replaces 65270-30001.

65270-43D00

$58.75

WASHER This part replaces 08322-11088.

08322-01087

$2.13

NUT This part replaces 08310-12088.

08310-00087

$2.13
