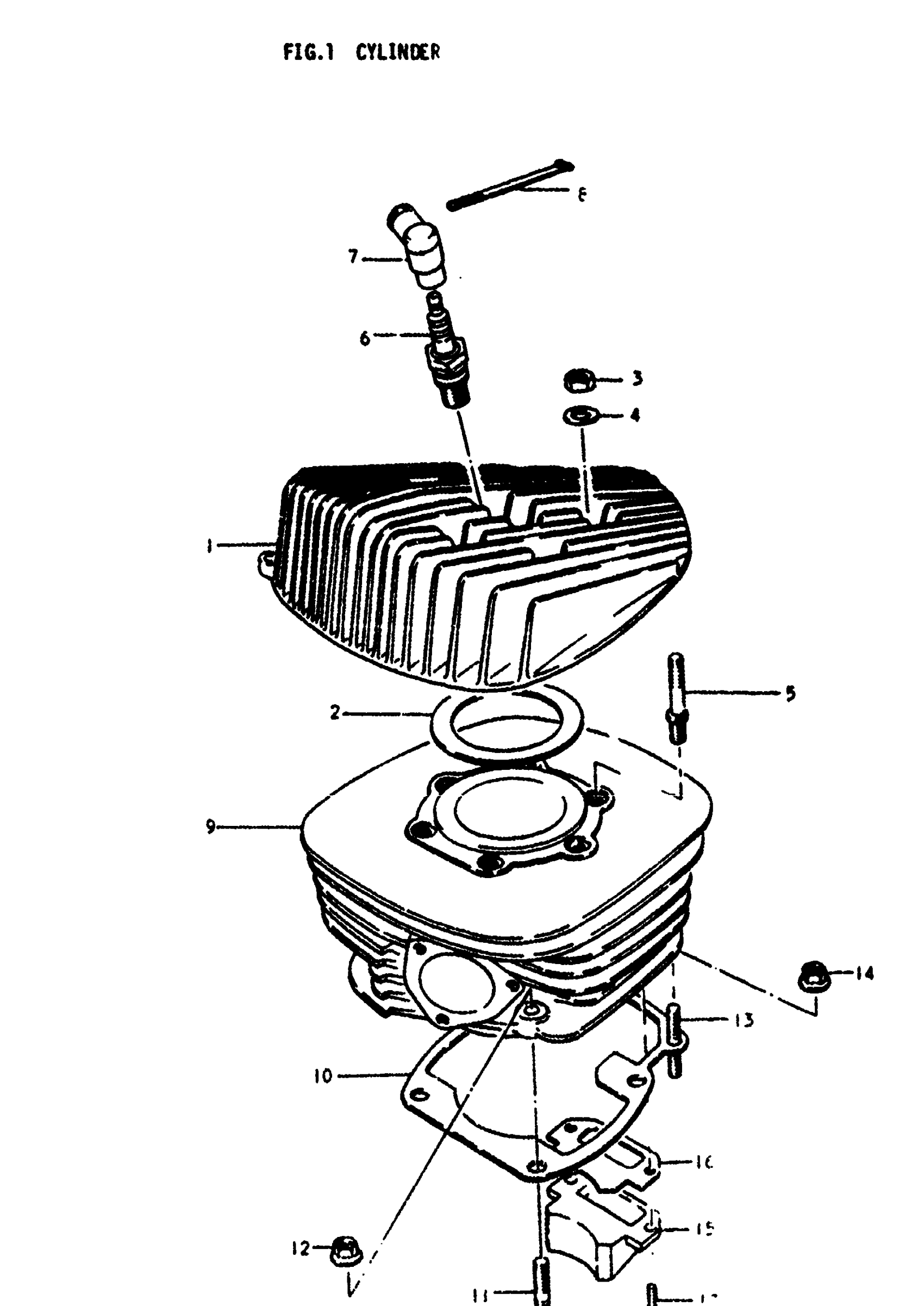

Suzuki RM400 (1978) CYLINDER Diagram

#

Description
Price

1

CYLINDER REAL

11111-41203

Unavailable

2

GASKET, CYLINDER HEAD | T:1.0

11141-41230

Unavailable

2

GASKET, CYLINDER HEAD | T:0.5 OPT

11141-41220

Unavailable

3

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

4

WASHER This part replaces 08322-21088.

08322-01087

$2.13

5

STUD BOLT

09108-08018

$3.18

6

SPARK PLUG (NGK,B8EGV) | NGK, B8EV This part replaces 09482-00096.

09482-00208

Unavailable

7

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

8

BELT

09407-09402

$2.45

9

CYLINDER

11210-41210

Unavailable

10

GASKET, CYL (NA This part replaces 11241-41200.

11241-41200-H17

Unavailable

11

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

12

NUT, WHEEL SET This part replaces 09159-10022.

08316-10107

$2.39

13

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

14

NUT (CHROME) This part replaces 09159-08019.

08316-10087

$2.26

15

REED VALVE ASSY This part replaces 13150-41111.

13150-41113

$143.67

16

GASKET,REED VAL This part replaces 13156-41100.

13156-41100-H17

$3.43

17

SCREW This part replaces 02112-06208.

02112-06207

$1.78
