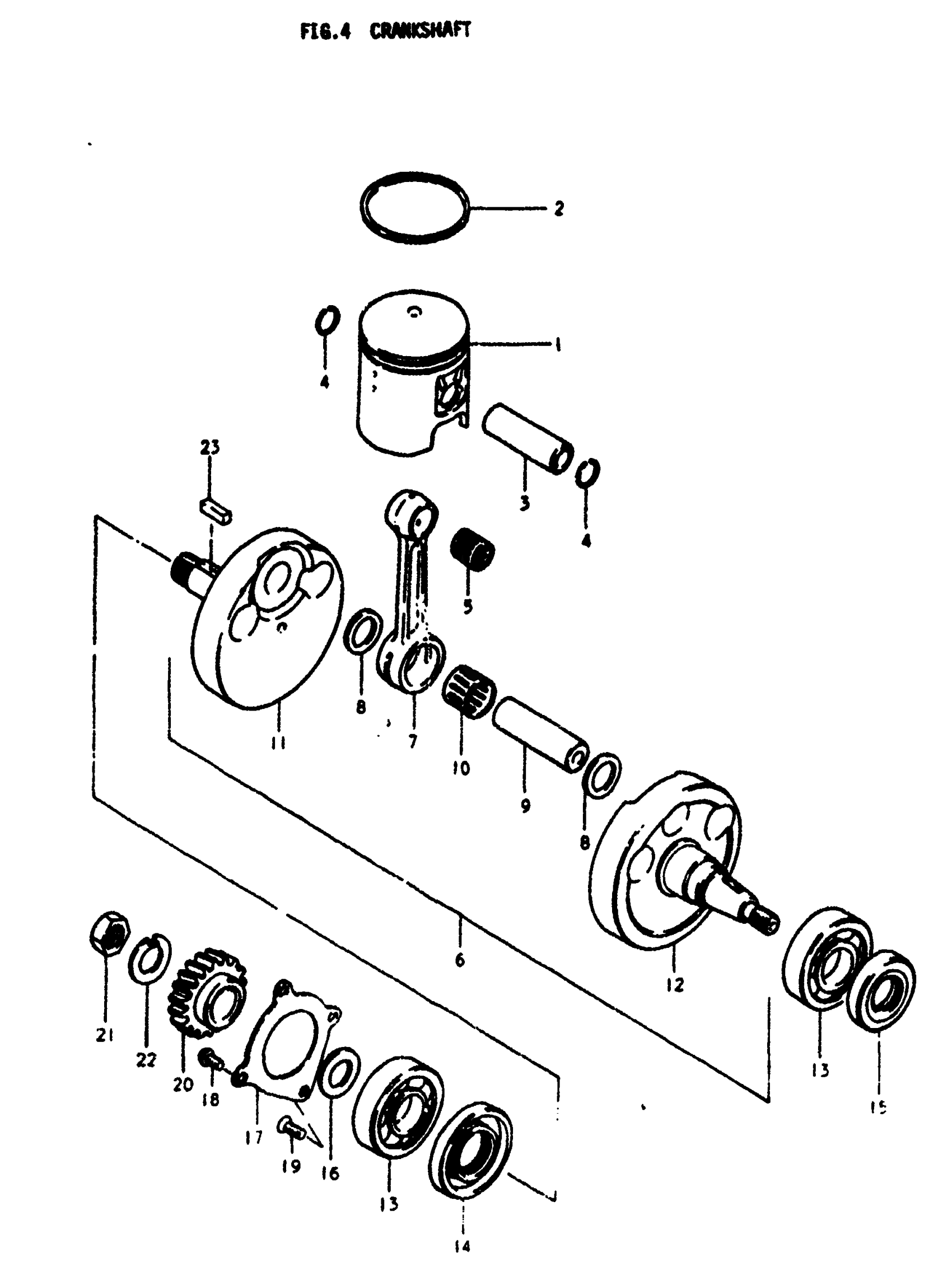

Suzuki RM400 (1978) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD) This part replaces 12110-41210.

12110-40400

Unavailable

1

NO DESCRIPTION AVAILABLE | 05:0.25 This part replaces 12110-41210-025.

12103-40870-025

Unavailable

1

PISTON SET | 05:0.5 This part replaces 12110-41210-050.

12103-40870-050

Unavailable

2

RING SET, PISTON

12141-41220

Unavailable

2

RING SET, PISTON | 05:0.25

12141-41220-025

Unavailable

2

RING SET, PISTON | 05:0.5

12141-41220-050

Unavailable

3

PIN, PISTON This part replaces 12151-15002.

12151-13A00-0A0

$16.02

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN This part replaces 09263-18011.

09263-18016

$19.93

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-41200

Unavailable

7

ROD, CONNECTING

12161-41200

Unavailable

8

THRUST WASHER | 24x29x1.5

09160-24015

Unavailable

9

PIN,CRANK This part replaces 12211-41200.

12211-40900

Unavailable

10

BEARING This part replaces 09263-24007.

09263-24026

$69.90

11

CRANKSHAFT, RH

12221-41200

Unavailable

12

CRANKSHAFT, LH

12261-41200

Unavailable

13

BEARING, RH (30x72x19) This part replaces 08113-63060.

09262-30077

$58.43

14

OIL SEAL, RH | 38.8x72x11

09289-40004

Unavailable

15

OIL SEAL, LH | 23x50x9

09283-24001

Unavailable

16

WASHER

09160-25021

Unavailable

17

RETAINER, BEARING RH

12541-41200

Unavailable

18

SCREW This part replaces 02112-06128.

02112-06127

$1.84

19

SCREW This part replaces 02122-06128.

02122-06127

$1.84

20

GEAR, PRIMARY DRIVE | NT:26

21111-41200

Unavailable

21

NUT This part replaces 09140-20008.

09140-20013

$4.26

22

WASHER | 20.5x43x1

09166-20005

Unavailable

23

KEY

09421-07001

Unavailable
