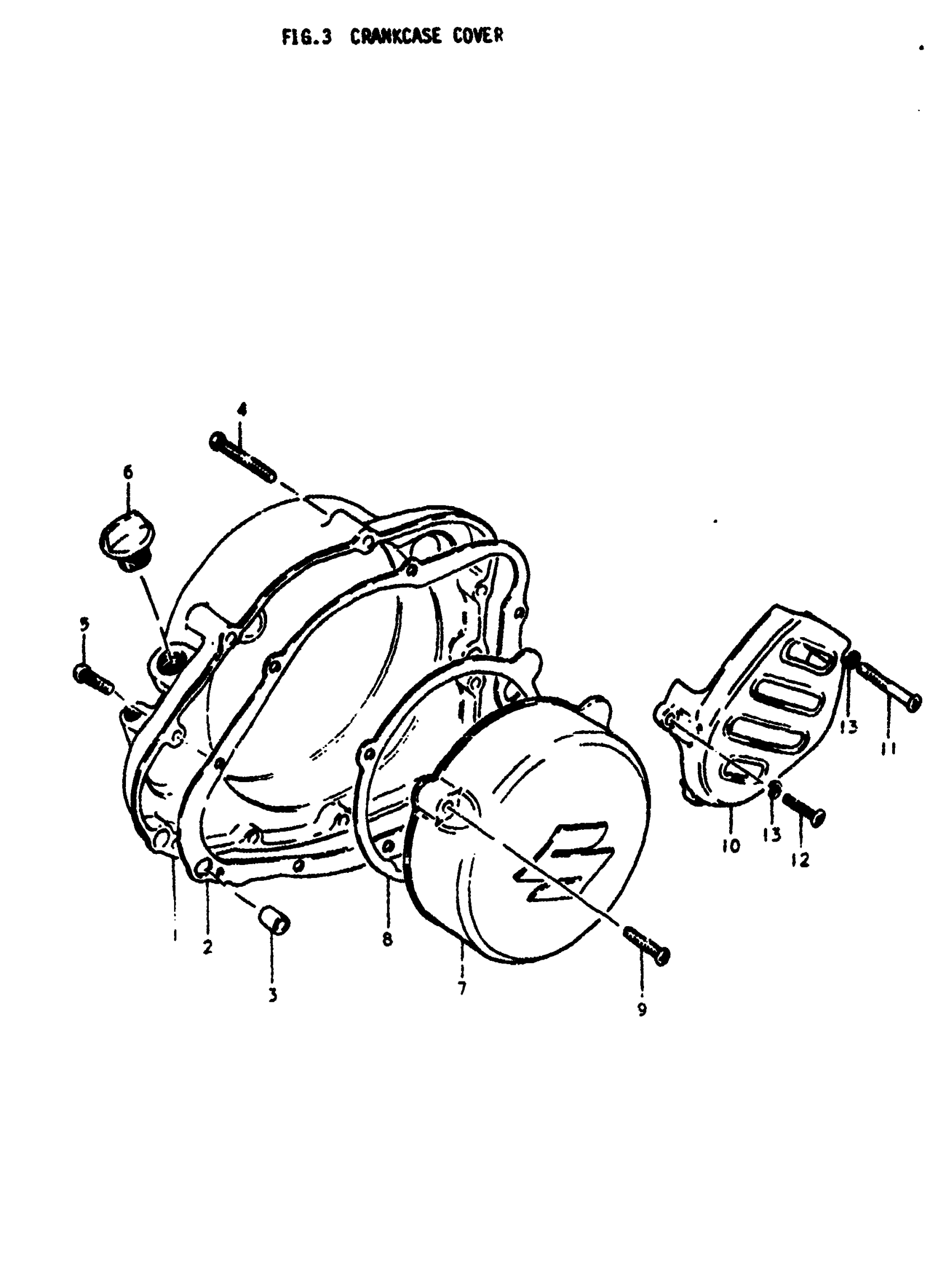

Suzuki RM400 (1978) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-41200

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-41200.

11482-41201

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW This part replaces 02112-06208.

02112-06207

$1.78

6

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

7

COVER, MAGNETO

11351-41100

Unavailable

8

GASKET MAGNETO This part replaces 11483-41101.

11483-41111

Unavailable

9

SCREW This part replaces 02112-06258.

02112-06257

$1.78

10

COVER, ENGINE SPROCKET

11361-41101

Unavailable

11

SCREW

02112-06307

$1.97

12

SCREW This part replaces 02112-06208.

02112-06207

$1.78

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
