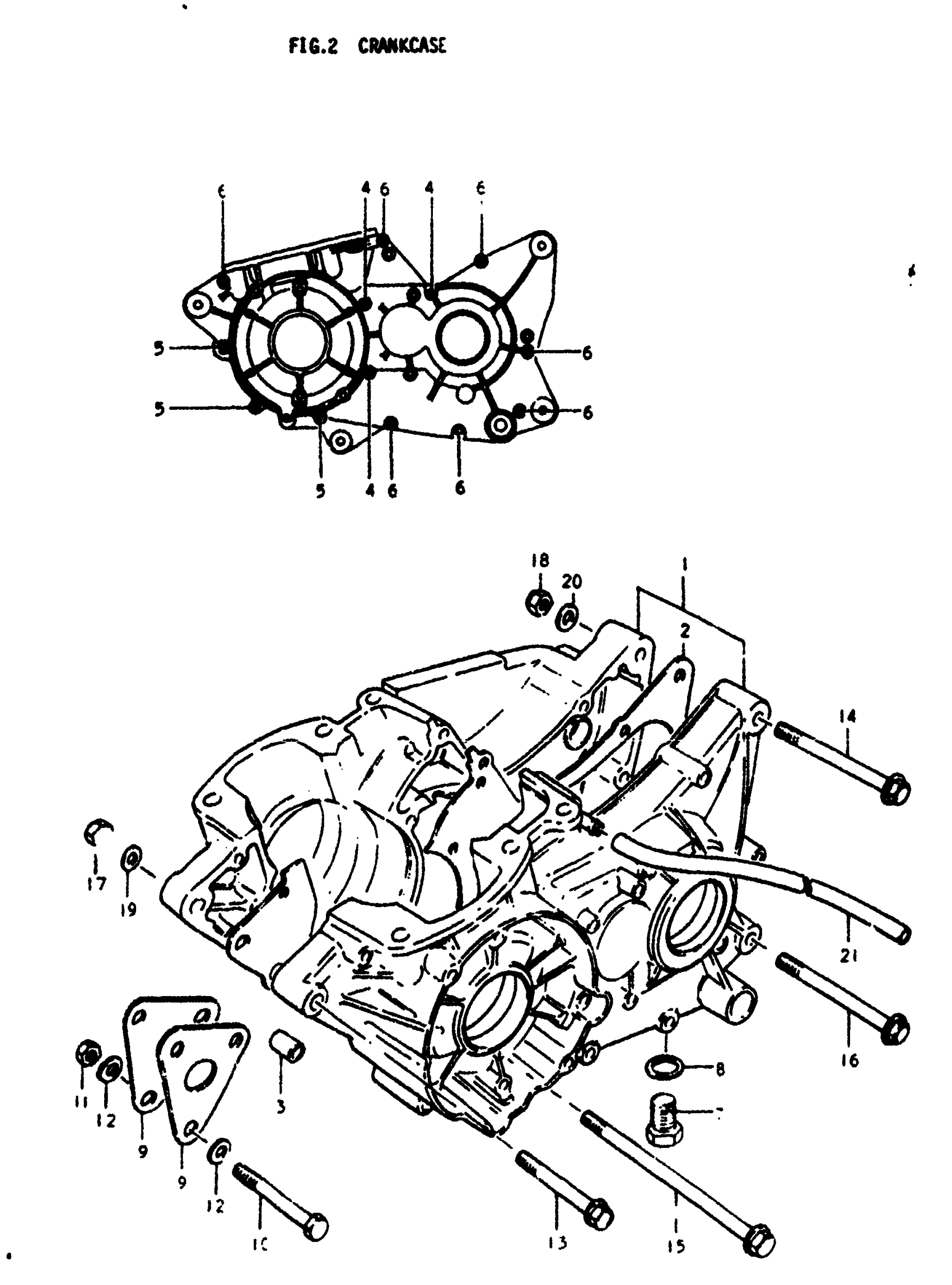

Suzuki RM400 (1978) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11300-41860.

11300-41862

Unavailable

2

GASKET

11481-41200

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06608.

02112-06607

$2.57

5

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

6

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

7

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

8

GASKET | 15.7x19.5x2

09168-14004

$1.83

9

PLATE, ENGINE MOUNTING

41591-41101

Unavailable

10

BOLT | 8x72 This part replaces 09103-08017.

09103-08099

$5.57

11

NUT

09159-08020

$1.78

12

WASHER

09164-08011

$2.71

13

BOLT | 8x72 This part replaces 09103-08017.

09103-08099

$5.57

14

BOLT, NO.2 | 10x90

09103-10010

Unavailable

15

BOLT (8X145) | 8x145 This part replaces 09103-08015.

09103-08298

Unavailable

16

BOLT, NO.4 | 8x80

09103-08016

$29.80

17

NUT

09159-08020

$1.78

18

NUT,M10X1.25X12 This part replaces 09159-10018.

09159-10048

$2.83

19

WASHER This part replaces 08322-11108.

08322-01107

$2.15

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

HOSE | 5x8x390 This part replaces 09343-05021.

09352-50005-00B

$13.93
