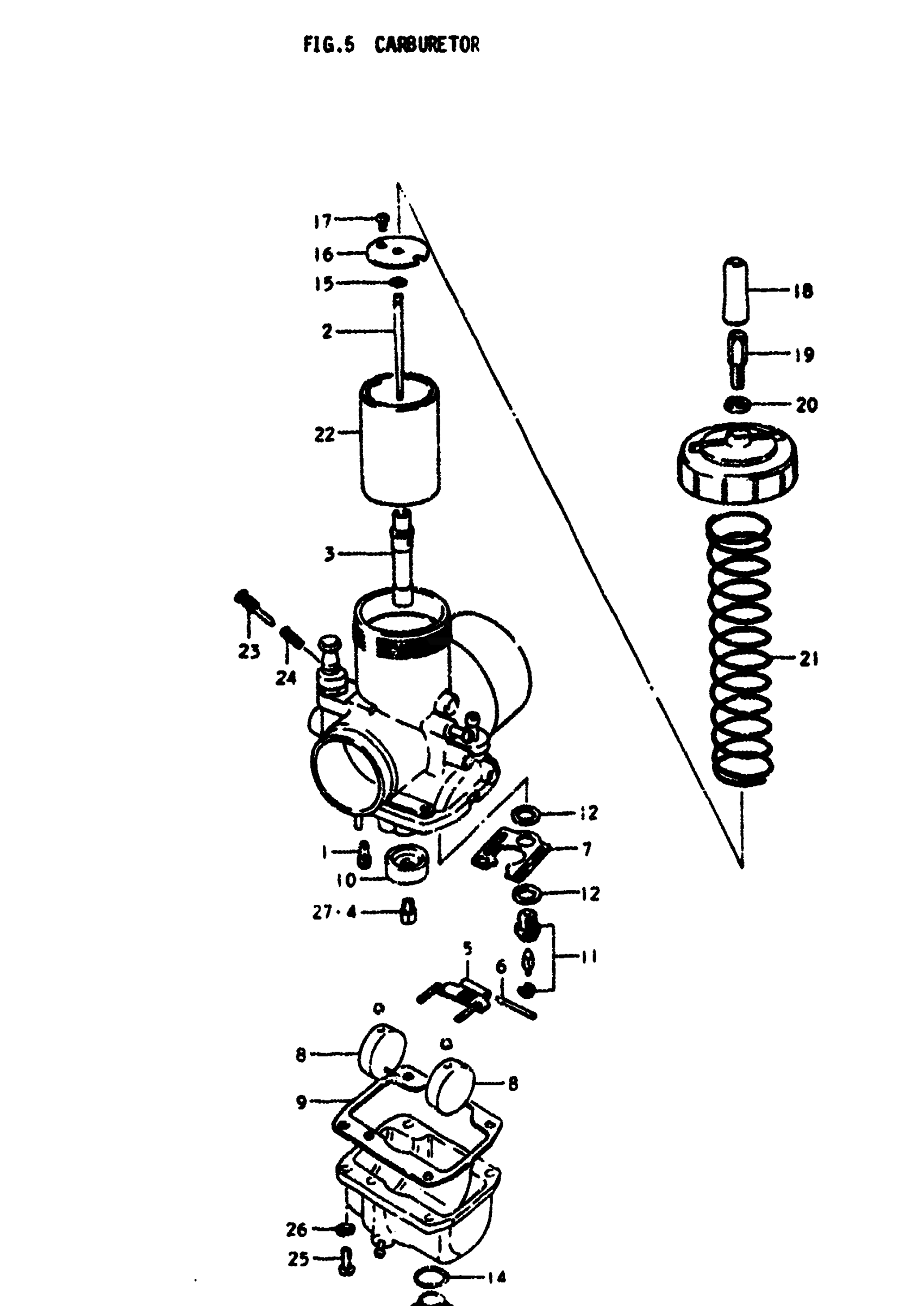

Suzuki RM400 (1978) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 26

13200-41220

Unavailable

1

JET, PILOT | #50

09492-50010

Unavailable

2

NEEDLE, JET | 6FJ6-2

13383-16510

Unavailable

3

NUZZLE, NEEDLE | R-2

09494-00174

Unavailable

4

JET, MAIN (270) | #270 This part replaces 09491-54001.

09491-54002

Unavailable

5

ARM, FLOAT CHAMBER

13253-40010

Unavailable

6

.PIN, FLOAT

13254-01010

$3.62

7

PLATE, FLOAT CHAMBER

13259-40011

Unavailable

8

FLOAT

13252-18620

$21.82

9

GASKET

13251-40600

Unavailable

10

RING

13331-16510

Unavailable

11

VALVE ASSY, NEEDLE This part replaces 13370-40010.

13370-16600

Unavailable

12

GASKET

13392-16600

$1.94

13

PLUG, DRAIN

13247-32210

$15.23

14

O RING This part replaces 13294-40110.

09280-20003

$2.30

15

CLIP, NEEDLE

13394-10010

$5.45

16

PLATE

13581-40010

Unavailable

17

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

18

CAP

13681-33010

$9.32

19

ADJUSTER, CABLE

13577-41612

$7.01

20

NUT

13661-16600

$4.64

21

SPRING, THROTTLE VALVE RETURN

13573-41610

Unavailable

22

VALVE, TOROTTLE | CA:1.5

13551-41112

Unavailable

23

SCREW, PILOT AIR

13269-15010

Unavailable

24

SPRING

13268-01010

$5.28

25

SCREW This part replaces 02112-05168.

02112-05167

$1.97

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

27

JET, MAIN (250) | #250 OPT This part replaces 09491-50003.

09491-50008

Unavailable

27

JET, MAIN | #260 OPT This part replaces 09491-52001.

09491-52006

$10.38

27

JET, MAIN (280) | #280 OPT This part replaces 09491-56001.

09491-56003

Unavailable

27

JET, MAIN (290) | #290 OPT This part replaces 09491-58001.

09491-58002

Unavailable

27

JET, MAIN (300) | #300 OPT This part replaces 09491-60003.

09491-60007

$13.05
