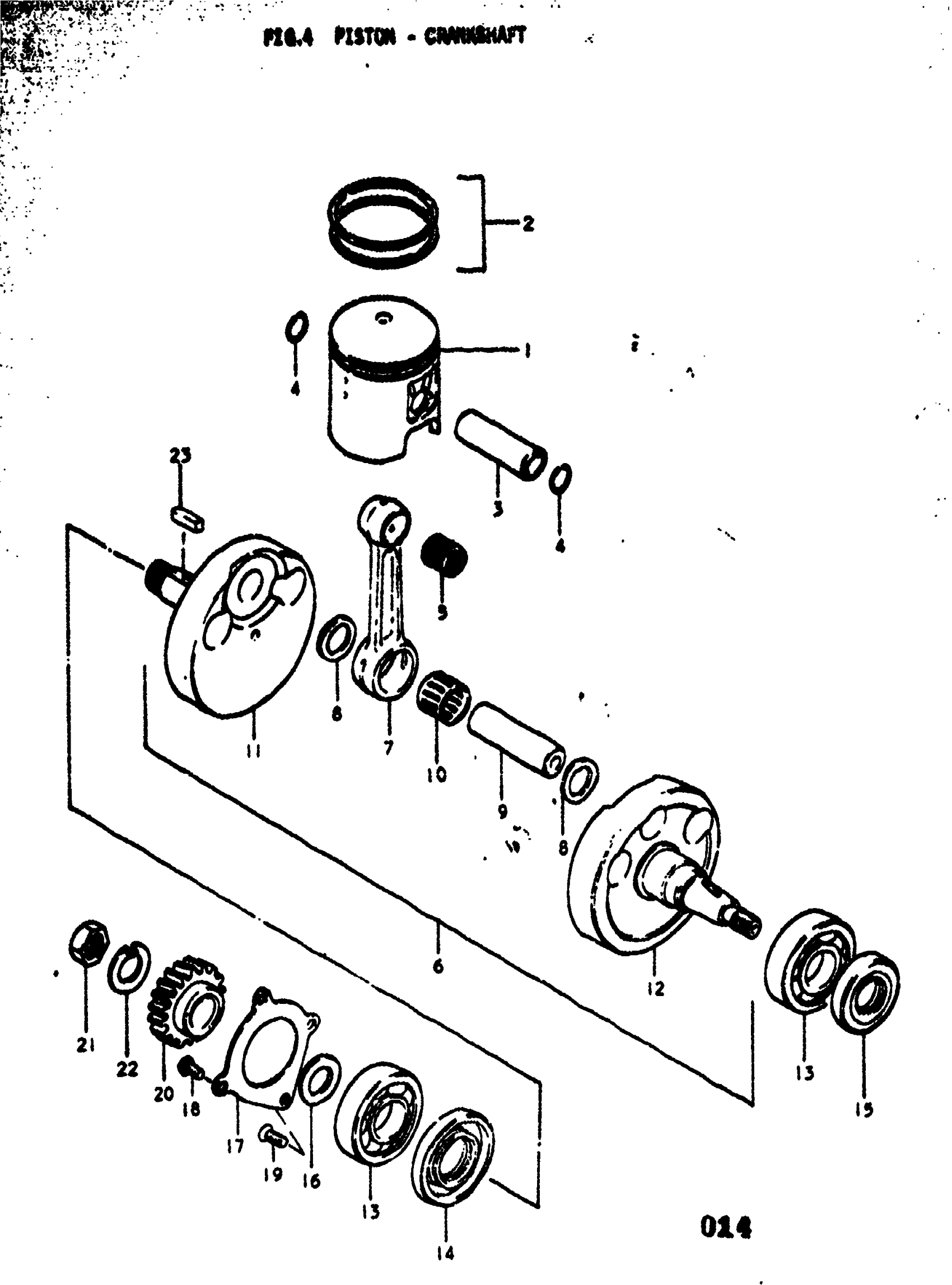

Suzuki RM370 (1977) PISTON - CRANKSHAFT Diagram

#

Description
Price

1

PISTON | A; TO 12110-41202 USED WITH 12140-41211

12110-41200

Unavailable

1

PISTON | B

12110-41202

Unavailable

1

PISTON | A; 06:0.25 TO 12110-41712 USED WITH12140-41711

12110-41710

Unavailable

1

NO DESCRIPTION AVAILABLE | B; OS:0.25 This part replaces 12110-41712.

12110-41202-025

Unavailable

1

NO DESCRIPTION AVAILABLE | A; 06:0.5 TO 12110-41781 USED WITH12140-41781 This part replaces 12110-41780.

12110-41202-050

Unavailable

1

NO DESCRIPTION AVAILABLE | B; OS:0.5 This part replaces 12110-41781.

12110-41202-050

Unavailable

1

NO DESCRIPTION AVAILABLE | A; OS:0.75 TO 12110-41791 USED WITH12140-41791 This part replaces 12110-41790.

12110-41202-075

Unavailable

1

NO DESCRIPTION AVAILABLE | B; OS:0.75 This part replaces 12110-41791.

12110-41202-075

Unavailable

2

RING SET, PISTON | A

12140-41210

Unavailable

2

RING SET, PISTON | B

12140-41211

Unavailable

2

NO DESCRIPTION AVAILABLE | A; OS:0.25 This part replaces 12140-41710.

12140-41210-025

Unavailable

2

NO DESCRIPTION AVAILABLE | B; OS:0.25 This part replaces 12140-41711.

12140-41211-025

Unavailable

2

RING SET, PISTON | A; OS:0.5

12140-41780

Unavailable

2

NO DESCRIPTION AVAILABLE | B; OS:0.5 This part replaces 12140-41781.

12140-41211-050

Unavailable

2

NO DESCRIPTION AVAILABLE | A; OS:0.75 This part replaces 12140-41790.

12140-41210-075

Unavailable

2

RING SET, PISTON | B; OS:0.75

12140-41791

Unavailable

3

PIN, PISTON | A,B This part replaces 12151-15001.

12151-13A00-0A0

$16.02

4

CIRCLIP | A,B

09381-18002

$1.67

5

BEARING, PISTON PIN | A,B This part replaces 09263-18011.

09263-18016

$19.93

6

CRANKSAHFT ASSY | A,B; Includes Item(s) 7 - 12

12200-41200

Unavailable

7

ROD, CONNECTING | A,B

12161-41200

Unavailable

8

THRUST WASHER | A,B

09160-24015

Unavailable

9

PIN,CRANK | A,B This part replaces 12211-41200.

12211-40900

Unavailable

10

BEARING | A,B This part replaces 09263-24007.

09263-24026

$69.90

11

CRANKSHAFT, RH | A,B

12221-41200

Unavailable

12

CRANKSHAFT, LH | A,B

12261-41200

Unavailable

13

BEARING, RH (30x72x19) | A,B This part replaces 08113-63060.

09262-30077

$58.43

14

OIL SEAL, RH | A,B; 38.8x72x11

09289-40004

Unavailable

15

OIL SEAL, LH | A,B; 23x30x9

09283-24001

Unavailable

16

WASHER | A,B

09160-25021

Unavailable

17

RETAINER, BEARING RH | A,B

12541-41200

Unavailable

18

SCREW | A,B This part replaces 02112-06126.

02112-0612A

$1.49

19

SCREW | A,B This part replaces 02122-06128.

02122-06127

$1.84

20

GEAR, PRIMARY DRIVE | A,B; NT:26

21111-41200

Unavailable

21

NUT | A,B

09140-20006

$3.93

22

WASHER | A,B; 20.5x43x1

09166-20005

Unavailable

23

KEY | A,B

09421-07001

Unavailable
