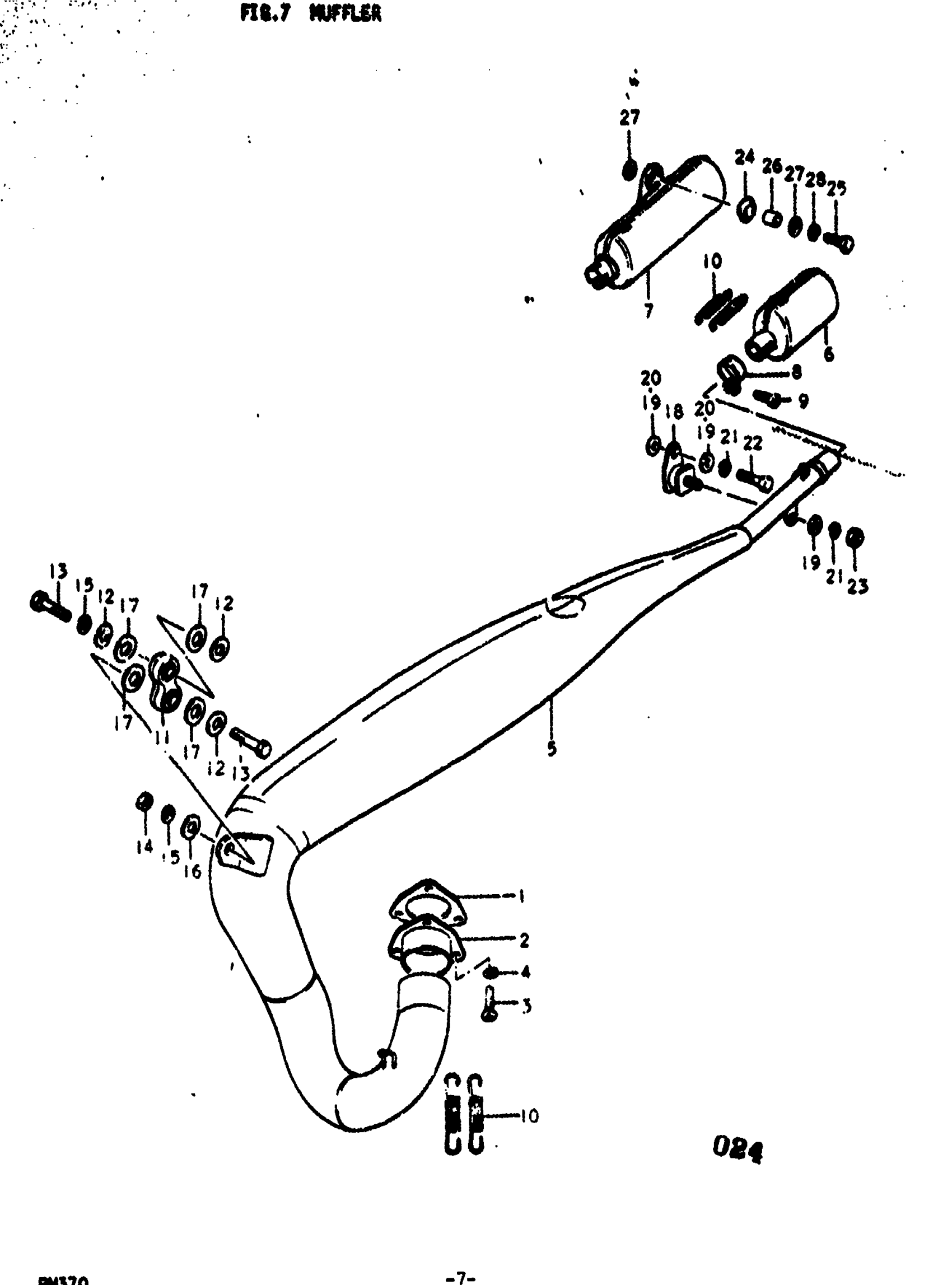

Suzuki RM370 (1977) MUFFLER Diagram

#

Description
Price

1

GASKET,EXH FLNG | A,B This part replaces 14181-41200.

14181-41201-H17

Unavailable

2

FRANGE, EXHAUST PIPE | A,B

14170-16500

Unavailable

3

SCREW | A,B This part replaces 02112-06208.

02112-06207

$1.78

4

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

5

NO DESCRIPTION AVAILABLE | A This part replaces 14310-41200.

14310-41201-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | B This part replaces 14310-41201.

14310-41201-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | A This part replaces 14330-41200.

14301-41810

Unavailable

7

NO DESCRIPTION AVAILABLE | B This part replaces 14330-41201.

14300-41871

Unavailable

8

CLAMP | A,B

09402-33601

Unavailable

9

BOLT | A,B This part replaces 09128-06006.

09128-06057

$1.65

10

SPRING | A,B

09443-11002

$3.10

11

DAMPER, MUFFLER | A,B

14770-40000

Unavailable

12

WASHER | A,B; 8.5x23x1.2 This part replaces 09160-08035.

09160-08130

$2.03

13

BOLT | A,B This part replaces 01122-08358.

01500-0835B

$3.04

14

NUT | A,B This part replaces 08312-11088.

08310-00087

$2.13

15

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13

17

WASHER | A,B

09161-13001

Unavailable

18

DAMPER, CUFFLER SUPPORT REAR | A,B

14770-41201

Unavailable

19

WASHER | A This part replaces 08322-11088.

08322-01087

$2.13

20

WASHER (8.5X20X1.6) | A,B; 8.5x20x1.6 This part replaces 09160-08010.

09160-08054

$1.49

21

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

22

PLUG, DRAIN | A,B This part replaces 01122-08168.

01500-0816B

$2.50

23

NUT | A,B This part replaces 08312-11088.

08310-00087

$2.13

20

WASHER (8.5X20X1.6) | A,B This part replaces 09160-08010.

09160-08054

$1.49

24

DAMPER, MUFFLER 2ND | B

14771-41200

Unavailable

25

BOLT | B This part replaces 01112-06258.

01500-06257

$1.97

26

SPACER, 6.5X10X11 | B This part replaces 09180-06021.

09180-06288

$2.06

27

WASHER, FRONT | B; 6.5x24x1.6 This part replaces 09160-06004.

09160-06134

$1.91

28

LOCK WASHER | B This part replaces 08321-21068.

08321-01067

$2.13
