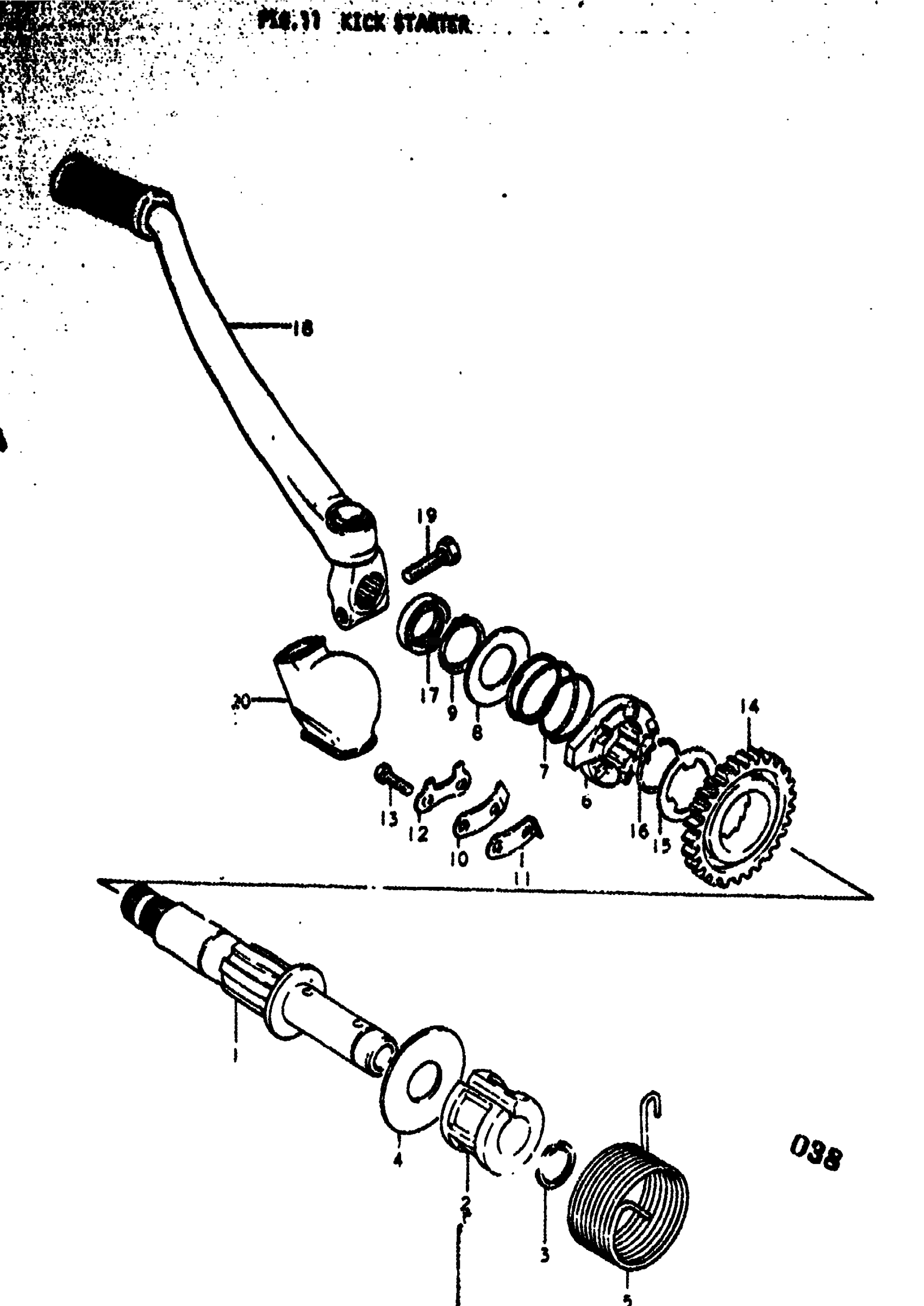

Suzuki RM370 (1977) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | A; TO 26211-41201 This part replaces 26211-41200.

26211-41201

Unavailable

1

SHAFT, KICK STARTER | B

26211-41201

Unavailable

2

GUIDE, SHAFT SPRING | A,BNG This part replaces 26221-40031.

26221-10200

Unavailable

3

CIRCLIP | A,B

09380-17001

$1.98

4

WASHER | A,B; 17x44x2.3

09160-17015

Unavailable

5

SPRING | A,B

09448-45008

$6.99

6

STARTER, KICK | A,B

26231-40000

Unavailable

7

SPRING | A,B

09440-35001

Unavailable

8

WASHER | A,B

08211-20382

Unavailable

9

CIRCLIP | A,B This part replaces 09380-20003.

09380-20007

$2.43

10

BUIDE, KICK STARTER | A,B

26232-41200

Unavailable

11

STOPPER, KICK STARTER | A,B

26233-41200

Unavailable

12

WASHER | A,B

09169-06003

$1.78

13

BOLT, CANISTER | A,B This part replaces 01112-06168.

01500-06167

$1.97

14

GEAR, KICK STARTER DRIVE | A,B; NT:20

26240-41200

Unavailable

15

WASHER LOCK (25.1X31X1.0) | A,B

09167-25012

$3.70

16

CIRCLIP | A,B

09380-25006

Unavailable

17

DUST SEAL, INNER | A,B This part replaces 09285-20002.

09283-20031

$5.24

18

LEVER ASSY,KICK | A This part replaces 26300-40003.

26300-12B05

Unavailable

18

LEVER ASSY,KICK | B This part replaces 26300-41201.

26300-41202

Unavailable

19

BOLT, FRONT | A; TO 09100-08134 This part replaces 09100-08114.

09101-08003

Unavailable

19

BOLT | B

09100-08134

$2.46

20

COVER,KICK STAR | A,B This part replaces 26341-41100.

26341-41102

$7.54
