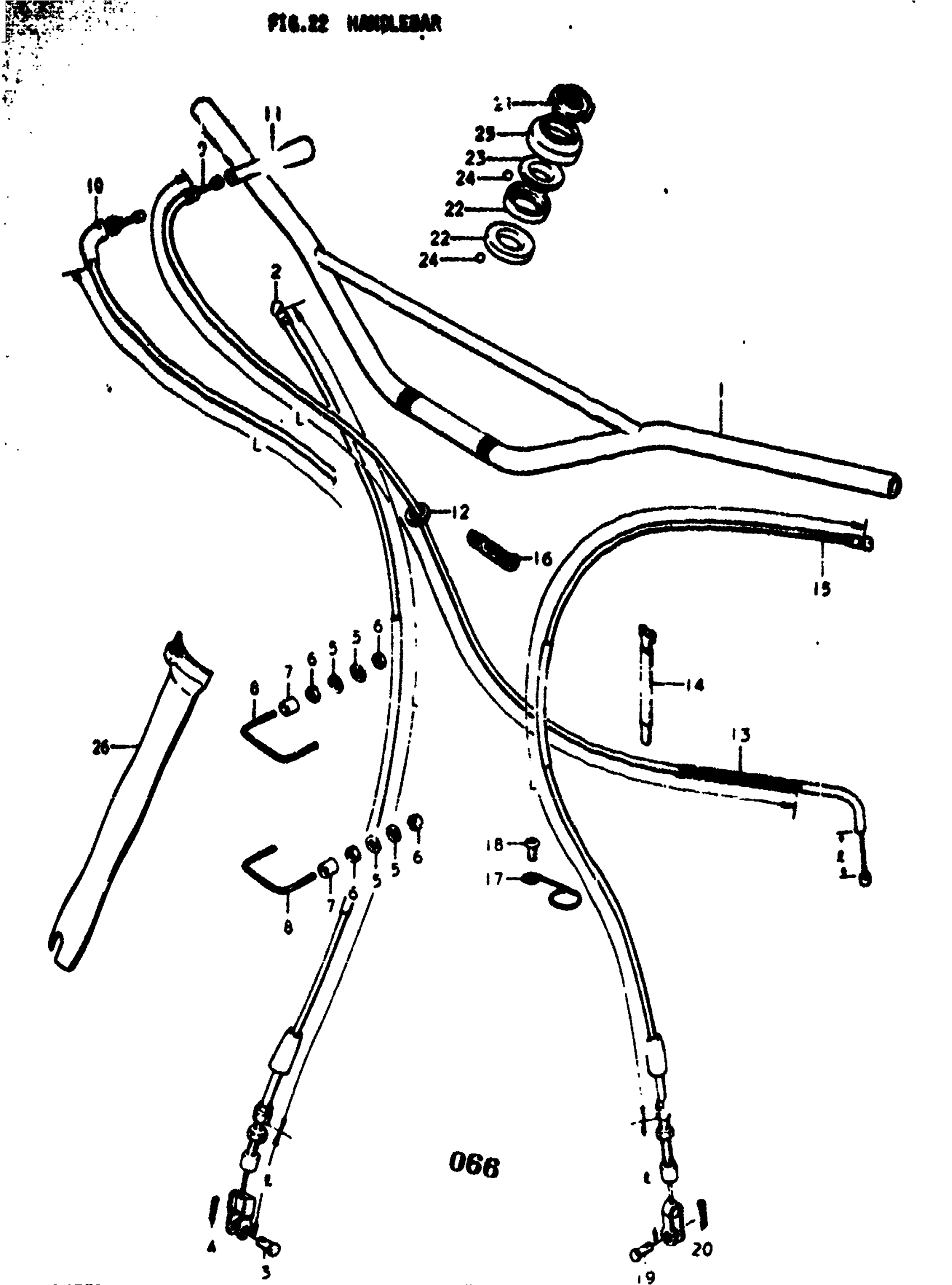

Suzuki RM370 (1977) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | A; TO 56110-41301

56110-41100

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 56110-41301.

56110-41311

Unavailable

2

CABLE ASSY, FRONT BRAKE | A,B; L:1190, l:150 FROM 58100-41600

58100-41601

Unavailable

3

PIN | A,B

09200-06004

$2.20

4

.COTTER PIN | A,B This part replaces 04111-20158.

04111-2015A

$1.49

5

WASHER | A,B This part replaces 08322-21038.

08322-01037

$1.93

6

NUT | A,B This part replaces 08311-11038.

08310-0003B

$2.83

7

ROLLER | A,B

09306-04002

Unavailable

8

GUIDE, CABLE | A,B

58626-41000

Unavailable

9

CABLE ASSY, THROTTLE | A; L:1100, l:140

58310-41100

Unavailable

9

CABLE,THROTTLE | A; L:1100, l:138 FROM 58310-41100 This part replaces 58310-41101.

58300-41X01

Unavailable

10

CABLE,THROTTLE | B; L:1040, l118 This part replaces 58300-41600.

58300-41X01

Unavailable

11

DUST SEAL | A

58333-40000

Unavailable

12

GROMMET | A

09308-12002

$1.99

13

PROTECTOR | A,B

58399-27100

$3.78

14

CLAMP | A,B; L:180 This part replaces 09407-18301.

09407-18302

$2.28

15

CABLE, CLUTCH (L:1050) | A,B; L:1040, l:1 This part replaces 58200-41100.

58200-41301

Unavailable

16

CLAMP | A,B This part replaces 09404-06411.

09404-06039

$1.74

17

CLAMP | A,B

09403-18401

Unavailable

18

SCREW | A,B This part replaces 02112-06128.

02112-06127

$1.84

19

PIN | A,B

09200-06004

$2.20

20

.COTTER PIN | A,B This part replaces 04111-20158.

04111-2015A

$1.49

21

NUT, STEERING STEM | A,B

51631-28000

$17.37

22

INNER RACE, STEERING LOWER | A,B

51611-33002

$13.81

23

OUTER RACE, STEERING UPPER | A,B

51621-30001

Unavailable

24

STEEL BALL | A,B

06111-08003

$1.49

25

DUST SEA | A,B

51643-30000

Unavailable

26

PROTECTOR, FRONT FORK | A,B

51201-40001

Unavailable
