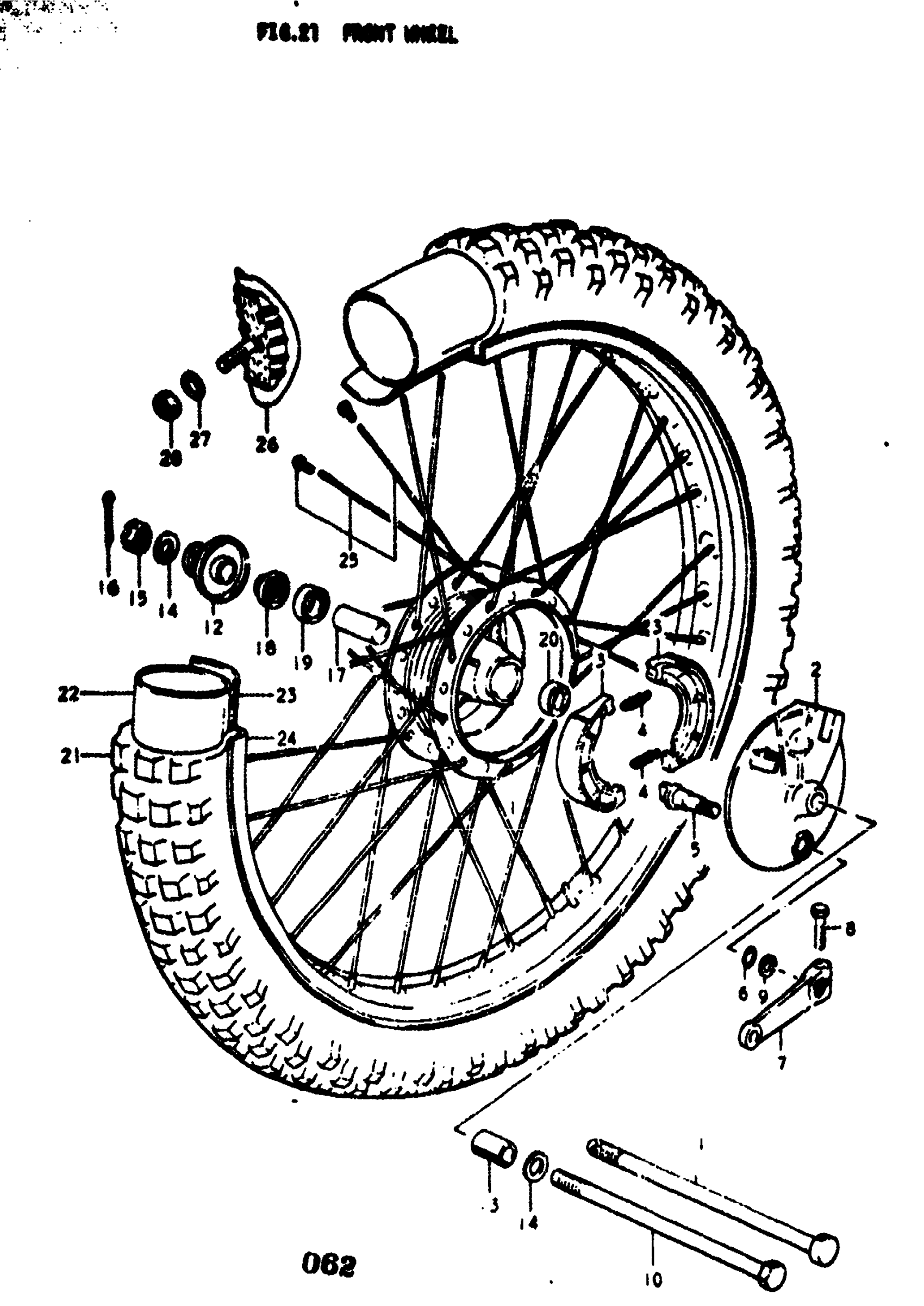

Suzuki RM370 (1977) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 54110-16501.

54110-16502

Unavailable

2

PANEL, FRONT HUB | A,B

54210-41600

Unavailable

3

SHOE SET, BRAKE | A,B This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING | A,B This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | A,B

54441-01002

$18.80

6

DUST SEAL | A,B

09280-12001

$2.90

7

LEVER, BRAKE CAM | A,B

54451-40000

Unavailable

8

BOLT | A,B This part replaces 01112-06208.

01500-06207

$2.28

9

WASHER | A,B; 12.5x20x1

09160-12011

$1.54

10

AXLE, FRONT | A

54711-40001

Unavailable

11

AXLE,FRONT | B This part replaces 64711-43000.

64711-43001

$41.97

12

SPACER, RH | A,B

54740-41600

Unavailable

13

NO DESCRIPTION AVAILABLE | A; TO 54751-41102 This part replaces 54751-41101.

54751-41102

Unavailable

13

SPACER, LH | B; 12x18x34.5

09180-12074

Unavailable

14

WASHER | AB This part replaces 08322-11128.

08322-01127

$1.84

15

NUT | B This part replaces 08314-41128.

08314-4012A

$2.50

16

PIN | B This part replaces 04111-30308.

04111-3030A

$1.49

17

SPACER | A,B

54730-07000

Unavailable

18

SEAL,OIL(17X38X | A,B This part replaces 09284-18001.

09284-18006

$5.10

19

BEARING, RH | A,B

08113-63010

$19.57

20

B1 12X37X12 BEA | A,B This part replaces 08143-63010.

08143-6301B

$19.20

21

TIRE, FRONT (3.00-21) | A; 3.00-21 This part replaces 55100-16511.

55100-14230

Unavailable

21

TIRE, FRONT | B; 3.00-21

55100-41310

Unavailable

22

TIRE, FRONT | A,B; 3.00-21 This part replaces 55200-16510.

55200-16511

$36.73

23

PROTECTOR, INNER TUBE | A,B; 25x21 This part replaces 55261-16510.

55261-14540

$3.83

24

RIM, WHEEL | A; 1.60Ax21 This part replaces 55311-41020.

55311-28322

Unavailable

24

RIM, WHEEL | B; 1.60Ax21

55311-28322

Unavailable

25

NO DESCRIPTION AVAILABLE | A This part replaces 55301-16823.

55300-41811

Unavailable

25

NO DESCRIPTION AVAILABLE | B This part replaces 55300-41810.

55300-41811

Unavailable

26

STOPPER, BEAD | A,B This part replaces 65270-30001.

65270-43D00

$58.75

27

.WASHER | A,B This part replaces 08322-11068.

08322-0106B

$2.26

28

NUT | A,B This part replaces 08312-11088.

08310-00087

$2.13
