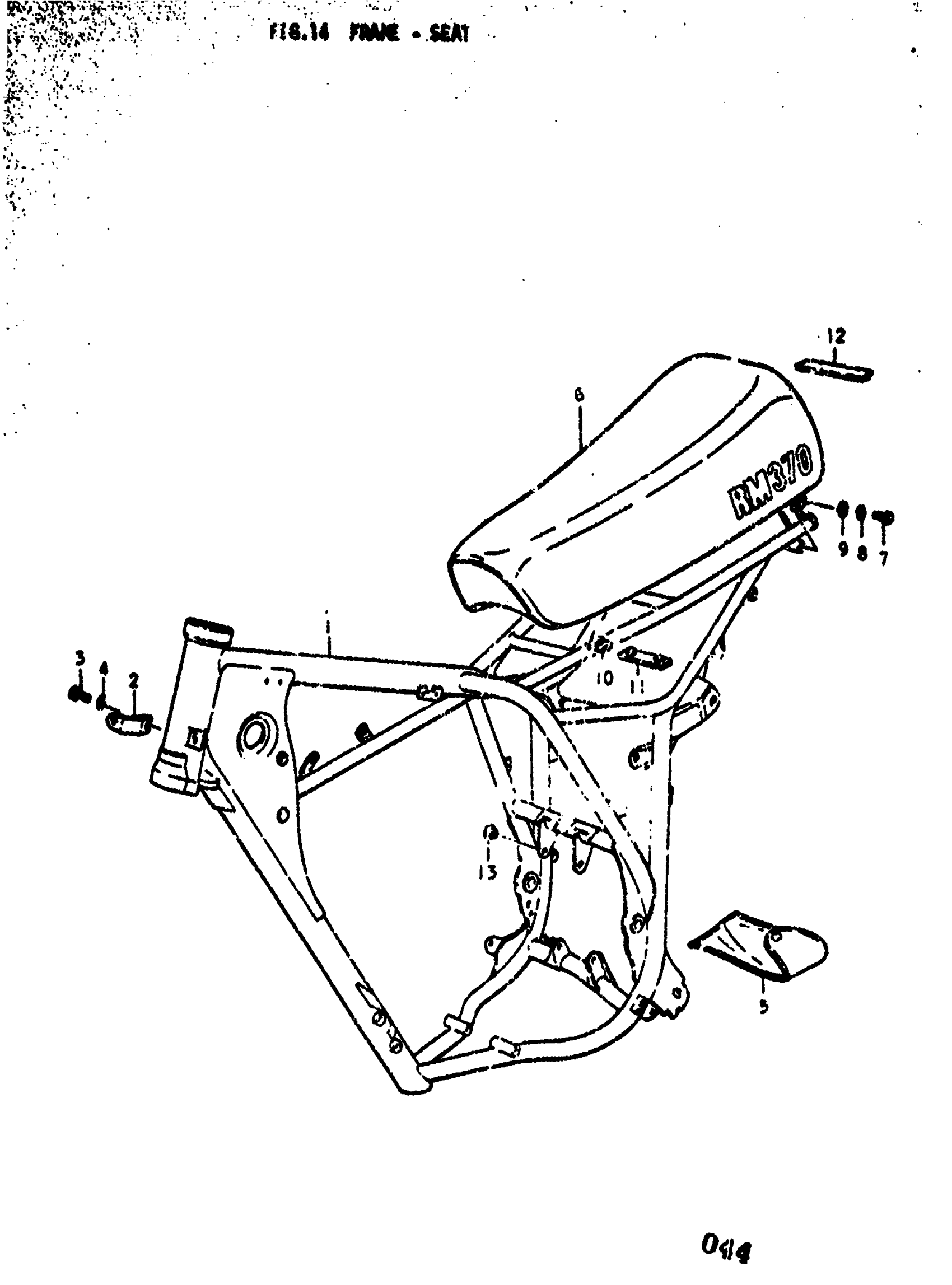

Suzuki RM370 (1977) FRAME - SEAT Diagram

#

Description
Price

1

FRAME | A; TO 41100-41101-019 USED WITH 41999-41100 This part replaces 41100-41100-019.

41100-41101-019

Unavailable

1

FRAME | A; F.NO.13799~

41100-41101-019

Unavailable

1

FRAME | B

41100-41200-019

Unavailable

2

BRACKET, CDI UNIT | A,B

41890-41100

Unavailable

3

BOLT | A,B This part replaces 01112-06128.

01500-06127

$1.97

4

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

5

TOOL SET | A,B

09800-00028

Unavailable

6

NO DESCRIPTION AVAILABLE | A This part replaces 45100-41200-403.

45100-41622-865

Unavailable

6

NO DESCRIPTION AVAILABLE | B This part replaces 45100-41630-865.

45100-41622-865

Unavailable

7

PLUG, DRAIN | A,B This part replaces 01122-08168.

01500-0816B

$2.50

8

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

9

WASHER | A,B This part replaces 08322-21088.

08322-01087

$2.13

10

CUSHION | A

09329-10001

$2.12

11

CUSHION | B

09321-08009

$3.05

12

CUSHION | A,B

45299-41000

Unavailable

13

BUSH | A

41999-41100

Unavailable
