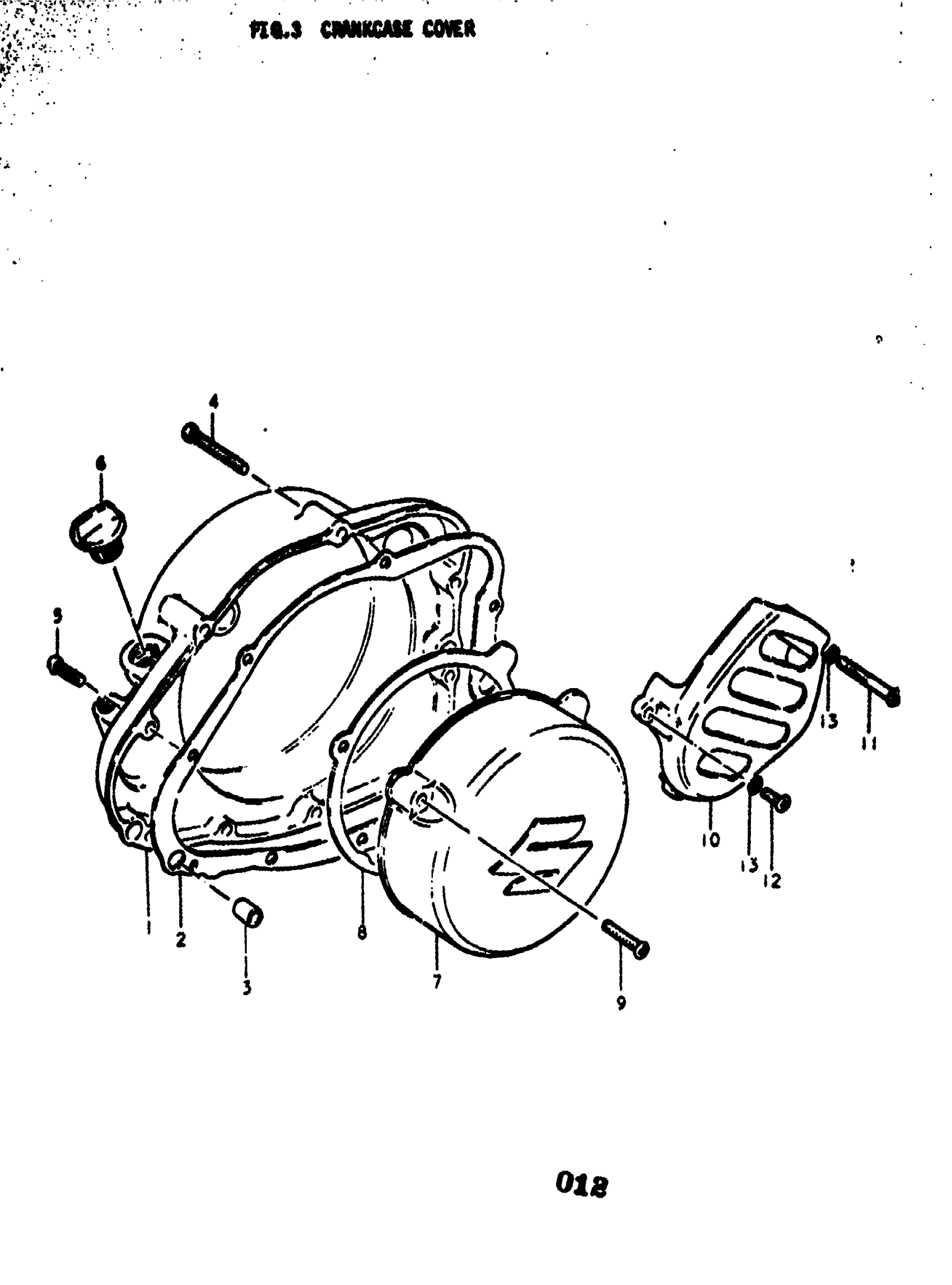

Suzuki RM370 (1977) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | A,B

11341-41200

Unavailable

2

GASKET,CLUTCH C | A,B This part replaces 11482-41200.

11482-41201

Unavailable

3

PIN | A,B This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) | A,B This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW | A,B This part replaces 02112-06208.

02112-06207

$1.78

6

PLUG SET | A,B This part replaces 09259-20003.

09200-20811

$4.02

7

COVER, MAGNETO | A,B

11351-41100

Unavailable

8

GASKET MAGNETO | A,B This part replaces 11483-41100.

11483-41111

Unavailable

9

SCREW | A,B This part replaces 02112-06258.

02112-06257

$1.78

10

COVER, ENGINE SPROCKET | A; TO 11361-41101

11361-41100

Unavailable

10

COVER, ENGINE SPROCKET | B

11361-41101

Unavailable

11

SCREW | A This part replaces 02112-06258.

02112-06257

$1.78

11

SCREW | A,B

02112-06307

$1.97

12

SCREW | A This part replaces 02112-06168.

02112-06167

$1.49

12

SCREW | A,B This part replaces 02112-06208.

02112-06207

$1.78

13

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13
