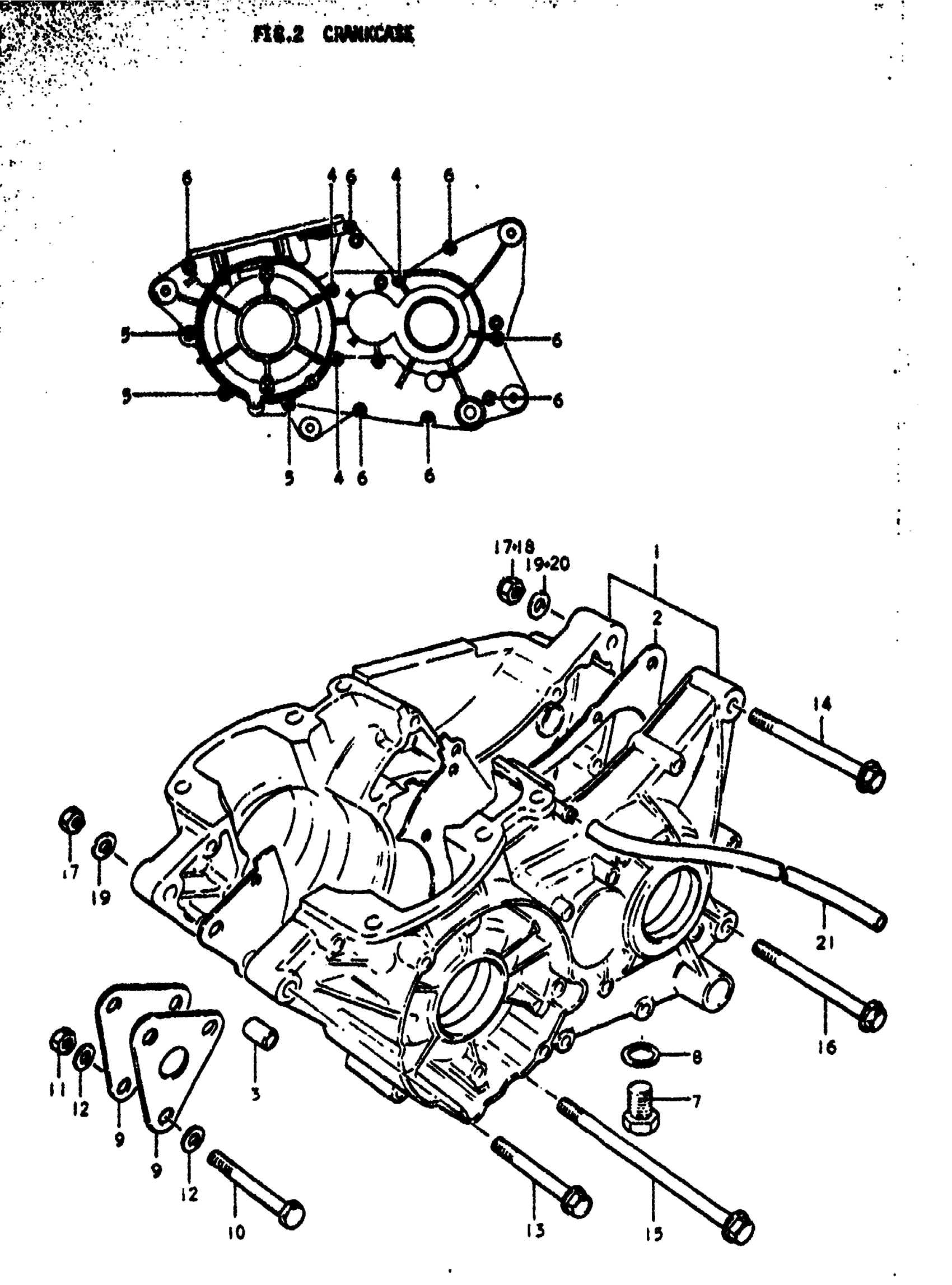

Suzuki RM370 (1977) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | A

11300-41821

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B; F. NO. 13799~ INCLUDES REF. NO. 14-2, 18 AND 20.; Includes Item(s) 2 - 6 This part replaces 11300-41823.

11300-41862

Unavailable

2

GASKET | A,B

11481-41200

Unavailable

3

PIN | A,B This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW | A,B This part replaces 02112-06608.

02112-06607

$2.57

5

6X50 CROSS SCRE | A,B This part replaces 02112-06508.

02112-06507

$1.99

6

SCREW (6X40) | A,B This part replaces 02112-06408.

02112-06407

$1.78

7

PLUG, DRAIN | A,B This part replaces 09247-14007.

09247-14025

$2.79

8

GASKET | A,B; 15.7x19.5x2

09168-14004

$1.83

9

PLATE, ENGINE MOUNTING | A,B This part replaces 41591-41100.

41591-41101

Unavailable

10

BOLT | A; 8x68

09103-08011

Unavailable

10

BOLT | A,B; 8x72 This part replaces 09103-08017.

09103-08099

$5.57

11

NUT | A,B

09159-08020

$1.78

12

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13

13

BOLT, NO.1 | A; 8x68

09103-08011

Unavailable

13

BOLT | A,B; 8x72 This part replaces 09103-08017.

09103-08099

$5.57

14

BOLT, NO.2 | A; 8x88

09103-08010

$31.68

14

BOLT, NO.2 | A,B; 10x90 F.NO. 13799~

09103-10010

Unavailable

15

BOLT (8X145) | A,B; 8x145 This part replaces 09103-08015.

09103-08298

Unavailable

16

BOLT, NO.4 | A,B; 8x80

09103-08016

$29.80

17

NUT | AB

09159-08020

$1.78

18

NUT,M10X1.25X12 | A,B; F.NO. 13799~ This part replaces 09159-10018.

09159-10048

$2.83

19

WASHER | AB This part replaces 08322-11088.

08322-01087

$2.13

20

WASHER | A,B; F.NO. 13799~ This part replaces 08322-11108.

08322-01107

$2.15

21

HOSE | A,B; 5x8x390 This part replaces 09343-05021.

09352-50005-00B

$13.93
