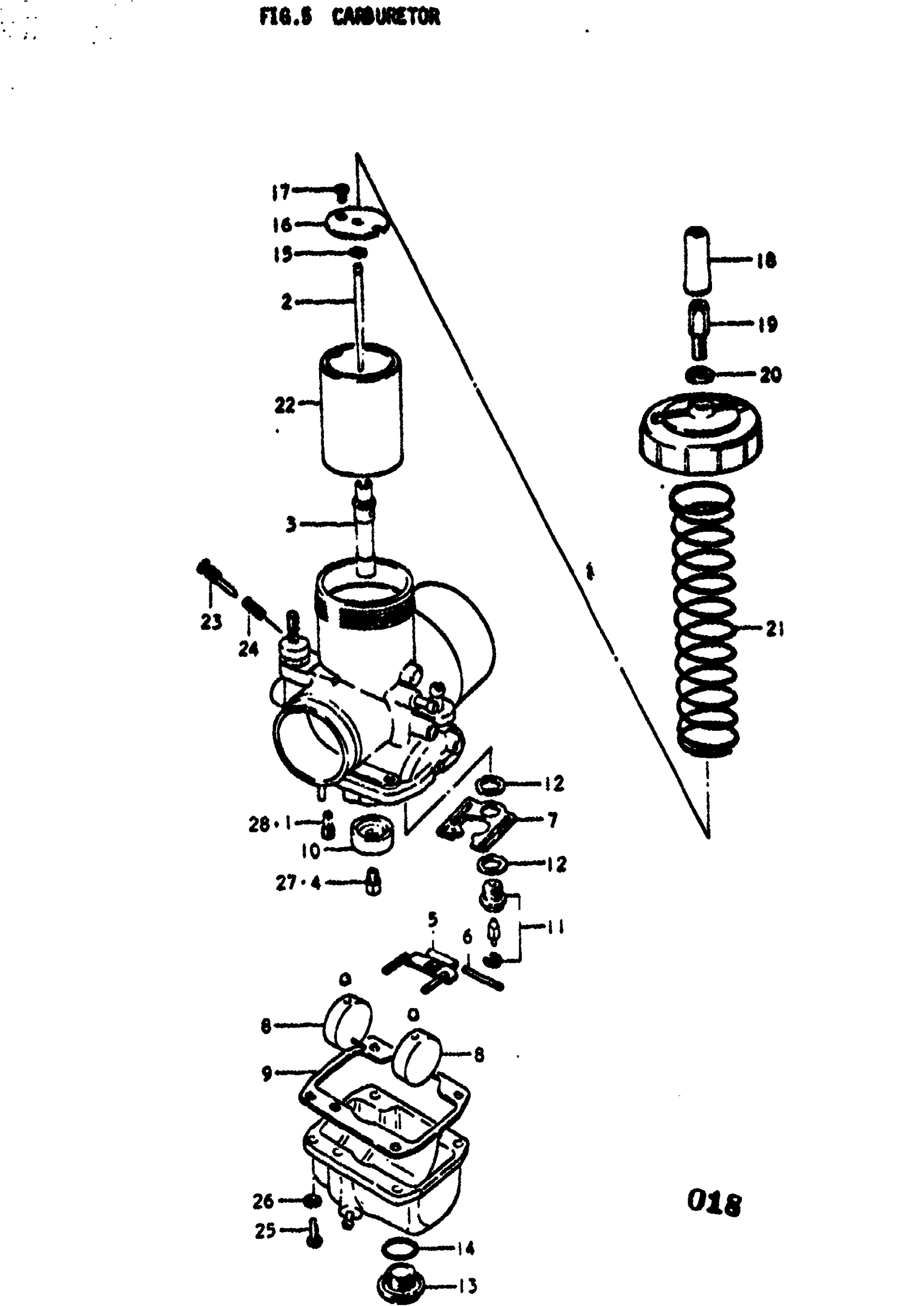

Suzuki RM370 (1977) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR | A; MJ:#340 TO 13200-41211

13200-41210

Unavailable

0

CARBURETOR | A; MJ:#310

13200-41212

Unavailable

0

CARBURETOR ASSY | B; Includes Item(s) 1 - 26 This part replaces 13200-41610.

13200-41660

Unavailable

1

JET, PILOT | A,B; #50

09492-50010

Unavailable

2

NEEDLE, JET | A; 6FJ6-4B; 6FJ6-3

13383-16510

Unavailable

3

NOZZLE, NEEDLE | A; Q-0

09494-00037

Unavailable

3

NOZZLE, NEEDLE | A; Q-4

09494-00165

Unavailable

3

NOZZLE, NEEDLE | B; R-2

09494-00178

Unavailable

4

JET, MAIN (340) | A; #340 This part replaces 09491-68001.

09491-68002

$11.38

4

JET, MAIN (310) | A; #310 This part replaces 09491-62001.

09491-62005

$11.83

4

JET, MAIN (300) | B; #300 This part replaces 09491-60003.

09491-60007

$13.05

5

ARM, FLOAT CHAMBER | A,B

13253-40010

Unavailable

6

.PIN, FLOAT | A,B

13254-01010

$3.62

7

PLATE, FLOAT CHAMBER | A,B

13259-40011

Unavailable

8

FLOAT | A,B

13252-18620

$21.82

9

GASKET | A,B

13251-40600

Unavailable

10

RING | A,B

13331-16510

Unavailable

11

VALVE ASSY, NEEDLE | A,B This part replaces 13370-40010.

13370-16600

Unavailable

12

GASKET | A,B

13392-16600

$1.94

13

PLUG, DRAIN | A,B

13247-32210

$15.23

14

O RING | A,B

13249-41310

$4.40

15

CLIP, NEEDLE | A,B

13394-10010

$5.45

16

PLATE | A,B

13581-40010

Unavailable

17

SCREW | A,B This part replaces 02111-04058.

02112-0406B

$1.55

18

CAP | A,B

13681-33010

$9.32

19

ADJUSTER, CABLE | A; L:25 TO 13577-41612 This part replaces 13577-41611.

13577-41612

$7.01

19

ADJUSTER, CABLE | A,B; L:28

13577-41612

$7.01

20

NUT | A,B

13661-16600

$4.64

21

SPRING, THROTTIE VELVE RETURN | A

13573-40010

Unavailable

21

SPRING, THROTTLE VELVE RETURN | B

13573-41610

Unavailable

22

VALVE, THROTTLE | A,B; CA:1.5

13551-41112

Unavailable

23

SCREW, PILOT AIR | A,B

13269-15010

Unavailable

24

SPRING | A,B

13268-01010

$5.28

25

SCREW | A,B This part replaces 02112-05168.

02112-05167

$1.97

26

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.84

27

JET, MAIN (280) | A,B; OPT #280 This part replaces 09491-56001.

09491-56003

Unavailable

27

JET, MAIN (290) | A,B; OPT #290 This part replaces 09491-58001.

09491-58002

Unavailable

27

JET, MAIN (310) | B; OPT #310 This part replaces 09491-62001.

09491-62005

$11.83

27

JET, MAIN (320) | A,B; OPT #320 This part replaces 09491-64001.

09491-64002

$11.83

27

JET, MAIN (330) | A,B; OPT #330 This part replaces 09491-66001.

09491-66002

$11.38

27

JET, MAIN (350) | A,B; OPT #350 This part replaces 09491-70008.

09491-70011

$11.38

27

JET, MAIN (#360) | A,B; OPT #360 This part replaces 09491-72001.

09491-72011

$11.83

28

JET, PILOT | A,B; OPT #55

09492-55005

Unavailable
