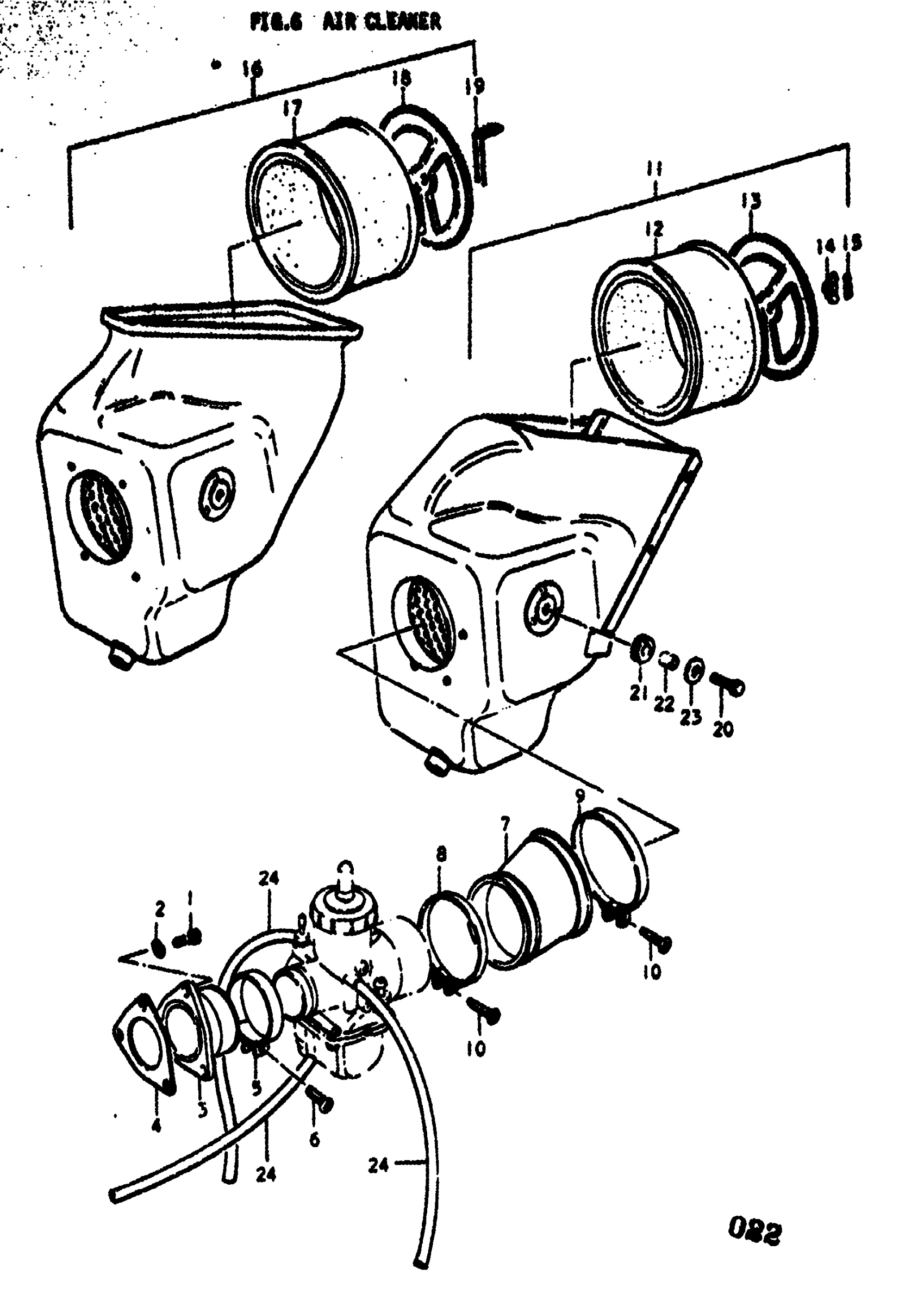

Suzuki RM370 (1977) AIR CLEANER Diagram

#

Description
Price

1

BOLT, CANISTER | A,B This part replaces 01112-06168.

01500-06167

$1.97

2

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

3

PIPE, INTAKE | A,B

13110-40000

Unavailable

4

GASKET, INTAKE PIPE | A,B

13125-40000

Unavailable

5

CLAMP | A,B

09402-50306

$4.77

6

SCREW | A,B This part replaces 02111-05207.

02112-05207

$1.97

7

HOSE, AIR INLET | A This part replaces 13881-41100.

13881-41101

Unavailable

7

HOSE, AIR INLET | A,B; F.NO. 13812~

13881-41101

Unavailable

8

CLAMP | A,B This part replaces 09402-70305.

09402-70306-XC0

$5.55

9

CLAMP | A,B This part replaces 09402-84306.

09402-84306-XC0

Unavailable

10

SCREW | A,B This part replaces 03211-04208.

03211-04207

$1.49

11

CLEANER ASSY, AIR | A; Includes Item(s) 12 - 15

13700-41110

Unavailable

12

FILTER | A

13781-41990

Unavailable

13

CAP | A

13770-40001

Unavailable

14

NUT | A This part replaces 09144-06001.

08317-1206A

$2.40

15

PIN | A

13775-41010

Unavailable

16

CLEANER ASSY, AIR | A,B; F.NO. 13812~; Includes Item(s) 17 - 19

13700-41111

Unavailable

17

FILTER | A,B

13781-41111

Unavailable

18

CAP | A,B

13771-41310

Unavailable

19

SNAP PIN | A,B

13731-41310

Unavailable

20

BOLT, CANISTER | A,B This part replaces 01112-06168.

01500-06167

$1.97

21

CUSHION (8.5X20X8) | A,B This part replaces 09320-08007.

09320-08510

$1.97

22

SPACER (6.5X9X7) | A,B; 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

23

WASHER (6.5X20X1.2) | A,B; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

24

HOSE 4X7X600 | A,B This part replaces 09343-04010.

09352-40706-600

$5.11
