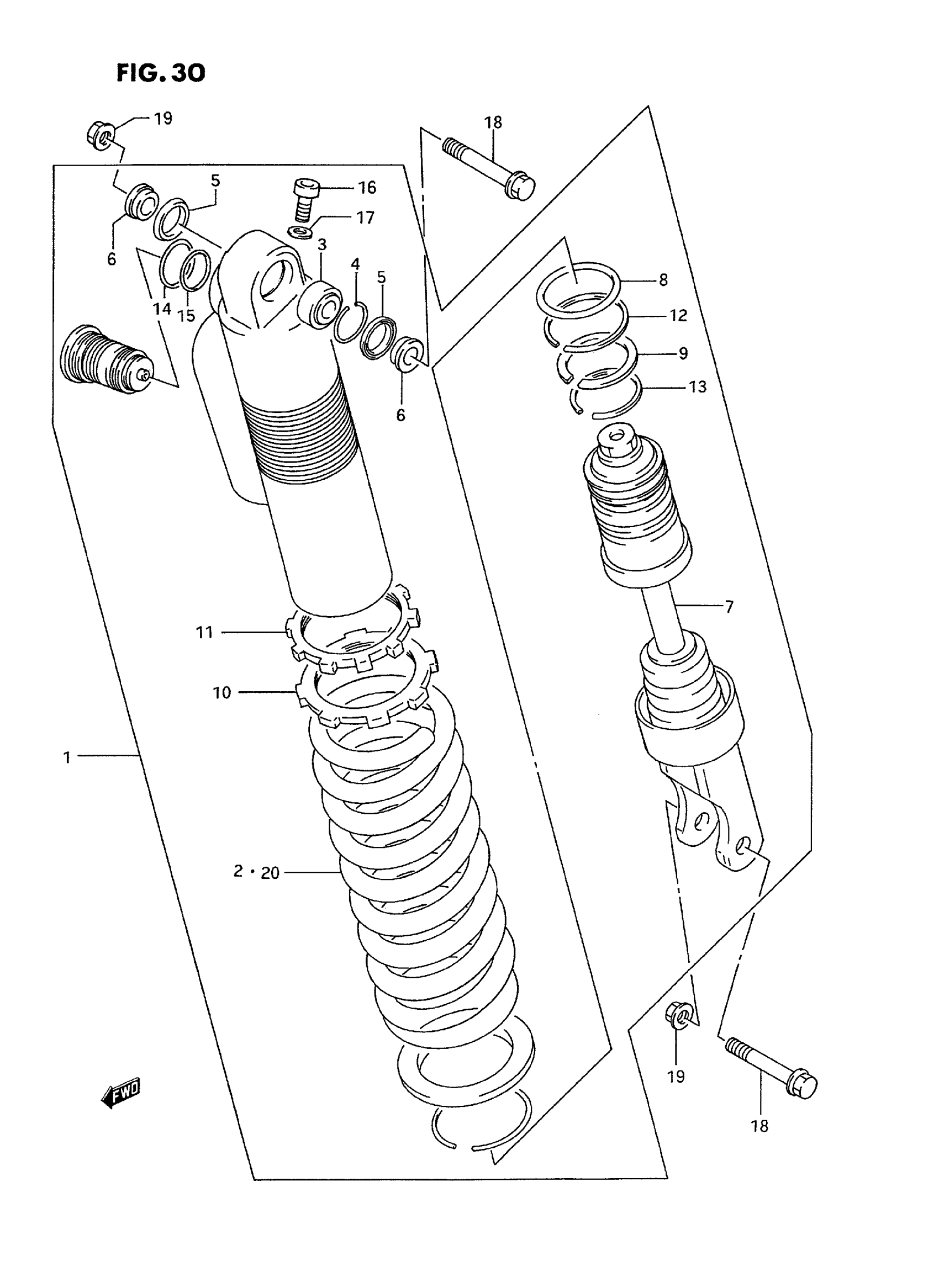

Suzuki RM250S (1995) SHOCK ABSORBER (MODEL P) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | YELLOW; Includes Item(s) 2 - 17

62100-28E10-163

Unavailable

2

SPRING This part replaces 62211-28C70.

62211-28C70-163

Unavailable

3

BEARING, REAR This part replaces 62175-27C20.

62175-43D00

Unavailable

4

STOP RING

62277-27C40

$3.95

5

DUST SEAL

62226-27C40

Unavailable

6

COLLAR

62684-27C40

Unavailable

7

ROD, PISTON

62120-28E00

Unavailable

8

O RING

62153-43D00

Unavailable

9

RING STOPPER SET This part replaces 62291-43D00.

62290-28E00

Unavailable

10

ADJUSTER NUT SET This part replaces 62191-27C40.

62190-28E00

Unavailable

11

NUT

62194-27C40

Unavailable

12

RING, STOPPER

62279-43D00

Unavailable

13

RING, STOPPER

62292-43D00

Unavailable

14

O RING

62131-28E00

$5.00

15

O RING, INNER

51174-43D00

$4.82

16

BOLT This part replaces 62281-43D00.

62281-27C40

Unavailable

17

GASKET

51183-31030

$3.77

18

BOLT, LOWER (10X54) This part replaces 62311-28C00.

62311-28E00

$6.19

19

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

20

NO DESCRIPTION AVAILABLE | OPT This part replaces 62211-28C80.

62211-28C80-163

Unavailable

20

SPRING (SOFT) | OPT

62211-27C90

Unavailable

21

REFER TO FIG.30A(F-4) FOR

SPECIAL NOTE

Unavailable
