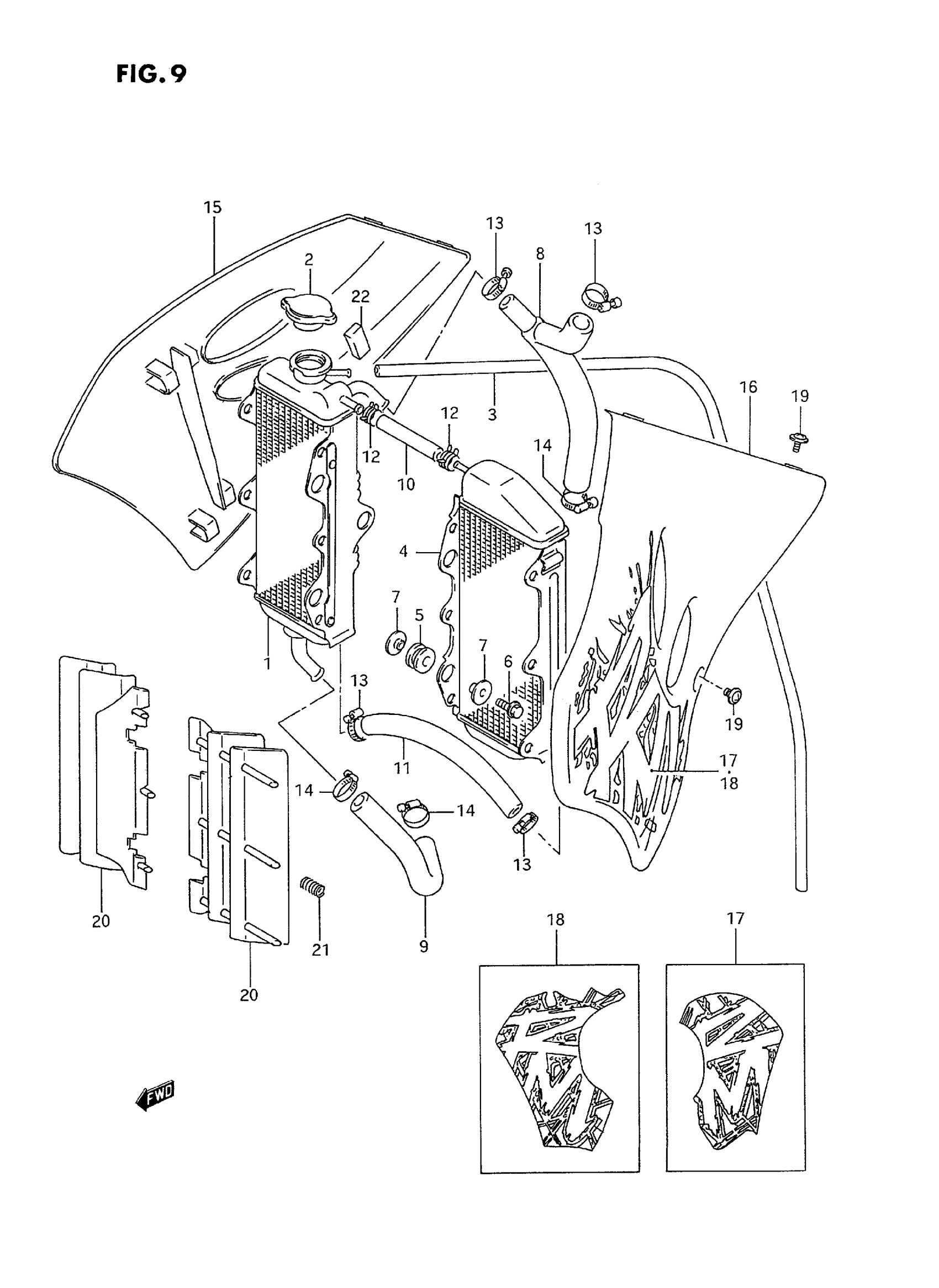

Suzuki RM250S (1995) RADIATOR (MODEL P) Diagram

#

Description
Price

1

RADIATOR, WATER RH This part replaces 17710-28E00.

17710-28E01

Unavailable

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

$42.50

3

HOSE (5X8X2000) | L:1000->650 This part replaces 09351-50801-00A.

09351-50803-00B

$9.10

4

RADIATOR, WATER LH This part replaces 17720-28E01.

17720-28E02

Unavailable

5

CUSHION, RADIATOR

17787-19A00

$3.56

6

BOLT

01547-06257

$2.03

7

WASHER, RADIATOR SUPPORT

17781-26C00

$2.81

8

HOSE, RADIATOR INLET

17851-28E00

Unavailable

9

HOSE, RADIATOR OUTLET

17852-28C10

Unavailable

10

HOSE, BYPASS This part replaces 17855-28E00.

17854-13810

Unavailable

11

HOSE, RADIATOR JOINT,NO.2

17854-28C20

Unavailable

12

CLAMP

09401-13404

Unavailable

13

CLAMP This part replaces 09402-22502.

09402-22511

$7.05

14

CLAMP This part replaces 09402-25502.

09402-28511

$6.88

15

COVER, RADIATOR RH (YELLOW) This part replaces 17761-28E00-25Y.

17761-28E01-25Y

Unavailable

16

COVER, RADIATOR LH (YELLOW) This part replaces 17762-28E00-25Y.

17762-28E01-25Y

Unavailable

17

EMBLEM, RADIATOR COVER RH

68661-28E00-A4H

Unavailable

18

EMBLEM, RADIATOR COVER LH

68671-28E00-A4H

Unavailable

19

SCREW

09136-06002

$2.44

20

LOUVER, RADIATOR

17831-26C00

$19.41

21

SPRING This part replaces 09440-11024.

09440-11024-XC0

$3.79

22

CUSHION, RADIATOR COVER

17798-28E00

Unavailable

23

REFER TO FIG.9A(C-7) FOR

SPECIAL NOTE

Unavailable
