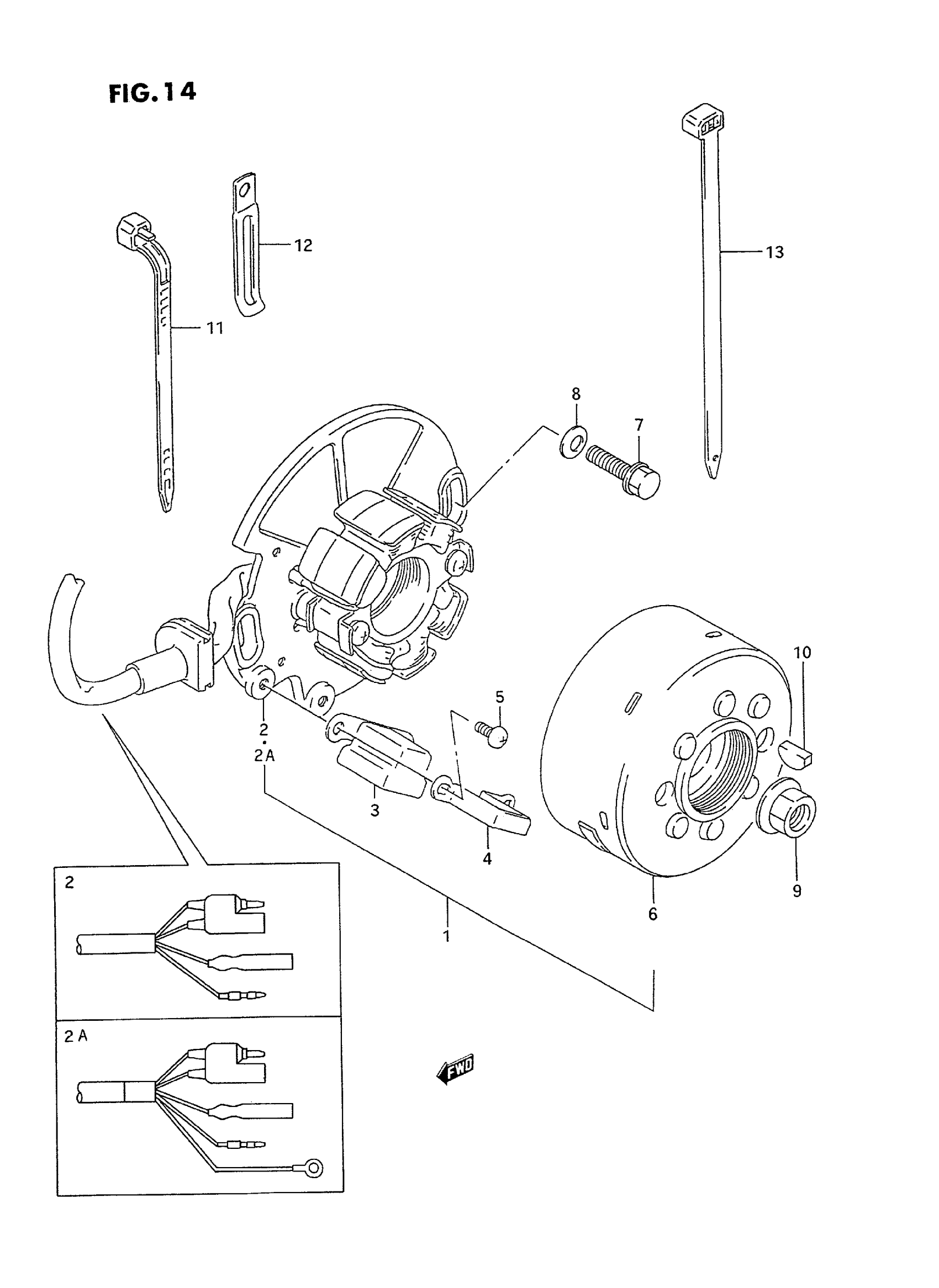

Suzuki RM250S (1995) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL P

32100-28C03

Unavailable

1

MAGNETO ASSY | MODEL R

32100-28E00

Unavailable

1

MAGNETO ASSY | MODEL S; Includes Item(s) 2 - 6 This part replaces 32100-43D10.

32100-43D11

Unavailable

2

STATOR ASSY | MODEL P

32101-28C03

Unavailable

2A

STATOR ASSY | MODEL R

32101-28E00

Unavailable

2B

STATOR ASSY | MODEL S

32101-43D10

Unavailable

3

COIL, PULSER This part replaces 32160-27C00.

32150-05D00

Unavailable

4

HOLDER, PICK UP

32157-27C01

Unavailable

5

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

6

ROTOR | MODEL P/R

32102-28C00

Unavailable

6

ROTOR | MODEL S This part replaces 32102-43D10.

32102-43D11

Unavailable

7

BOLT | MODEL P/R

01547-06207

$2.01

7

..BOLT | MODEL S This part replaces 01547-06203.

01547-0620B

$2.45

8

WASHER

09164-06003

$2.07

9

NUT, WHEEL SET | MODEL P This part replaces 08316-16108.

08316-10107

$2.39

9

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.66

10

KEY | MODEL P/R This part replaces 08341-31049.

09420-04008

$3.42

10

KEY | MODEL S

09420-04008

$3.42

11

CLAMP (L:125)

09407-14403

$2.26

12

CLAMP This part replaces 09404-05404.

09404-06039

$1.74

13

CLAMP (L:300)

09407-30401

$5.72

13

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

13

CLAMP (L:235)

09407-25401

$4.66
