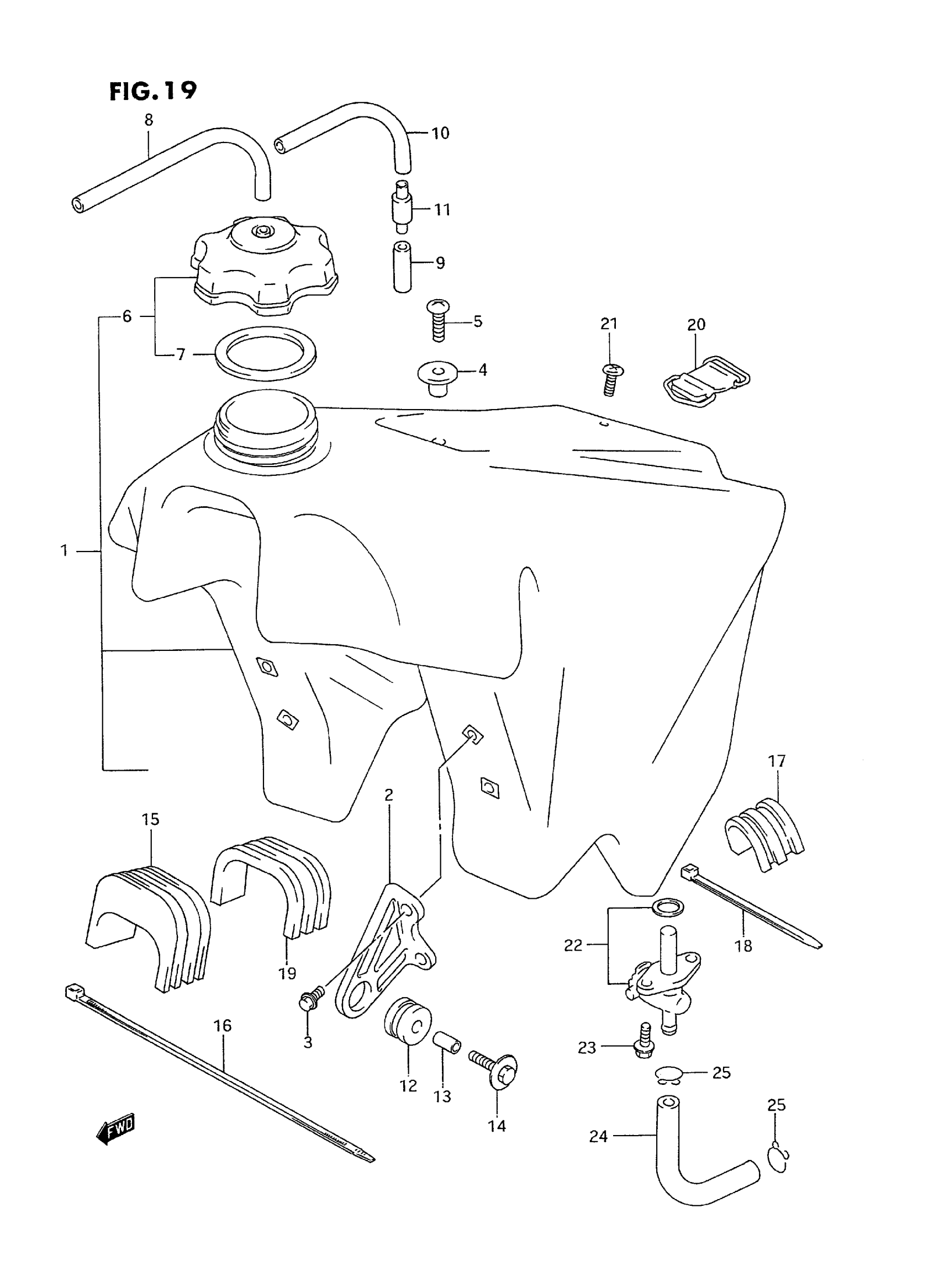

Suzuki RM250S (1995) FUEL TANK (MODEL P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 44100-43860-1TD.

44100-43861-1TD

Unavailable

2

BRACKET, FRONT RH

44131-28E00

Unavailable

2

BRACKET, FRONT LH

44132-28E00

Unavailable

3

BOLT, FRONT

01547-06127

$1.65

4

HOOK, SEAT FR | MODEL P This part replaces 44132-27C00.

44132-27C01

$17.17

4

HOOK, SEAT FR | MODEL R

44132-27C01

$17.17

5

SCREW, HOOK

02142-06207

$1.49

6

CAP SET,FUEL TA This part replaces 44200-27860.

44200-27871

$22.96

7

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

8

HOSE,5X10X600 | MODEL P This part replaces 09352-50823-300.

44421-13ER0

$10.06

9

HOSE,5X10X600 | MODEL R This part replaces 09352-50823-300.

44421-13ER0

$10.06

10

HOSE,5X10X600 | MODEL R This part replaces 09352-50823-300.

44421-13ER0

$10.06

11

PLUG | MODEL R

44240-28E00

Unavailable

12

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

13

SPACER This part replaces 09180-06062.

09180-06268

$2.19

14

BOLT

09118-06109

Unavailable

15

CUSHION, UPPER NO.2 | MODEL P This part replaces 44541-28E00.

44541-28E01

Unavailable

15

CUSHION, UPPER NO.1 | MODEL R

44541-28E01

Unavailable

16

CLAMP

09407-30402

$4.11

17

CUSHION, UPPER REAR

44542-26C00

$9.33

18

CLAMP

09407-14407

$3.57

19

CUSHION, UPPER NO.2 | MODEL P

44541-43D10

Unavailable

19

CUSHION, UPPER NO.1 | MODEL R This part replaces 44541-43D20.

44541-43D10

Unavailable

20

BAND, REAR

44560-27C00

$7.69

21

SCREW | MODEL P This part replaces 02142-06164.

02142-0616A

$1.49

21

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

22

COCK ASSY, FUEL | MODEL P This part replaces 44300-28E00.

44300-28E10

$74.53

22

COCK ASSY, FUEL | MODEL R This part replaces 44300-28E01.

44300-28E10

$74.53

23

SCREW This part replaces 02112-36168.

02112-36167

$2.34

24

HOSE(6.5X11.5X6 This part replaces 09354-65113-300.

09355-65001-600

$12.00

25

CLIP

09401-11101

$2.36

26

REFER TO FIG.19A(D-9) FOR

SPECIAL NOTE

Unavailable
