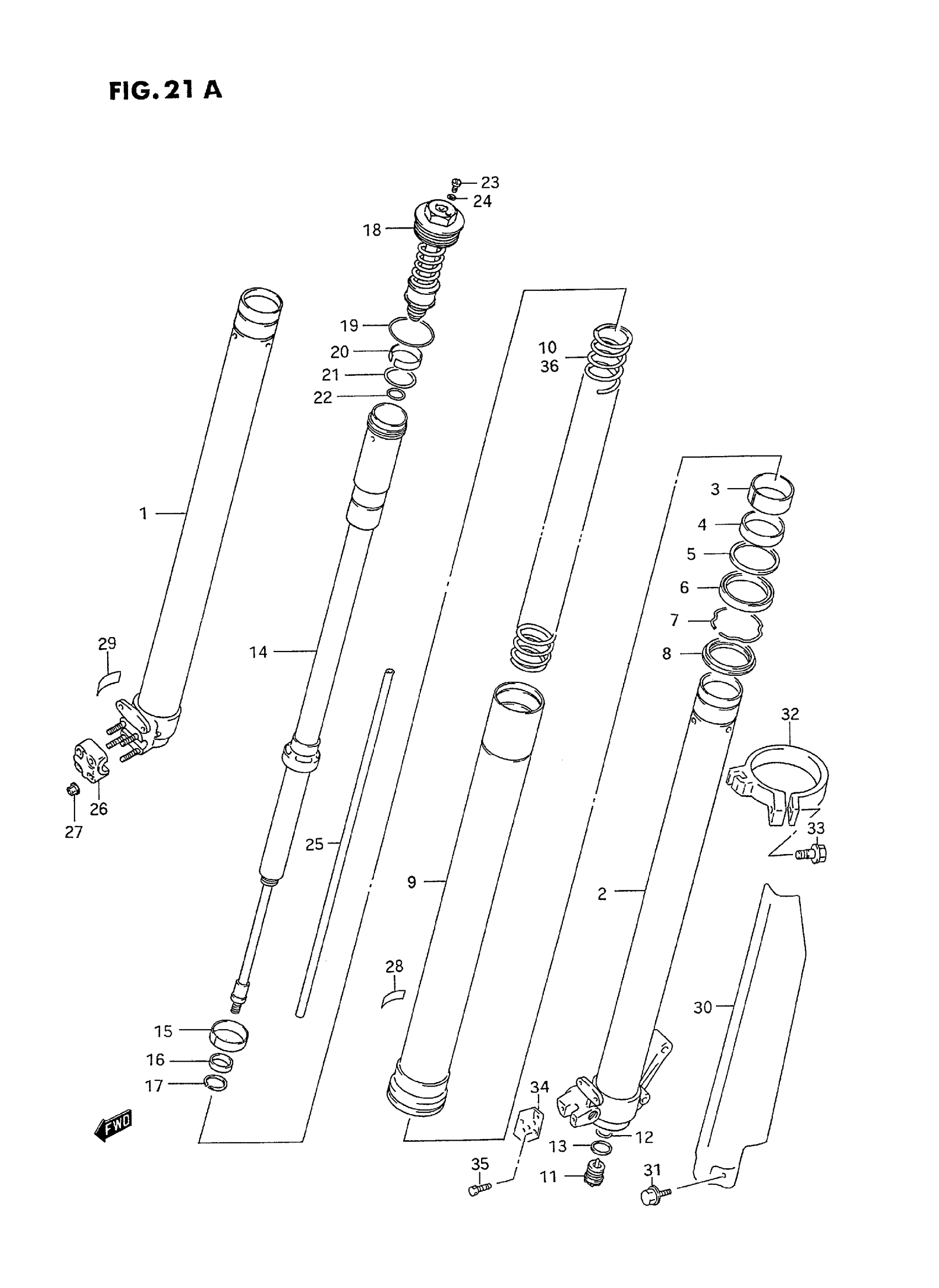

Suzuki RM250S (1995) FRONT DAMPER (MODEL R/S) Diagram

#

Description
Price

DAMPER ASSY, RH | MODEL R

51103-28E30

Unavailable

DAMPER ASSY, RH | MODEL S

51103-28E50

Unavailable

DAMPER ASSY, LH | MODEL R

51104-28E30

Unavailable

DAMPER ASSY, LH | MODEL S; Includes Item(s) 1 - 29

51104-28E50

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 51110-28E30.

51110-28E31

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 51110-28E40.

51110-28E41

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 51120-28E30.

51120-28E31

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 51120-28E40.

51120-28E41

Unavailable

3

BUSH, SLIDE

51121-27C40

Unavailable

4

BUSH, GUIDE | MODEL R

51167-28E30

Unavailable

4

BUSH, GUIDE | MODEL S

51167-28E40

Unavailable

5

SPACER, SEAL

51158-27C40

$8.53

6

SEAL, OIL

51153-28E30

$32.37

7

RING, OIL SEAL STOPPER

51156-27C40

$5.19

8

SEAL, DUST | MODEL R This part replaces 51173-28E30.

51173-28E40

$30.86

8

SEAL, DUST | MODEL S

51173-28E40

$30.86

9

TUBE, OUTER | MODEL R

51130-28E30

Unavailable

9

TUBE, OUTER | MODEL S

51130-28E40

Unavailable

10

SPRING, MAIN | MODEL R This part replaces 51171-28E30.

51171-28E40

Unavailable

10

SPRING, MAIN | MODEL S

51171-28E40

Unavailable

11

BOLT, CENTER

51170-28E30

Unavailable

12

GASKET

51148-14D00

Unavailable

13

O RING

51177-28E30

Unavailable

14

DAMPER, CARTRIDGE | MODEL R

51190-28E30

Unavailable

14

DAMPER, CARTRIDGE | MODEL S

51190-28E50

Unavailable

15

BUSH, DAMPER

51122-28E30

Unavailable

16

VALVE, OIL LOCK | MODEL R

51157-28E30

Unavailable

16

VALVE, OIL LOCK | MODEL S

51157-28E50

Unavailable

17

RING, VALVE STOPPER

51154-28E30

Unavailable

18

BOLT, FORK | MODEL R

51351-28E30

Unavailable

18

BOLT, FORK | MODEL S

51351-28E50

Unavailable

19

O RING, UPPER

51117-27C40

$6.22

20

BUSH, FORK BOLT SLIDE

51123-28E30

$15.22

21

O RING, CENTER

51174-28E30

Unavailable

22

O RING This part replaces 51175-28E30.

51175-03B30

$6.05

23

BOLT, PLUG

51357-28E30

$14.37

24

...O-RING

51358-28E30

$4.28

25

ROD, PUSH

51191-28E30

Unavailable

26

HOLDER, AXLE RH

51132-27C40

Unavailable

27

NUT

08319-31067

$2.03

28

LABEL

51145-28E30

Unavailable

29

LABEL

51149-28E30

Unavailable

30

PROTECTOR, RH | MODEL R This part replaces 51501-29E10.

51501-29E00

$123.14

30

PROTECTOR, RH | MODEL S

51501-29E00

$123.14

30

PROTECTOR, LH

51511-29E00

Unavailable

31

BOLT

01500-06107

$2.06

32

GUIDE, PROTECTOR | MODEL R

51210-43D00

Unavailable

32

GUIDE, PROTECTOR | MODEL S

51210-28E00

Unavailable

33

BOLT | MODEL R This part replaces 58628-43D00.

01547-06207

$2.01

33

BOLT, PROTECTOR | MODEL S

01500-06207

$2.28

34

GUIDE, HOSE LH

59248-27C40

Unavailable

35

BOLT | MODEL R This part replaces 59249-27C40.

01500-05087

$2.13

35

BOLT, GUIDE | MODEL S

01500-05087

$2.13

36

SPRING, MAIN | OPT

51171-28E40

Unavailable
