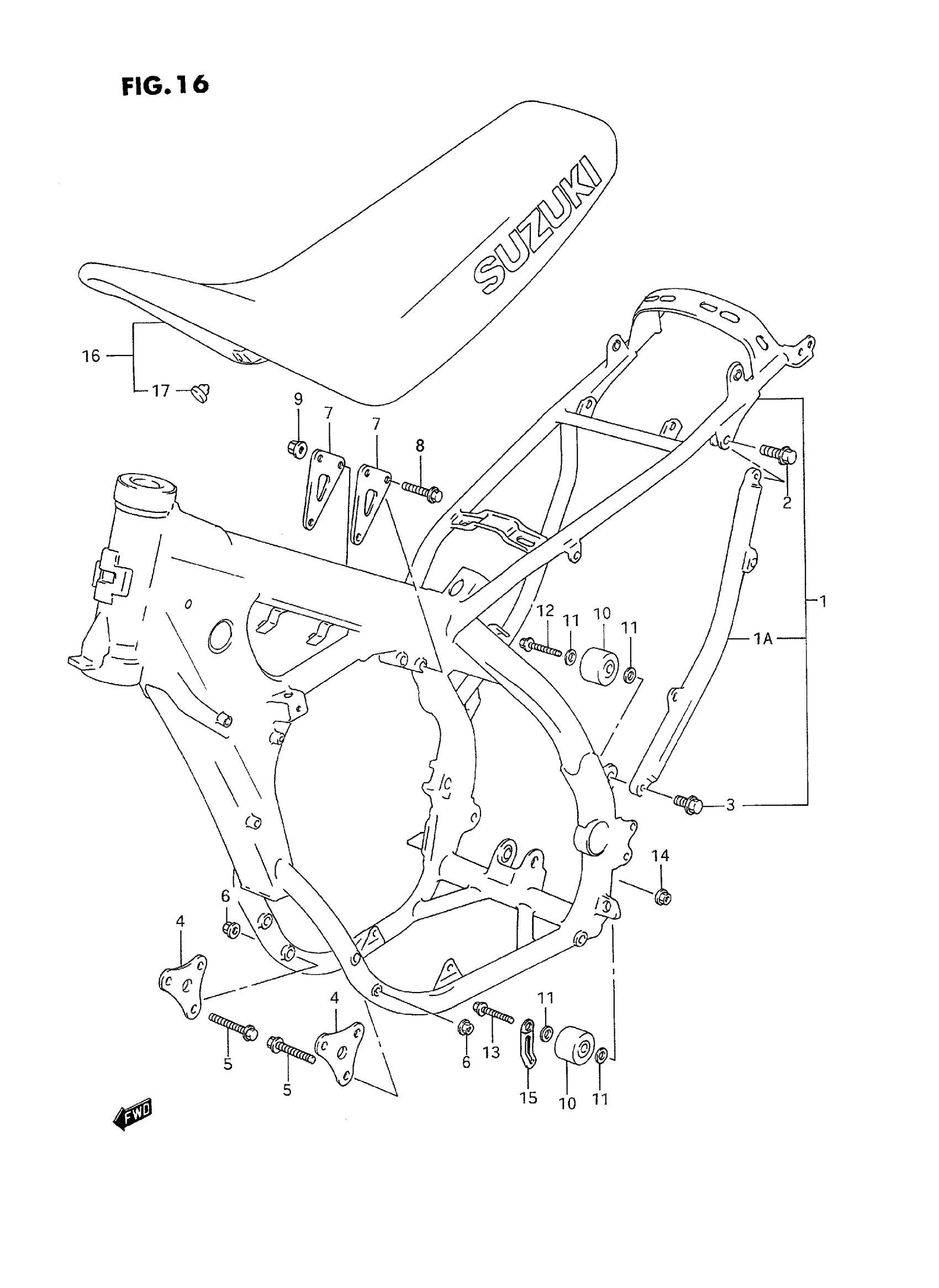

Suzuki RM250S (1995) FRAME - SEAT (MODEL P) Diagram

#

Description
Price

1

FRAME SET (CHARCOAL) | Includes Item(s) 1A - 3

41100-28870-24K

Unavailable

1A

TUBE, FRAME SIDE LH

41670-28E01

Unavailable

2

BOLT, REAR LH This part replaces 01124-08208.

01550-08207

$2.69

3

BOLT M8X16 This part replaces 01127-08168.

01550-08167

$2.85

4

PLATE, ENGINE MOUNT FRONT

41991-28C00

Unavailable

5

.BOLT (8X55) This part replaces 09103-08274.

09103-08339

$3.49

6

NUT

09159-08034

$1.62

7

PLATE, ENGINE MOUNT UPPER

41993-28E00

Unavailable

8

BOLT

09103-08043

$3.18

9

NUT

09159-08067

$5.57

10

ROLLER, CHAIN CONTROL

43910-27C11

$64.67

11

WASHER

08211-08121

$1.99

12

BOLT, UPPER

09103-08083

$3.70

13

BOLT, LOWER

09103-08043

$3.18

14

NUT, LOWER

08319-31087

$2.32

15

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

16

SEAT ASSY | Includes Item(s) 17 This part replaces 45100-28E00-A5K.

45100-28E12-D6Z

Unavailable

17

CUSHION

09329-10001

$2.12

18

REFER TO FIG.16A(D-5) FOR

SPECIAL NOTE

Unavailable
