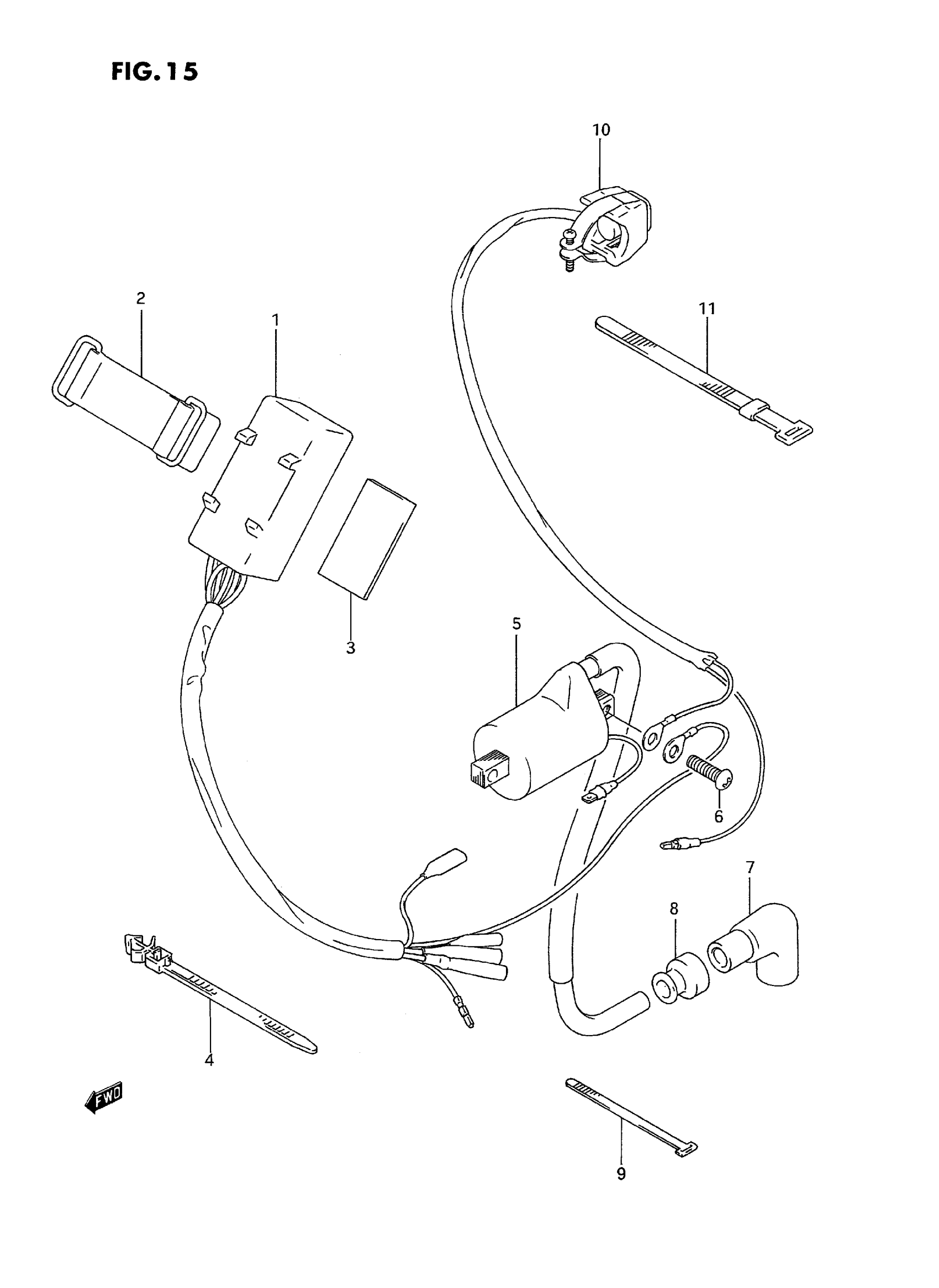

Suzuki RM250S (1995) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT | MODEL P

32900-28E00

$877.65

1

CDI UNIT | MODEL R

32900-28E10

Unavailable

1

CDI UNIT | MODEL S

32900-28E20

Unavailable

2

BAND (L:65) | MODEL P/R

32942-14111

$8.62

2

BAND (L:80) | MODEL S

32942-14301

$11.89

3

PROTECTOR | CUT 50X30X3

33651-37000

$4.48

4

CLAMP

09407-11402

$1.80

5

COIL ASSY, IGNITION

33410-43D00

Unavailable

6

SCREW | MODEL P

09129-06003

Unavailable

6

SCREW | MODEL R/S This part replaces 02112-36203.

02112-3620A

$2.06

7

CAP, SPARK PLUG | MODEL P This part replaces 33510-41111.

33510-20A02

$24.39

7

CAP, SPARK PLUG | MODEL R/S This part replaces 33510-20A00.

33510-20A02

$24.39

8

SEAL,HIGH TENSION CORD (SIDE) | MODEL R/S

33542-38B00

$4.34

9

CLAMP

09407-09402

$2.45

10

SWITCH ASSY, ENGINE STOP This part replaces 37820-27C00.

37820-14X50

$48.54

11

CLAMP (L:120)

09407-12402

$3.04
