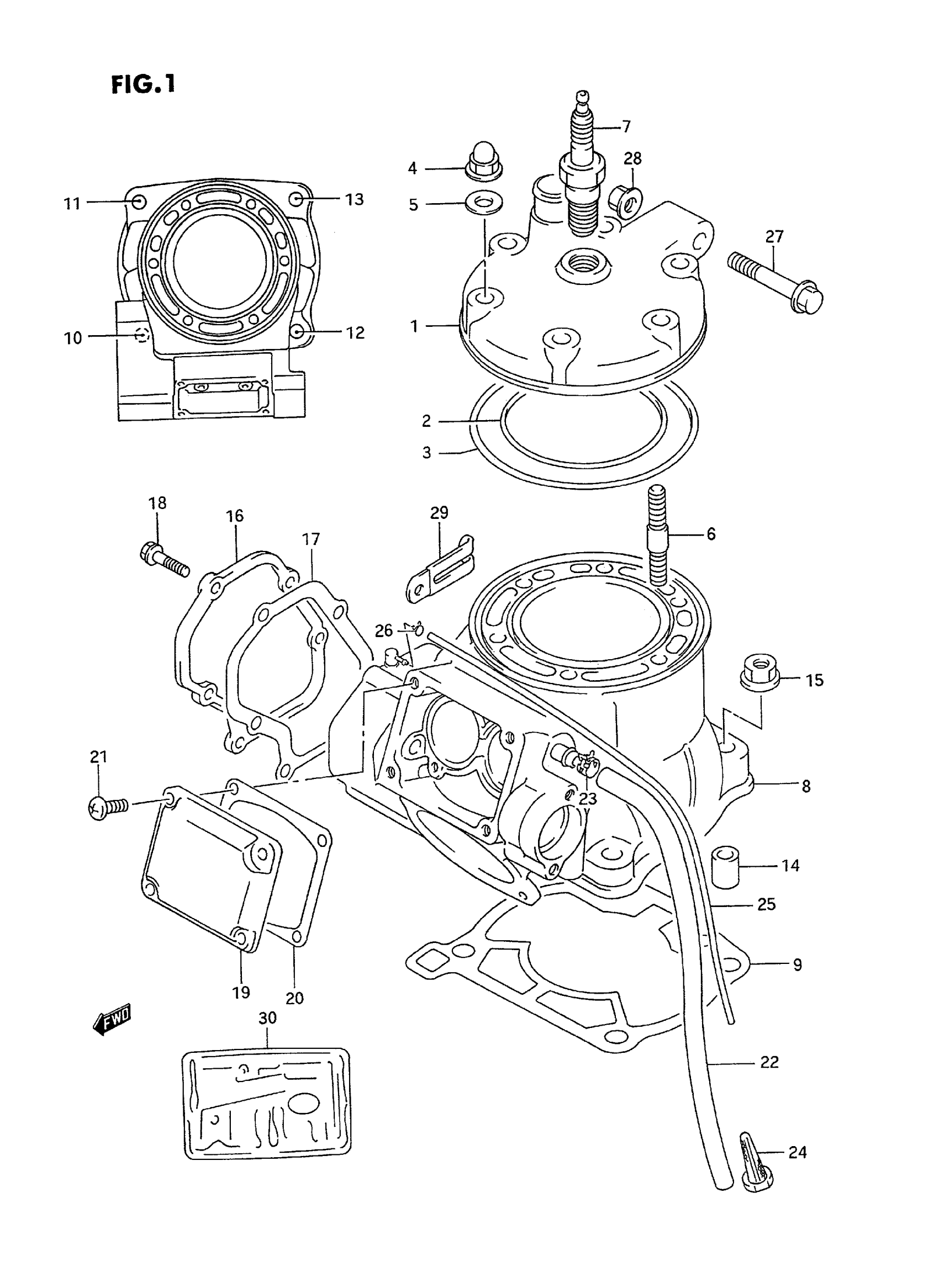

Suzuki RM250S (1995) CYLINDER Diagram

#

Description
Price

1

HEAD,CYLINDER | MODEL P This part replaces 11111-28E00.

11111-28E02

Unavailable

1

HEAD,CYLINDER | MODEL R This part replaces 11111-28E01.

11111-28E02

Unavailable

1

HEAD, CYLINDER | MODEL S

11111-28E20

Unavailable

2

O RING, CYLINDER HEAD NO.1

11147-28C20

$12.63

3

O RING, CYLINDER HEAD NO.2

11148-28C20

$7.60

4

NUT

09159-08074

$5.36

5

WASHER

09168-08021

$2.61

6

STUD BOLT (8X38) This part replaces 09108-08227.

09108-08231

$3.42

7

SPARK PLUG (NGK,R4118S-8)

09482-00499

Unavailable

8

CYLINDER | MODEL P This part replaces 11200-28850.

11200-28860

Unavailable

8

CYLINDER | MODEL R

11200-28860

Unavailable

8

CYLINDER | MODEL S

11200-28871

Unavailable

9

GASKET, CYLINDER

11241-28C11

$17.40

10

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

11

BOLT,STUD This part replaces 01421-10358.

01421-1035A

$2.62

12

STUD BOLT (L:40) This part replaces 01421-10408.

01421-1040A

$2.62

13

STUD BOLT This part replaces 01421-10458.

01421-10457

$3.91

14

PIN This part replaces 09206-13006.

09206-13017

$7.61

15

NUT | MODEL P

08316-10107

$2.39

15

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.66

16

COVER, CYLINDER NO.1

11231-28C20

Unavailable

17

GASKET, CYLINDER COVER NO.1 | MODEL P This part replaces 11233-28C20.

11233-28C21

Unavailable

17

GASKET, CYLINDER COVER NO.1 | MODEL R/S

11233-28C21

Unavailable

18

BOLT | MODEL P

01547-06167

$1.65

18

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.45

19

COVER, CYLINDER NO.2

11248-28C20

Unavailable

20

GASKET, CYLINDER COVER NO.2 | MODEL P This part replaces 11238-28C00.

11238-05D01

Unavailable

20

GASKET, CYLINDER COVER NO.2 | MODEL R/S

11238-05D01

Unavailable

21

SCREW | MODEL P This part replaces 02112-05168.

02112-05167

$1.97

21

BOLT | MODEL R/S This part replaces 01500-05163.

01500-0516B

$2.15

22

HOSE, EX VALVE BREATHER

09343-09501

$11.61

23

CLIP | MODEL P/R This part replaces 09401-12407.

09401-12405

$2.26

23

CLIP | MODEL S

09401-12405

$2.26

24

FILTER, EX VALVE BREATHER HOS | MODEL S

11271-28E20

Unavailable

25

HOSE,5X10X600 | MODEL SL:600->390 This part replaces 09352-50823-600.

44421-13ER0

$10.06

26

CLIP

09401-08401

$1.54

27

BOLT (8X45)

09103-08043

$3.18

28

NUT

09159-08067

$5.57

29

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

30

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 11401-28821.

11401-28824

Unavailable

30

GASKET SET | MODEL R This part replaces 11401-28831.

11401-28833

Unavailable

30

GASKET SET | MODEL S

11401-28833

Unavailable
