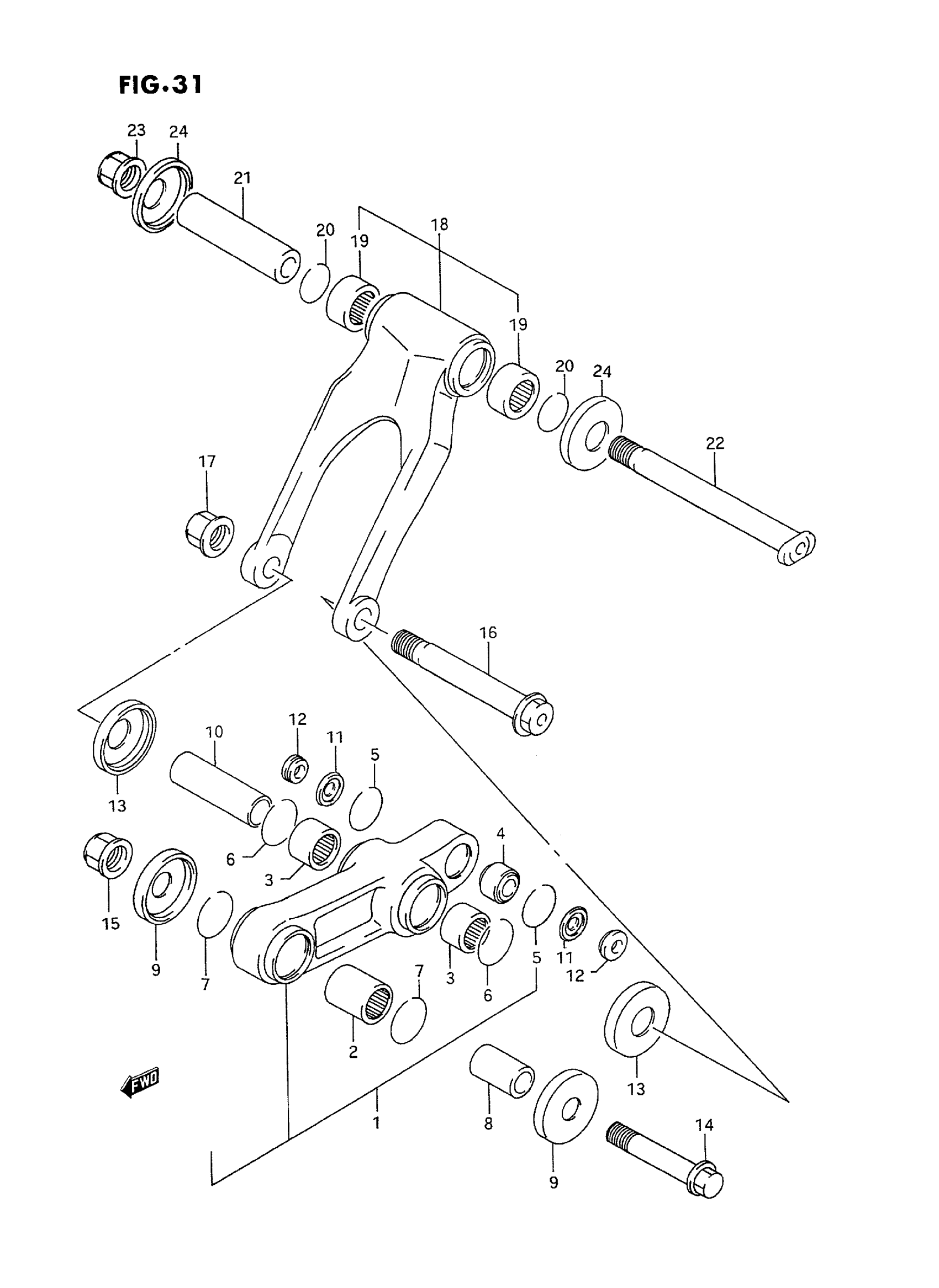

Suzuki RM250S (1995) CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | MODEL P

62600-28850

Unavailable

1

LEVER SET, REAR CUSHION | MODEL R

62600-28810

Unavailable

1

LEVER SET, REAR CUSHION | MODEL S; Includes Item(s) 2 - 7

62600-28870

Unavailable

2

BEARING, FRONT

09263-20053

$27.58

3

BEARING, CENTER

09263-22062

$31.08

4

BEARING, REAR | MODEL P/R

62175-43D00

Unavailable

4

BEARING, REAR | MODEL S

62175-28E00

Unavailable

5

RING, STOPPER REAR

62277-27C20

$3.92

6

RING, STOPPER CENTER

09381-26002

$2.07

7

RING, STOPPER, FRONT

09381-26002

$2.07

8

SPACER, FRONT CENTER

62317-27C10

$16.76

9

SEAL, DUST | MODEL P/R This part replaces 62162-28C01.

62162-28E01

$10.69

9

SEAL, DUST | MODEL S This part replaces 62162-28E00.

62162-28E01

$10.69

10

SPACER, CENTER

62646-28E00

Unavailable

11

DUST SEAL, REAR

62226-43D00

Unavailable

12

SPACER, REAR

62684-28C10

$14.85

13

SEAL, LEVER CENTER

62682-28E00

Unavailable

14

BOLT, FRONT

62658-27C10

$11.68

15

NUT This part replaces 08319-31128.

08319-3112A

$3.76

16

BOLT, CENTER (14X109) This part replaces 62621-28E00.

62621-28E01

Unavailable

17

NUT This part replaces 08319-31148.

08319-3114A

$9.66

18

ROD SET, CUSHION LEVER | MODEL P

62600-28860

Unavailable

18

ROD SET, CUSHION LEVER | MODEL R/S; Includes Item(s) 19 - 20

62600-28820

Unavailable

19

BEARING

09263-22062

$31.08

20

RING, STOPPER

09381-26002

$2.07

21

SPACER, ROD

62645-28E00

Unavailable

22

BOLT, ROD

62622-28E00

Unavailable

23

NUT This part replaces 08319-31148.

08319-3114A

$9.66

24

SEAL, DUST ROD

62682-28E00

Unavailable
