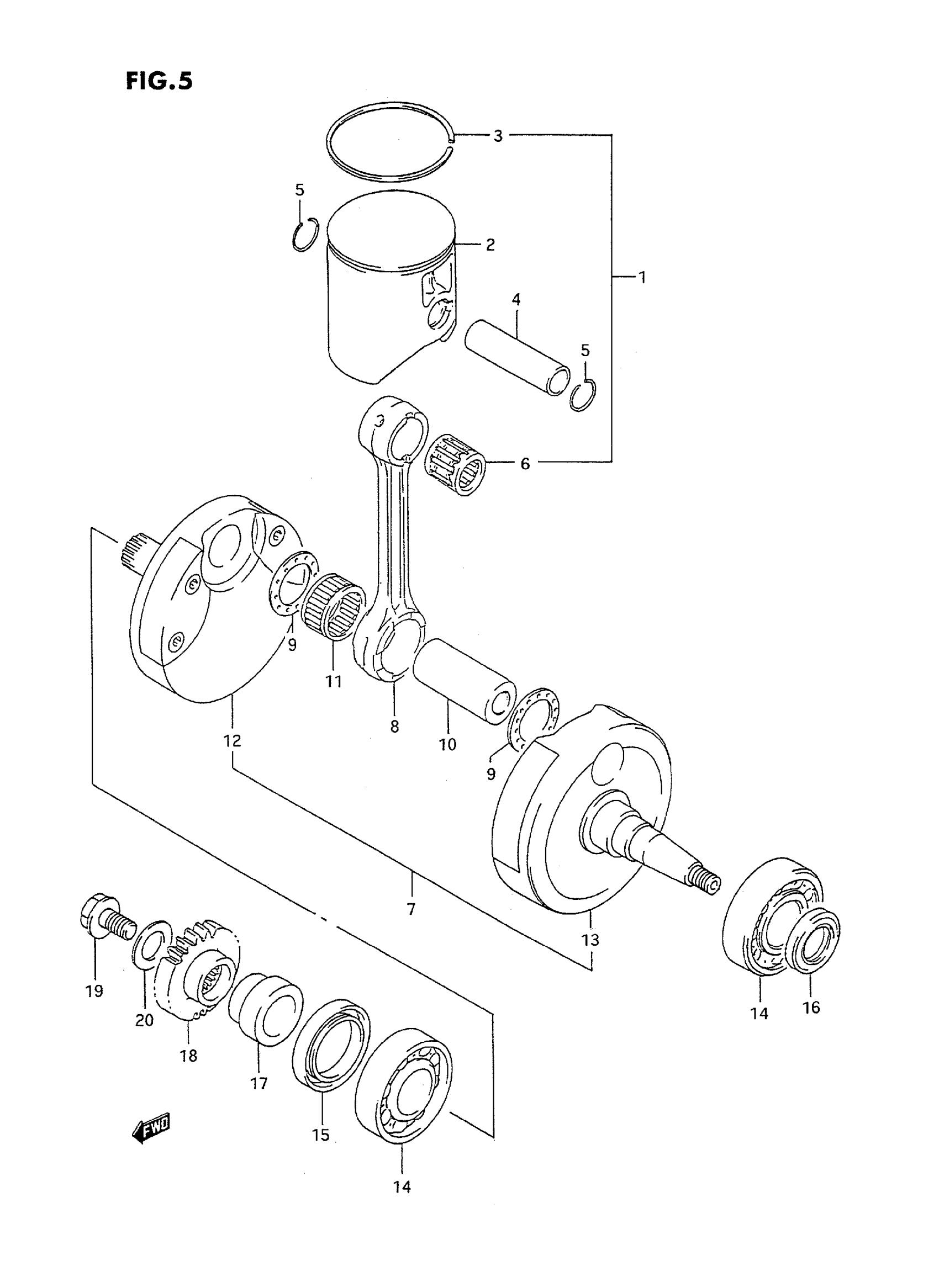

Find the part on the Crankshaft diagram for your 1995 Suzuki RM250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki RM250S Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON | ->12110-28E10-0F0W/12141-28E00 (2PC.S) This part replaces 12110-28E00-0F0.

12110-29E20-0F0

1
Out of stock

2

RING, PISTON

12141-28E00

1
Out of stock

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

1
Out of stock

4

CIRCLIP

09381-18002

2
Out of stock

5

BEARING, PISTON PIN

09263-18016

1
Out of stock

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-28E00

1
Out of stock

7

ROD, CONNECTING

12161-28C30

1
Out of stock

8

WASHER

09160-24027

2
Out of stock

9

PIN, CRANK This part replaces 12211-28C10.

12211-05D00

1
Out of stock

10

BEARING

09263-24026

1
Out of stock

11

CRANKSHAFT, RH

12220-28E00

1
Out of stock

12

CRANKSHAFT, LH

12260-28E00

1
Out of stock

13

BEARING

09262-25108

2
Out of stock

14

OIL SEAL, RH (36X52X7)

09283-36007

1
Out of stock

15

OIL SEAL, LH (20X37X6)

09283-20051

1
Out of stock

16

SPACER This part replaces 12359-28C20.

12359-00B20

1
Out of stock

17

GEAR, PRIMARY DRIVE (NT:23) This part replaces 21111-14320.

21111-14321

1
Out of stock

18

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

1
Out of stock

19

WASHER

09164-11004

1
Out of stock

20

TOP END KIT, EN | OPT This part replaces 12101-28810.

12101-28812

1
Out of stock

21

REFER TO FIG.5A(B-13) FOR

SPECIAL NOTE

—
Out of stock
