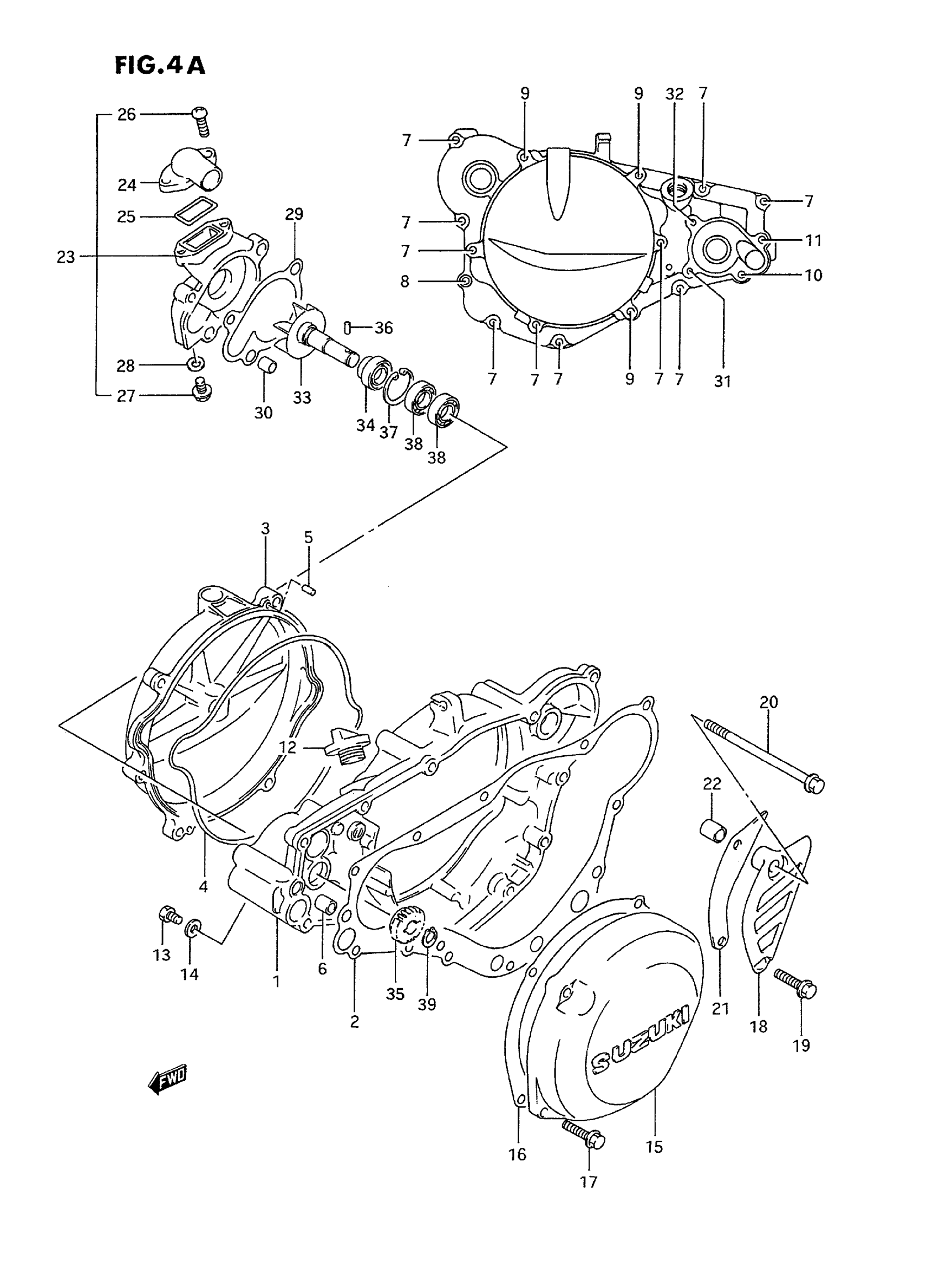

Suzuki RM250S (1995) CRANKCASE COVER (MODEL R/S) Diagram

#

Description
Price

1

COVER, CLUTCH

11340-28840

Unavailable

2

GASKET, CLUTCH COVER

11482-28E10

Unavailable

3

COVER, CLUTCH OUTER

11371-28E02

Unavailable

4

O RING, CLUTCH COVER OUTER

11484-28C10

Unavailable

5

PIN (4X13.8)

04221-04089

$1.10

6

PIN

04211-09129

$1.64

7

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

8

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

9

BOLT This part replaces 01547-06703.

01547-0670B

$3.01

10

BOLT This part replaces 01547-06803.

01547-0680B

$2.92

11

BOLT This part replaces 01547-06903.

01547-0690B

$2.93

12

PLUG SET This part replaces 09200-20810.

09200-20811

$3.63

13

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.38

14

GASKET

09168-06004

$1.43

15

COVER, MAGNETO

11351-28E10

Unavailable

16

GASKET, MAGNETO COVER

11483-28E10

Unavailable

17

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

18

COVER, ENGINE SPROCKET

11360-28E00

$30.12

19

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

20

.BOLT This part replaces 01547-06953.

01547-0695B

$3.04

21

PLATE, CHAIN GUIDE

27641-28C10

Unavailable

21

PLATE, CHAIN GUIDE | OPT,FOR NT:14

27641-28C00

Unavailable

21

PLATE, CHAIN GUIDE | OPT,FOR NT:15

27641-28C20

Unavailable

22

SPACER

09180-06203

$2.80

23

CASE ASSY, WATER PUMP | Includes Item(s) 24 - 28

17410-28E00

Unavailable

24

CONNECTOR

17412-28E00

Unavailable

25

O RING

17414-14300

$2.80

26

SCREW This part replaces 02112-06164.

02112-0616A

$1.43

27

BOLT, DRAIN

17415-43D00

$3.79

28

GASKET

17413-28C10

$2.05

29

GASKET, WATER PUMP CASE

17431-28C10

$7.10

30

PIN

04211-09129

$1.64

31

..BOLT This part replaces 01547-06203.

01547-0620B

$2.43

32

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

33

IMPELLER, WATER PUMP

17491-28C10

$64.38

34

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

$7.56

35

GEAR, WATER PUMP DRIVEN This part replaces 17441-28C10.

17441-28C11

Unavailable

36

PIN

09261-03010

Unavailable

37

CIRCLIP This part replaces 08331-41246.

08331-41249

$2.24

38

BEARING

08113-69000

$22.14

39

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77
