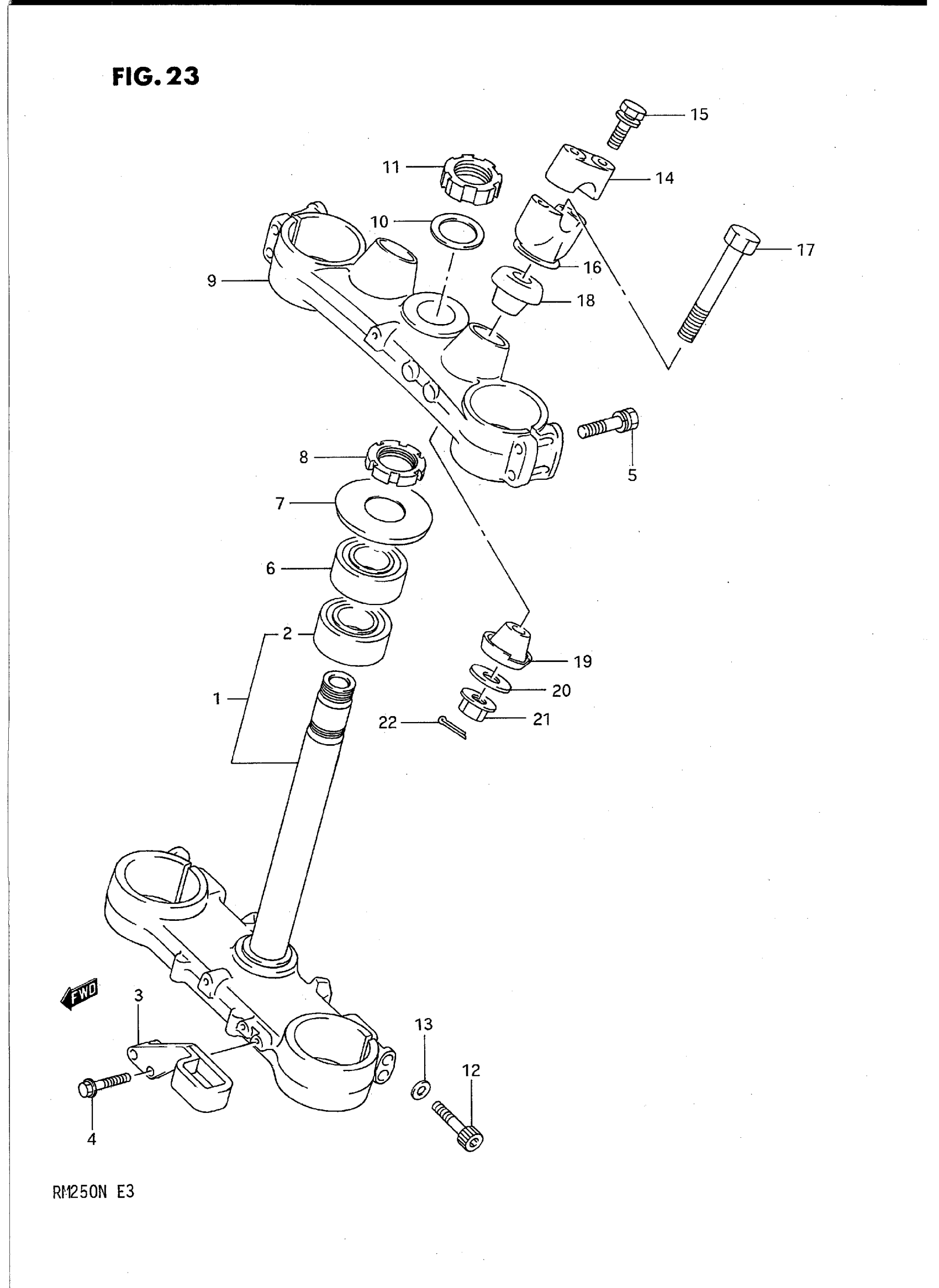

Suzuki RM250N (1992) STEERING STEM (MODEL K/L) Diagram

#

Description
Price

1

STEM, STEERING | MODEL K

51410-28C00

Unavailable

1

STEM, STEERING | MODEL L; Includes Item(s) 2

51410-28C40

Unavailable

2

BEARING

09265-28003

Unavailable

3

GUIDE, HOSE LOWER LH

58621-28C00

Unavailable

4

BOLT, HOSE GUIDE

58629-28C00

Unavailable

5

BOLT | MODEL K This part replaces 51328-28C00.

01547-0845A

$7.25

5

BOLT, STEM | MODEL L

07120-08407

$4.25

6

BEARING This part replaces 09265-28002.

09265-28003

Unavailable

7

DUST SEAL

51643-28C00

Unavailable

8

NUT, STEERING This part replaces 51631-28C00.

51631-28C10

Unavailable

9

STEM HEAD, STEERING | MODEL K This part replaces 51311-28C00.

51311-28C40

Unavailable

9

STEM HEAD, STEERING | MODEL L

51311-28C40

Unavailable

10

WASHER, STEM HEAD | MODEL K

51356-27C00

$6.75

10

WASHER,STEM HEAD | MODEL L This part replaces 51356-27C21.

51356-29E00

$15.29

11

NUT, STEM HEAD

51353-27C00

Unavailable

12

BOLT | MODEL K This part replaces 07110-08407.

07130-08407

$3.14

12

BOLT | MODEL L

51328-27C20

Unavailable

13

WASHER

09164-08011

$2.71

14

HOLDER, HANDLE UPPER

56211-27100

$15.23

15

BOLT | MODEL K This part replaces 51321-27C00.

01570-0835A

$3.16

15

BOLT, UPPER | MODEL L

51321-27C20

Unavailable

16

HOLDER, HANDLE LOWER

56221-23450

Unavailable

17

BOLT, LOWER

56321-28C00

$8.28

18

DAMPER RUBBER, UPPER

56241-14200

$44.53

19

DAMPER RUBBER, LOWER

56242-14200

$36.08

20

WASHER This part replaces 51356-40400.

09160-10035

$1.78

21

NUT

08319-31107

$2.73

22

PIN This part replaces 04111-20308.

04111-2030A

$1.50
