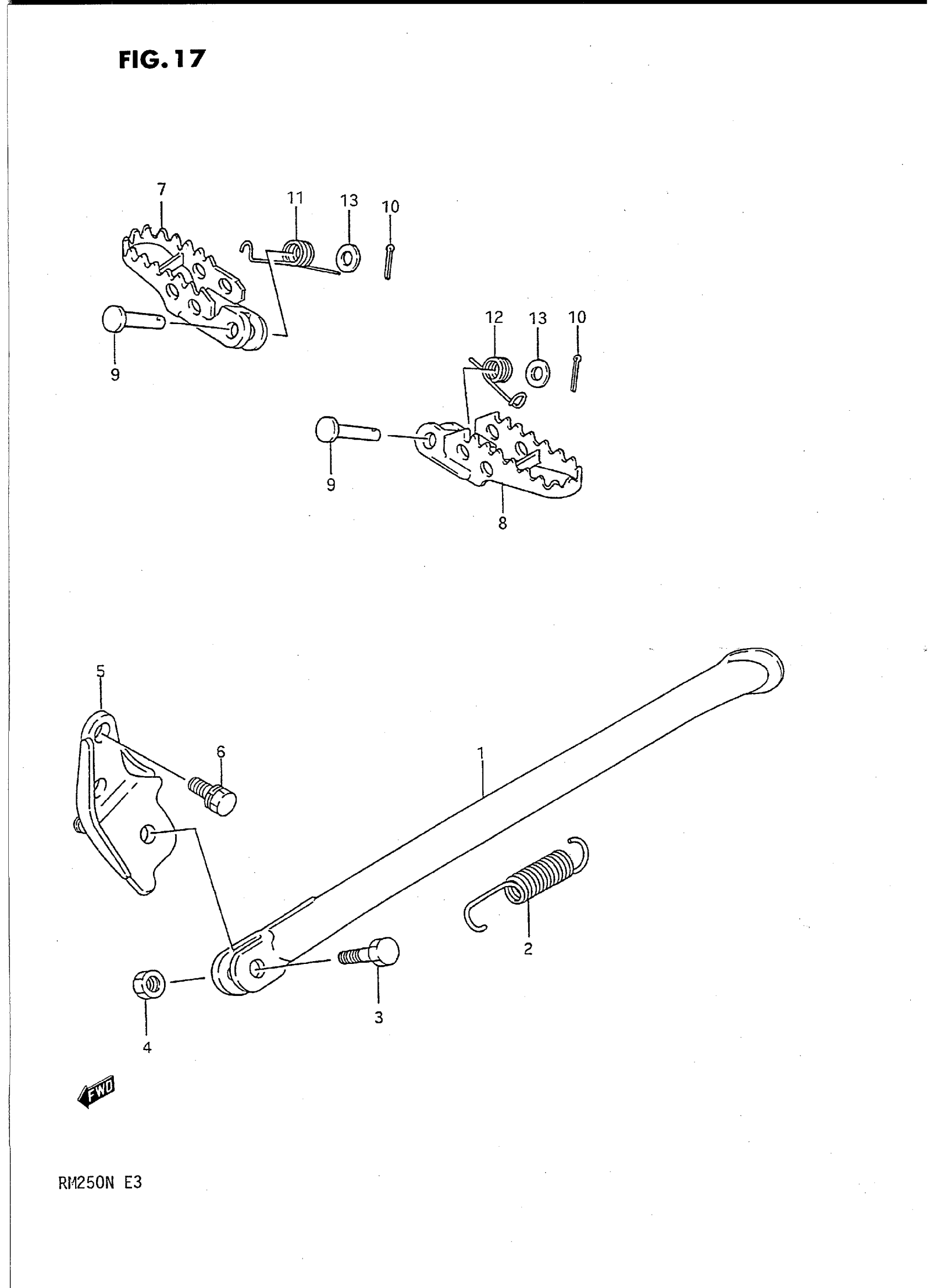

Suzuki RM250N (1992) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, PROP (BLACK) | MODEL K/L This part replaces 42310-26C00-19F.

42310-26C00-019

Unavailable

1

STAND, PROP (BLACK) | MODEL M/N

42310-26C00-019

Unavailable

2

SPRING

09443-17007

$3.91

3

BOLT (10X30)

09100-10067

$2.61

4

NUT This part replaces 08310-22107.

08310-00107

$2.19

5

BRACKET (BLACK) | MODEL K/L This part replaces 42330-26C00-19F.

42330-26C00-019

Unavailable

5

BRACKET (BLACK) | MODEL M/N

42330-26C00-019

Unavailable

6

PLUG, OIL GALLERY | MODEL K/L This part replaces 01517-10168.

01550-1016A

$3.10

6

PLUG, OIL GALLERY | MODEL M/N This part replaces 01517-10165.

01550-1016A

$3.10

7

FOOTREST, RH (BLUE) | MODEL K This part replaces 43550-26C01-19F.

43550-26C02-19F

Unavailable

7

FOOTREST, RH (BLUE) | MODEL L

43550-26C02-19F

Unavailable

7

FOOTREST, RH | MODEL M This part replaces 43550-27C21-1AZ.

43550-29E01

$111.52

7

FOOTREST, RH | MODEL N This part replaces 43550-28C30-1AZ.

43550-29E01

$111.52

8

FOOTREST, LH (BLUE) | MODEL K This part replaces 43560-26C01-19F.

43560-26C02-19F

Unavailable

8

FOOTREST, LH (BLUE) | MODEL L

43560-26C02-19F

Unavailable

8

FOOTREST, LH | MODEL M This part replaces 43560-27C21-1AZ.

43560-29E01

$109.42

8

FOOTREST, LH | MODEL N This part replaces 43560-28C30-1AZ.

43560-29E01

$109.42

9

PIN | MODEL K/L

09200-08064

$6.13

9

PIN | MODEL M/N

09200-10019

$6.83

10

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

11

SPRING | MODEL K/L This part replaces 09448-14014.

09448-14014-XC0

Unavailable

11

SPRING, RH | MODEL M/N

09448-18030

$5.36

12

SPRING,FR FOOTR | MODEL K This part replaces 09448-14018.

09448-14018-XC0

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 09448-14044.

09448-14044-XC0

Unavailable

12

SPRING, LH | MODEL M/N

09448-18029

$5.36

13

WASHER | MODEL K/L This part replaces 08322-21088.

08322-01087

$2.13

13

WASHER | MODEL M/N This part replaces 08322-11107.

08322-01107

$2.15
