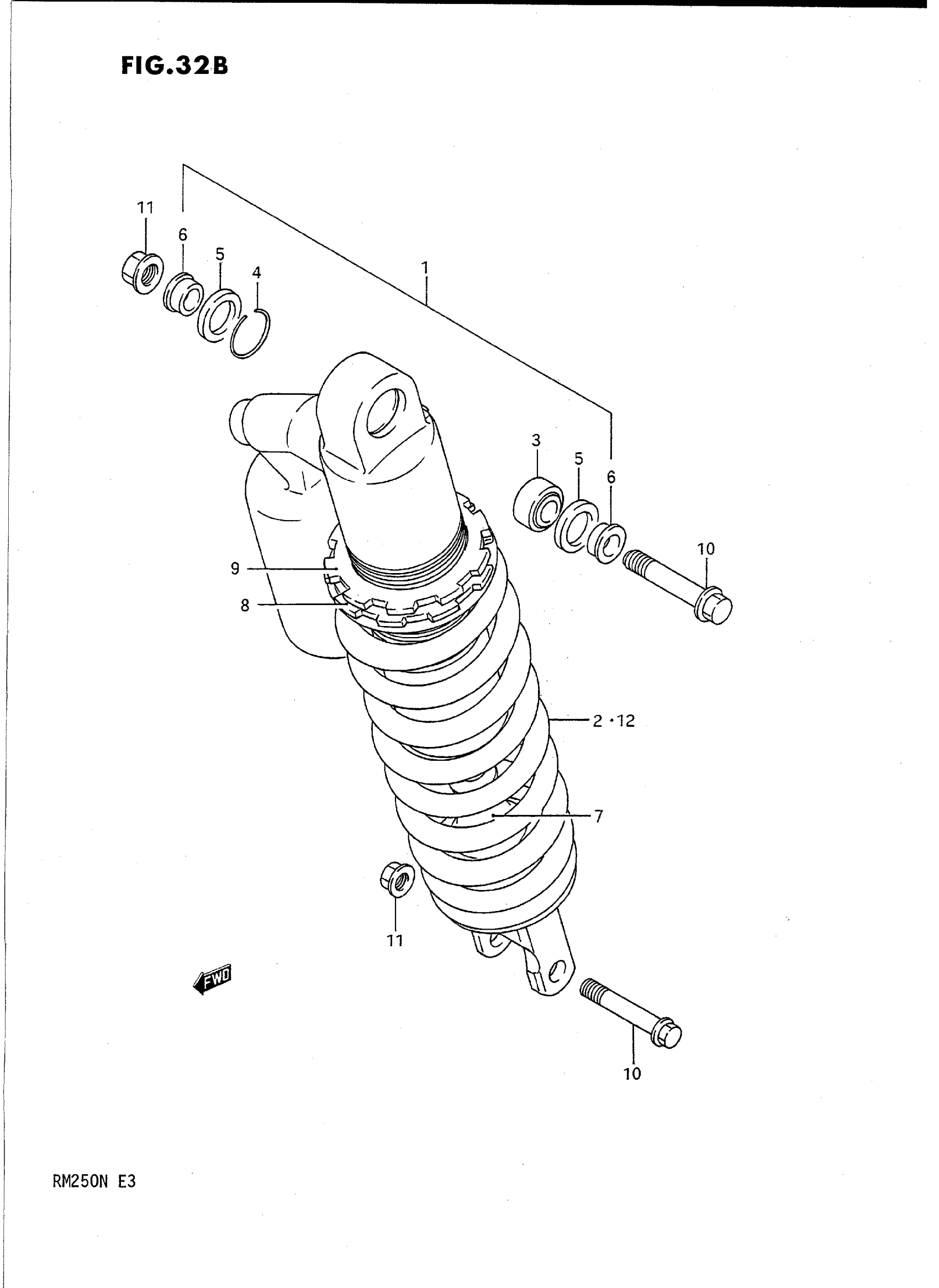

Suzuki RM250N (1992) SHOCK ABSORBER (MODEL M) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | YELLOW; Includes Item(s) 2 - 9

62100-28C50-163

Unavailable

2

SPRING This part replaces 62211-28C70.

62211-28C70-163

Unavailable

3

BEARING, REAR This part replaces 62175-27C20.

62175-43D00

Unavailable

4

STOP RING

62277-27C40

$3.95

5

DUST SEAL

62226-27C40

Unavailable

6

COLLAR

62684-27C40

Unavailable

7

ROD, PISTON

62120-28C50

Unavailable

8

ADJUSTER NUT SET This part replaces 62191-27C40.

62190-28E00

Unavailable

9

NUT

62194-27C40

Unavailable

10

BOLT, LOWER (10X54) This part replaces 62311-28C00.

62311-28E00

$6.19

11

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 62211-28C80.

62211-28C80-163

Unavailable

12

SPRING (SOFT) | OPT

62211-27C90

Unavailable
