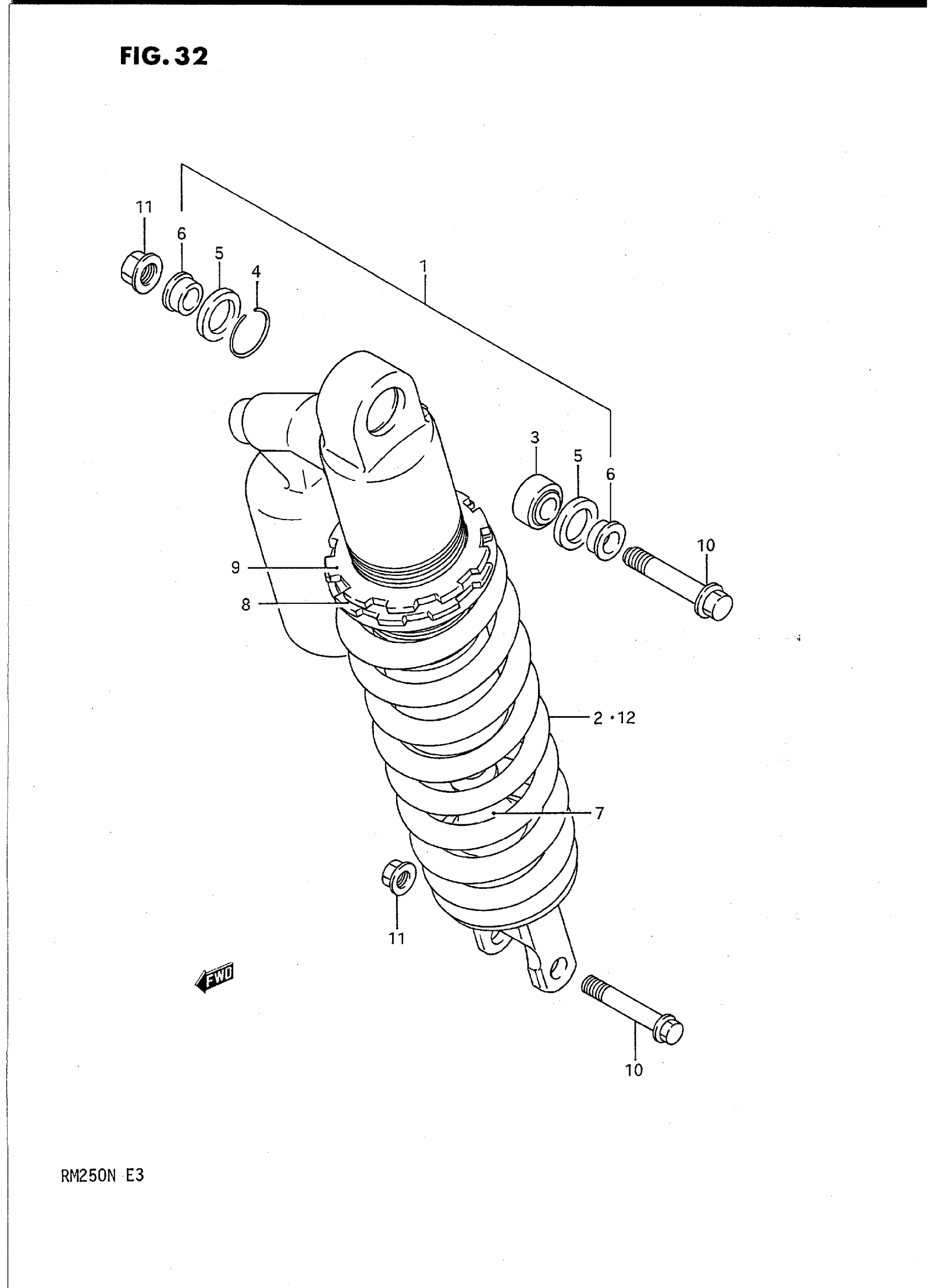

Suzuki RM250N (1992) SHOCK ABSORBER (MODEL K) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | Includes Item(s) 2 - 9 This part replaces 62100-28C10-163.

62100-05D20-163

Unavailable

2

SPRING

62211-28C00

Unavailable

3

BEARING

62175-00B00

$61.15

4

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

5

DUST SEAL

62226-01B20

Unavailable

6

COLLAR

62684-27C10

Unavailable

7

ROO, PISTON This part replaces 62120-28C00.

62120-05D20

Unavailable

8

GUIDE, SPRING This part replaces 62191-27C00.

62191-27C20

Unavailable

9

NUT This part replaces 62194-27C00.

62194-27C20

Unavailable

10

BOLT, LOWER (10X54) This part replaces 62311-28C00.

62311-28E00

$6.19

11

NUT

08319-31107

$2.73

12

SPRING (HARD)

62211-28C60

Unavailable

12

SPRING (SOFT)

62211-28C50

Unavailable
