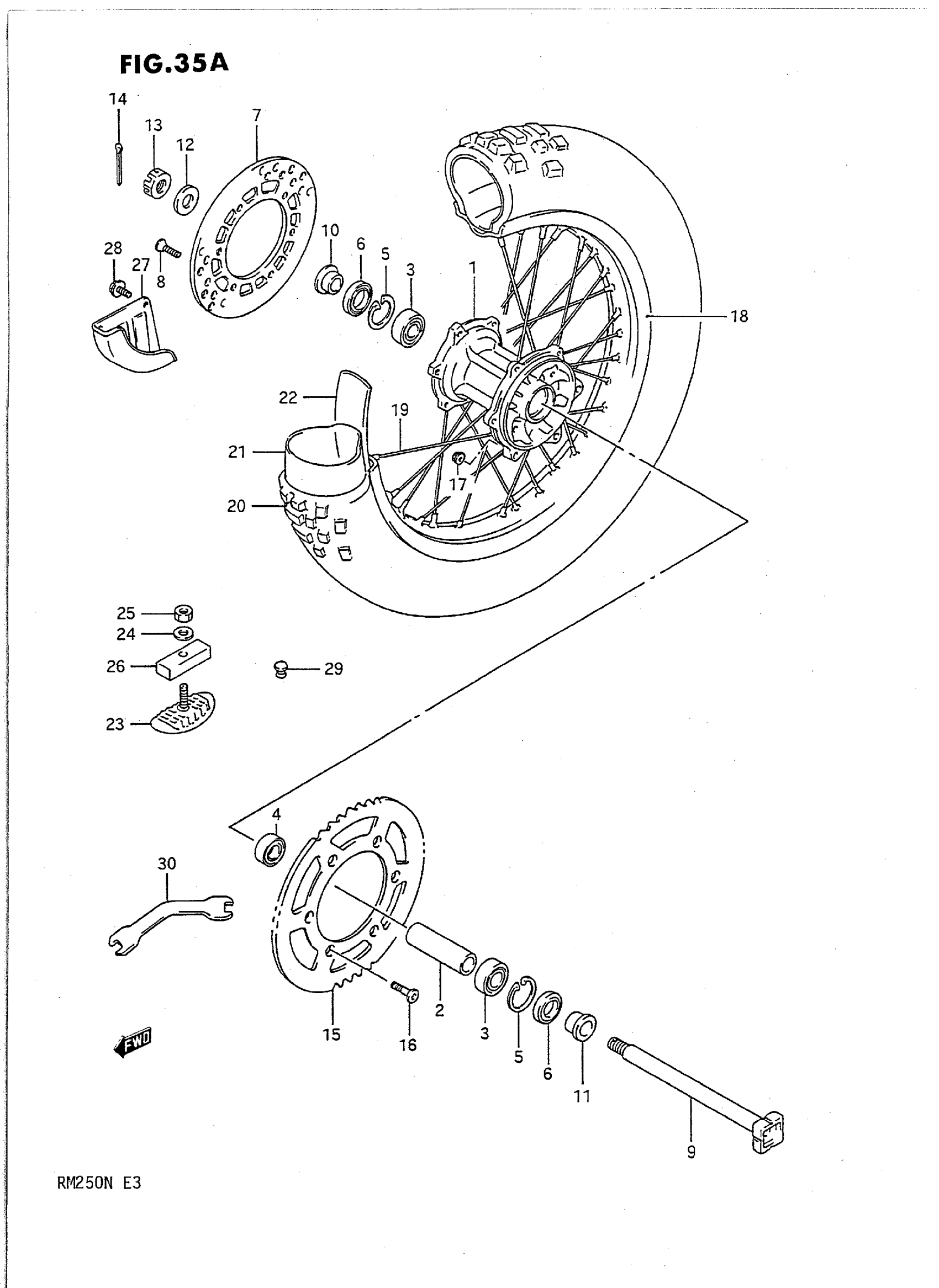

Suzuki RM250N (1992) REAR WHEEL (MODEL L/M) Diagram

#

Description
Price

1

HUB, REAR

64110-28C01

Unavailable

2

SPACER, BEARING

64731-00B30

Unavailable

3

BEARING

08133-62047

$28.61

4

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

5

CIRCLIP This part replaces 08331-41478.

08331-41479

$2.31

6

OIL SEAL (26X47X5)

09283-26019

$11.61

7

DISC, REAR BRAKE | MODEL L This part replaces 69211-27C00.

69211-43D00

$299.30

7

DISC, REAR BRAKE | MODEL M This part replaces 69211-05D00.

69211-43D00

$299.30

8

SCREW

02122-06167

$1.49

9

AXLE, REAR | MODEL L

64711-27C01

Unavailable

9

AXLE, REAR | MODEL M This part replaces 64711-27C20.

64711-27C30

Unavailable

10

SPACER, RH

64741-00B21

Unavailable

11

SPACER, LH

64751-27C00

Unavailable

12

WASHER This part replaces 09160-19010.

09160-19022

$4.90

13

NUT This part replaces 08314-41188.

08314-40187

$5.64

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

15

SPROCKET,RR (NT:49) This part replaces 64511-40281.

64511-28E00

$120.85

15

SPROCKET, REAR (NT:48) | OPT ALUMINIUM This part replaces 64511-40285.

64511-14D60

Unavailable

15

SPROCKET,RR (NT:50) | OPT ALUMINIUM This part replaces 64511-40271.

64511-36E00

$126.60

15

SPROCKET, REAR (NT:51) | OPT ALUMINIUM

64511-40261

$155.22

15

SPROCKET, REAR (NT:49) | OPT STEEL

64511-00B01

Unavailable

15

SPROCKET, REAR (NT:50) | OPT STEEL This part replaces 64511-00B11.

64511-00B12

$125.38

15

SPROCKET, REAR (NT:51) | OPT STEEL

64511-00B21

Unavailable

16

SCREW

09120-08010

$2.36

17

NUT | MODEL L

09159-08034

$1.62

17

NUT | MODEL M

09159-08067

$5.57

18

RIM, WHEEL (2.15X19AL)

65311-28C10

Unavailable

19

SPOKE ASSY, WHEEL

65320-28C10

Unavailable

20

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 65110-28C20.

65110-28E11

Unavailable

20

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 65110-28C40.

65110-28E11

Unavailable

21

TUBE This part replaces 65200-28C20.

55200-44611

$33.73

22

PROTECTOR,WHL I This part replaces 65261-28C20.

65261-28C21

$6.00

23

STOPPER, BEAD This part replaces 65270-14200.

65270-28E00

$58.75

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13

25

NUT This part replaces 08310-12088.

08310-00087

$2.13

26

CUSHION, BEAD STOPPER

65271-27C00

$7.42

27

COVER, REAR DISC

69231-27C00

Unavailable

28

BOLT This part replaces 01517-06128.

01550-06127

$2.30

29

CAP

09250-08013

$2.68

30

SPANNER, OPEN

09813-00039

Unavailable
