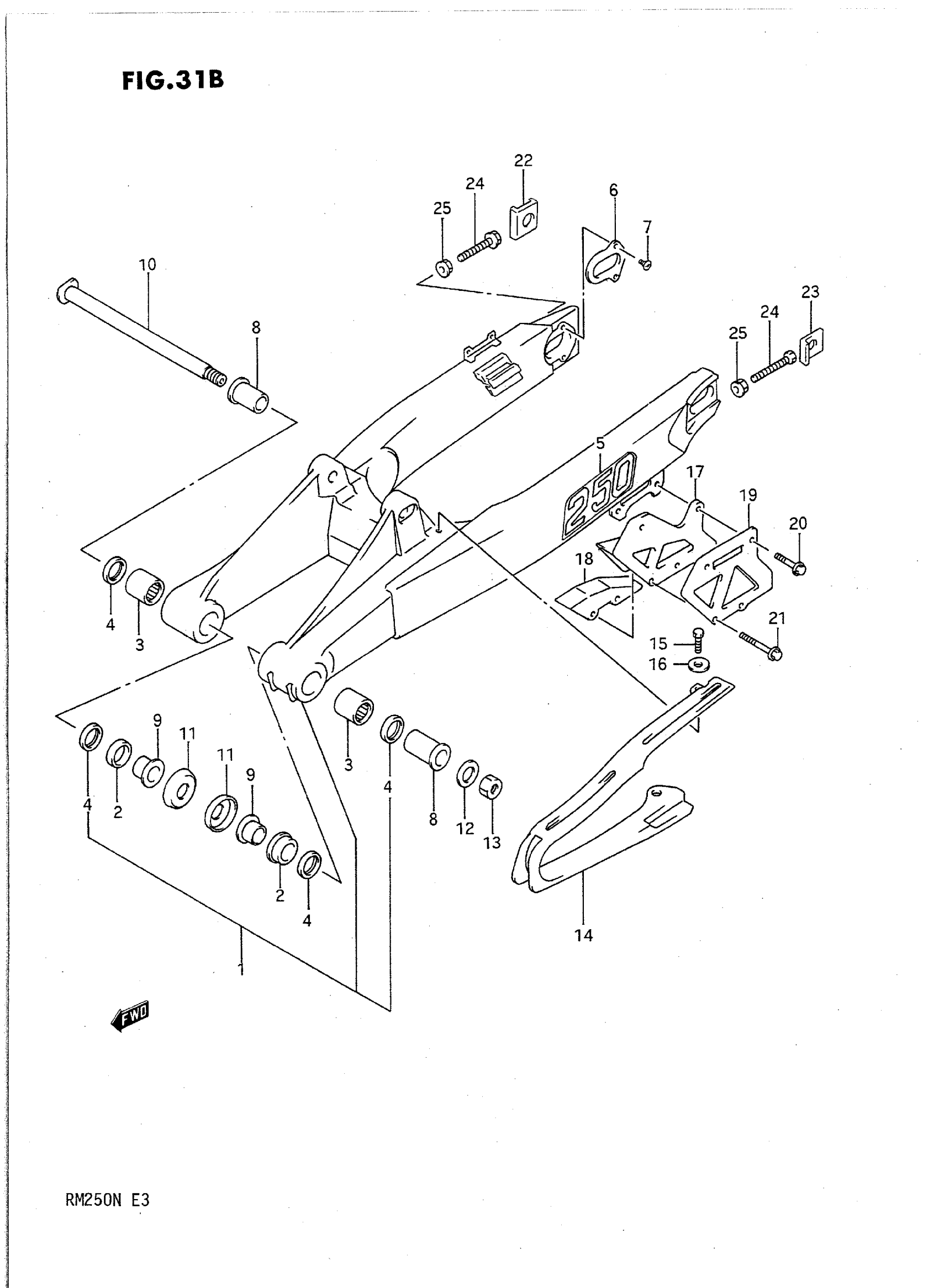

Suzuki RM250N (1992) REAR SWINGING ARM (MODEL N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 61000-28C30.

61000-28C31

Unavailable

2

BUSH

61261-28C00

Unavailable

3

BEARING

09263-22017

$22.58

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

EMBLEM

68381-28C10-12R

Unavailable

6

PLATE, INNER

61128-28C30

Unavailable

7

SCREW (5X8) This part replaces 09120-05004.

09126-05009

$2.28

8

SPACER This part replaces 61251-28C00.

61251-05D00

Unavailable

9

SPACER, PIVOT INNER

61252-28C00

Unavailable

10

SHAFT, PIVOT

61211-28C00

$67.10

11

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

12

WASHER This part replaces 08322-11168.

08322-01167

$2.10

13

NUT

09159-16007

$12.61

14

BUFFER, CHAIN TOUCH DEFENSE

61273-27C01

$55.52

15

BOLT

01547-06167

$1.65

16

WASHER

09169-06057

$3.18

17

GUIDE, CHAIN

61341-27C20

$45.08

18

DEFENCE, CHAIN GUIDE

61348-27C20

$32.18

19

PLATE, GUIDE OUTER

61342-27C20

Unavailable

20

BOLT, 6 X 20 This part replaces 09103-06146.

09103-06143

Unavailable

21

SCREW, UNDER

09126-06013

$3.60

22

WASHER, RH

61445-28C30

Unavailable

23

WASHER, LH

61446-43D00

Unavailable

24

BOLT

09100-08287

$3.10

25

NUT

09159-08034

$1.62
