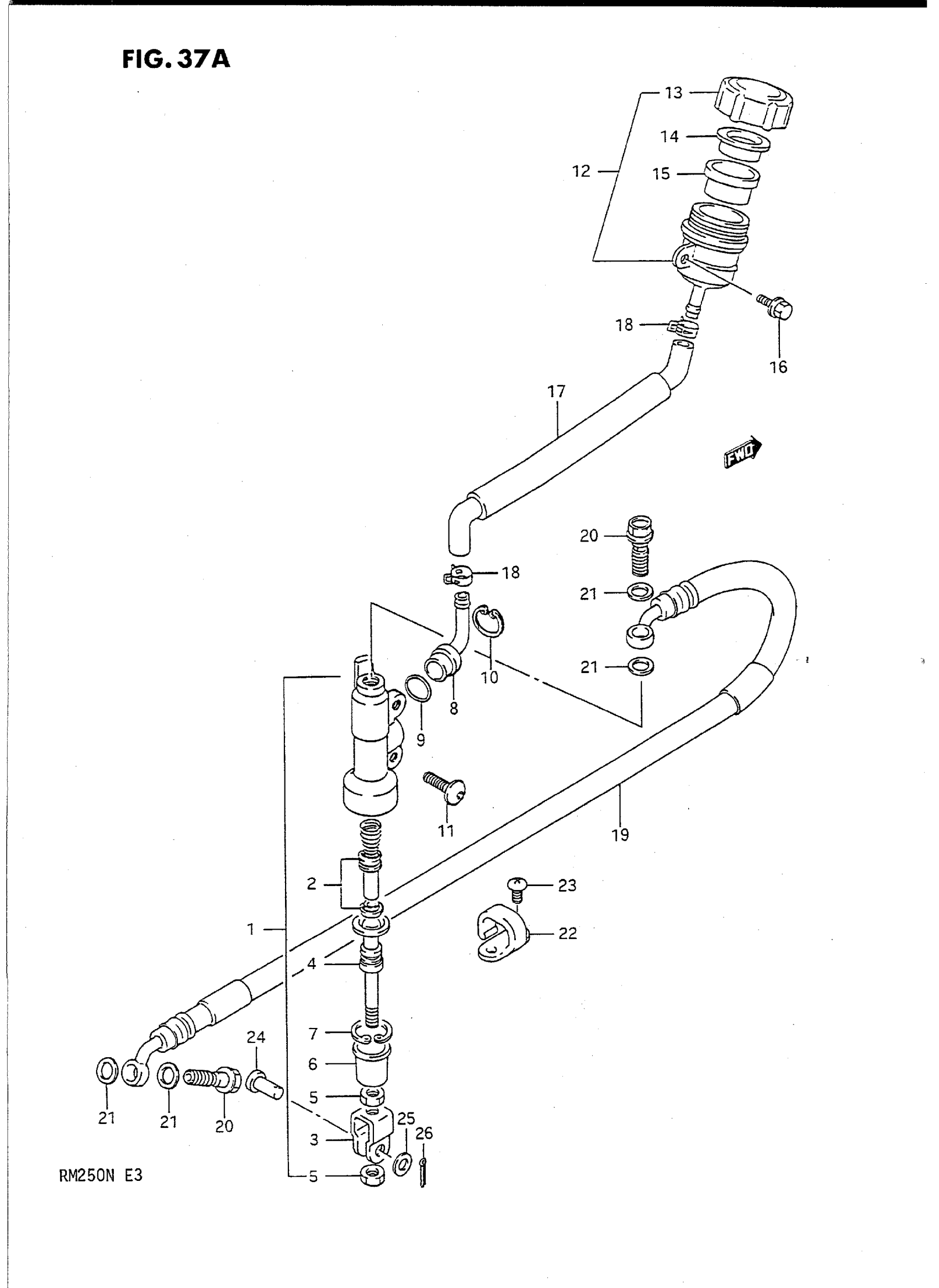

Suzuki RM250N (1992) REAR MASTER CYLINDER (MODEL L) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 10

69600-00B23

Unavailable

2

PISTON/CUP SET

69600-34810

$56.48

3

YOKE

69692-00B21

$17.02

4

ROD, PUSH

69670-00B21

$29.25

5

NUT

69693-05A00

$1.96

6

.BOOT

69691-00A00

$5.30

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-00B20

$7.01

9

O RING

69686-34200

$2.93

10

CIRCLIP

69674-00B20

$3.97

11

SCREW

09139-06030

$3.70

12

TANK ASSY, RESERVOIR | Includes Item(s) 13 - 15

69740-05D00

Unavailable

13

CAP

69669-03D10

$22.65

14

PLATE

69668-00B20

$7.67

15

DIAPHRGM

69667-00B20

$15.68

16

BOLT This part replaces 01517-06128.

01550-06127

$2.30

17

HOSE, RESERVOIR TANK

69731-00B23

Unavailable

18

CLAMP

69735-00B20

$4.10

19

HOSE, REAR BRAKE This part replaces 69480-27C10.

69480-28E00

Unavailable

20

UNION

09360-10017

$3.42

21

WASHER (10X15X1.5)

09161-10009

$1.84

22

GUIDE, HOSE

61196-00B21

$6.79

23

SCREW, REAR

09125-05042

$1.96

24

PIN

09200-08048

$2.92

25

WASHER

09160-08074

Unavailable

26

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
