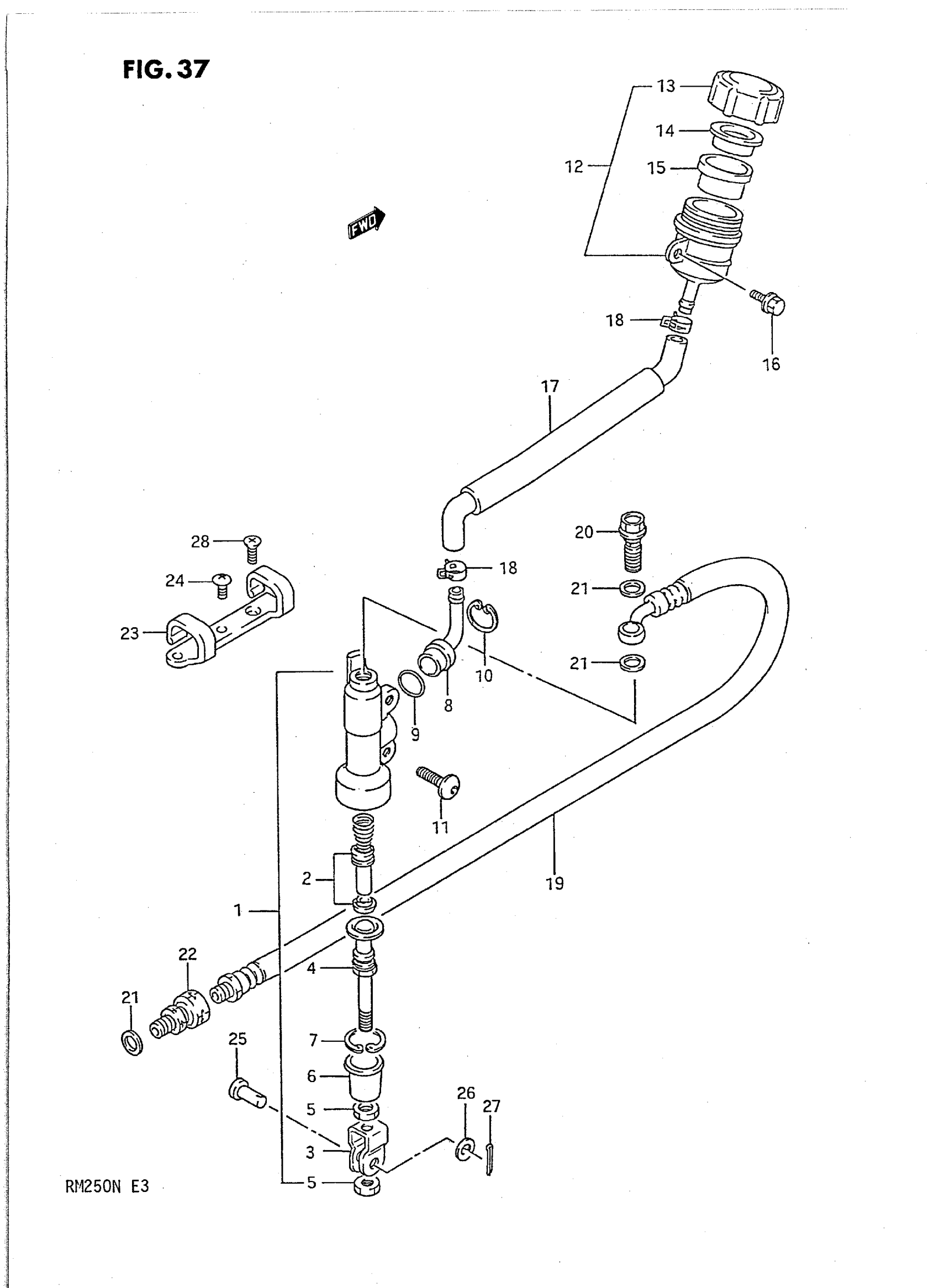

Suzuki RM250N (1992) REAR MASTER CYLINDER (MODEL K) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 10

69600-00B23

Unavailable

2

PISTON/CUP SET

69600-34810

$56.48

3

YOKE

69692-00B21

$17.02

4

ROD, PUSH

69670-00B21

$29.25

5

NUT

69693-05A00

$1.96

6

.BOOT

69691-00A00

$5.30

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-00B20

$7.01

9

O RING

69686-34200

$2.93

10

CIRCLIP

69674-00B20

$3.97

11

BOLT

09106-06064

$6.02

12

TANK ASSY, RESERVOIR | Includes Item(s) 13 - 15 This part replaces 69740-00B21.

69740-05D00

Unavailable

13

CAP This part replaces 69669-00B21.

69669-03D10

$22.65

14

PLATE

69668-00B20

$7.67

15

DIAPHRGM

69667-00B20

$15.68

16

BOLT This part replaces 01517-06128.

01550-06127

$2.30

17

HOSE, RESERVOIR TANK

69731-00B23

Unavailable

18

CLAMP

69735-00B20

$4.10

19

HOSE,REAR BRAKE This part replaces 69480-27C01.

69480-27C02

Unavailable

20

UNION

09360-10017

$3.42

21

WASHER (10X15X1.5)

09161-10009

$1.84

22

ADAPTER, BRAKE HOSE

59290-14501

$36.17

23

CLAMP, REAR BRAKE HOSE

61196-28C00

Unavailable

24

SCREW

09125-05042

$1.96

25

PIN

09200-08048

$2.92

26

WASHER

09160-08074

Unavailable

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

28

SCREW, FRONT

09126-05006

Unavailable
