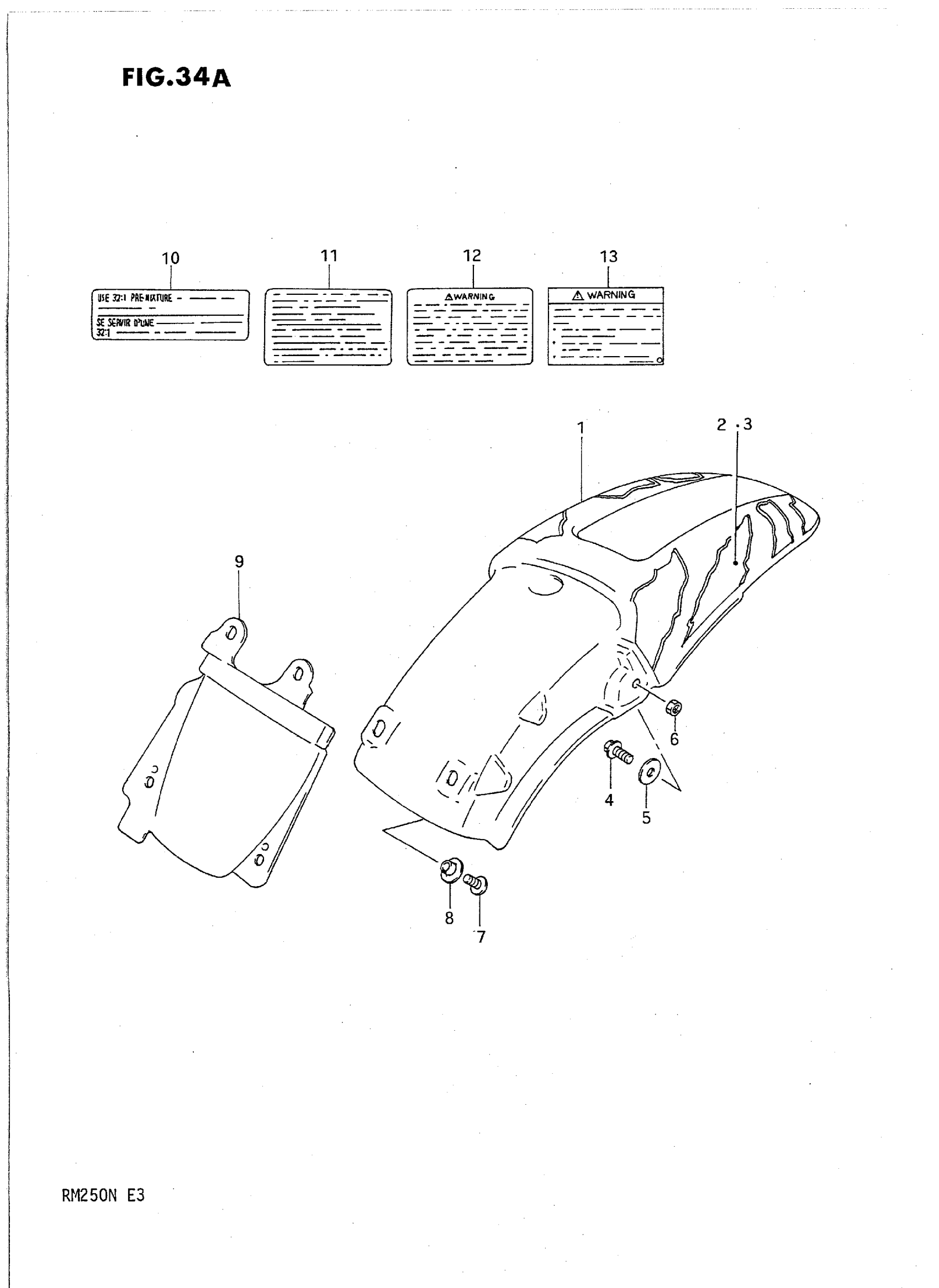

Suzuki RM250N (1992) REAR FENDER (MODEL N) Diagram

#

Description
Price

1

BODY, REAR FENDER (WHITE)

63113-27C10-30H

Unavailable

2

EMBLEM, FENDER RH

68175-43D00-1JH

Unavailable

3

EMBLEM, FENDER LH

68176-43D00-1JH

Unavailable

4

BOLT, REAR LH

01547-06167

$1.65

5

WASHER This part replaces 09160-06030.

09160-06136

$1.84

6

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

7

SCREW, FRONT This part replaces 09125-06090.

09125-06088

$2.30

8

WASHER

09169-06059

$2.90

9

MUD GUARD, FENDER FRONT

63351-28C00

Unavailable

10

LABEL, WARNING

68367-28C00

$5.02

11

LABEL,WARNING This part replaces 68369-02B30.

68369-02B31

Unavailable

12

LABEL, WARNING

68369-02B40

$7.05

13

LABEL,GENERAL W This part replaces 68319-28C00.

68319-33E02

$7.25
