1992 Suzuki RM250N Rear Calipers Diagram

← All diagrams

Find the part on the Rear Calipers diagram for your 1992 Suzuki RM250N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

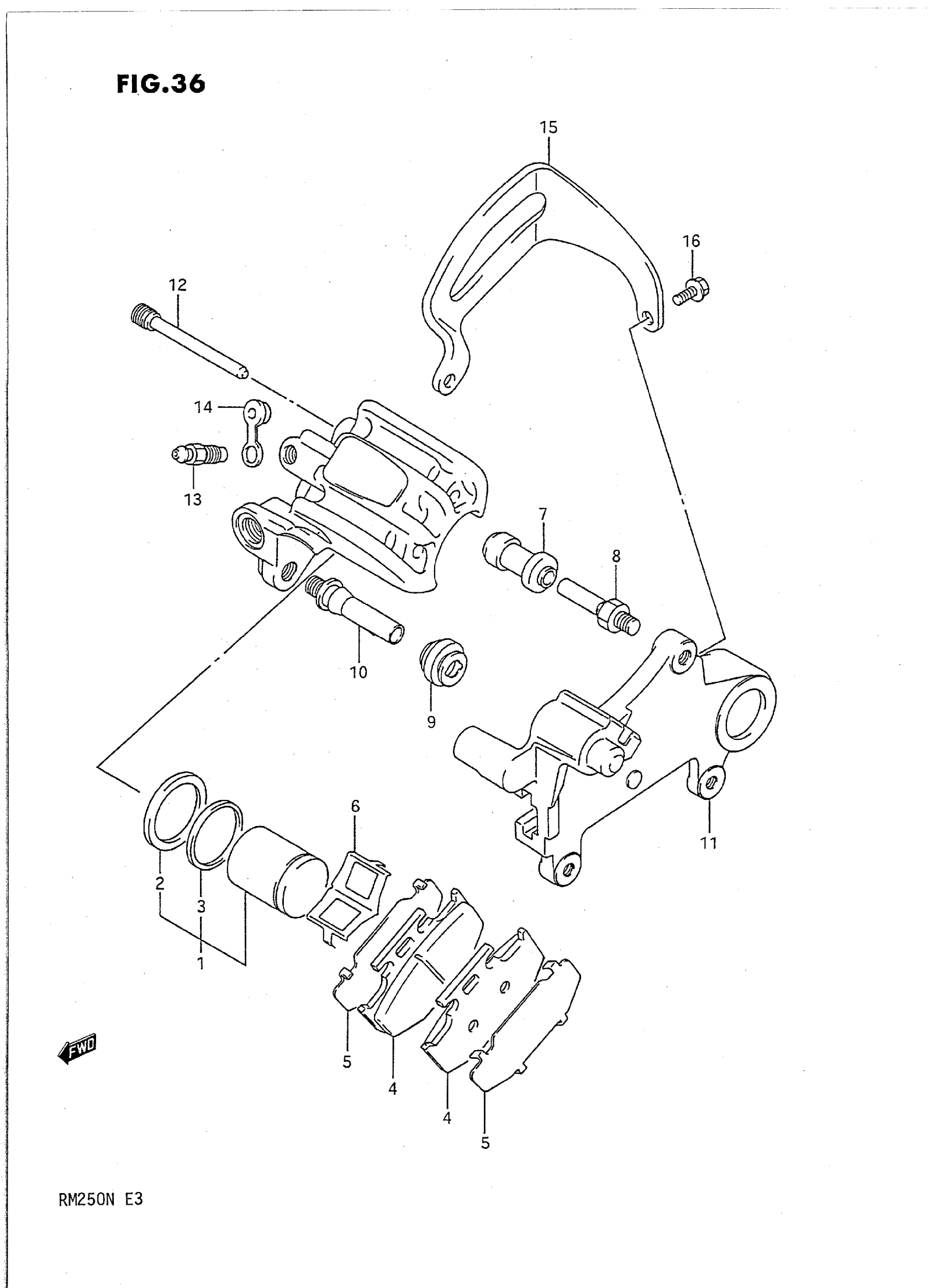

1992 Suzuki RM250N Rear Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, REAR | Includes Item(s) 1 - 14

69100-28C00

1
Out of stock

1

PISTON SET

69100-27830

1
Out of stock

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

1
Out of stock

3

SEAL, DUST

59108-00B20

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 69140-28C00.

69100-28810

2
Out of stock

5

SHIM

69132-28C00

2
Out of stock

6

SPRING

59315-27C00

1
Out of stock

7

BOOT

59386-13A00

1
Out of stock

8

PIN

59382-14500

1
Out of stock

9

BOOT

59303-14500

1
Out of stock

10

PIN

59305-27C00

1
Out of stock

11

BRACKET

69351-27C00

1
Out of stock

12

PIN

59345-14600

2

$18.33

In stock

13

BLEEDER

59121-01A00

1
Out of stock

14

CAP

59122-01A00

1
Out of stock

15

GUARD, CALIPER This part replaces 69725-27C10.

69725-27C20

1
Out of stock

16

BOLT

01547-06107

2

$1.80

In stock
