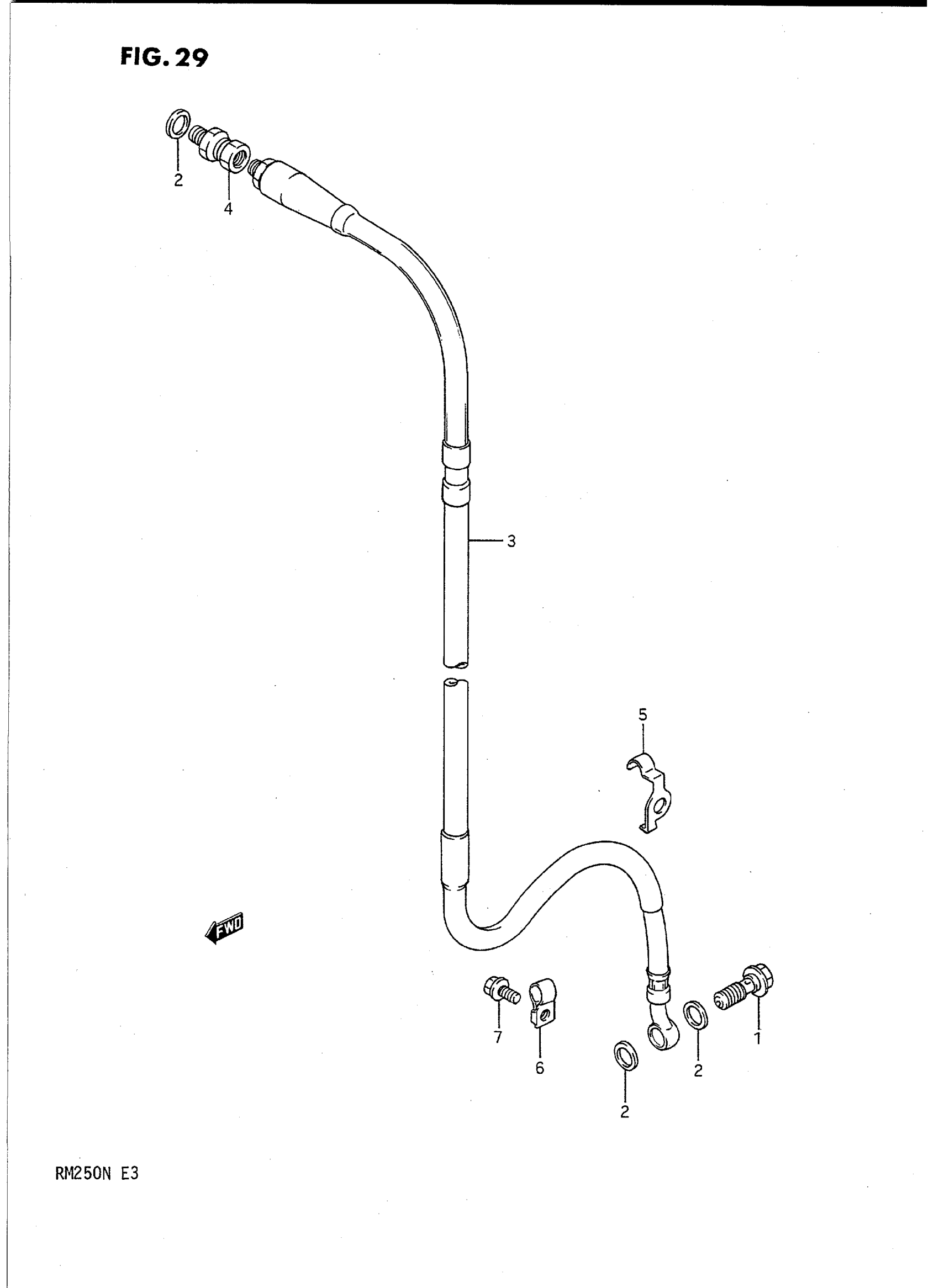

Suzuki RM250N (1992) FRONT BRAKE HOSE (MODEL K/L/M) Diagram

#

Description

Price

1

BOLT | MODEL K/L

09360-10017

$3.08

1

UNION | MODEL M This part replaces 09360-10034.

09360-10062

$5.81

2

WASHER (10X15X1.5)

09161-10009

$1.83

3

HOSE, FRONT BRAKE This part replaces 59480-28C02.

59480-28E10

Unavailable

4

ADAPTER, BRAKE HOSE

59290-14501

$40.83

5

CLAMP, BRAKE HOSE NO.1

59246-28C01

Unavailable

6

CLAMP, BRAKE HOSE NO.2

59247-28C01

Unavailable

7

BOLT | MODEL K/L This part replaces 01934-06108.

01570-06107

$3.23

7

BOLT (6X10) | MODEL M This part replaces 09103-06145.

09103-06188

$3.17
