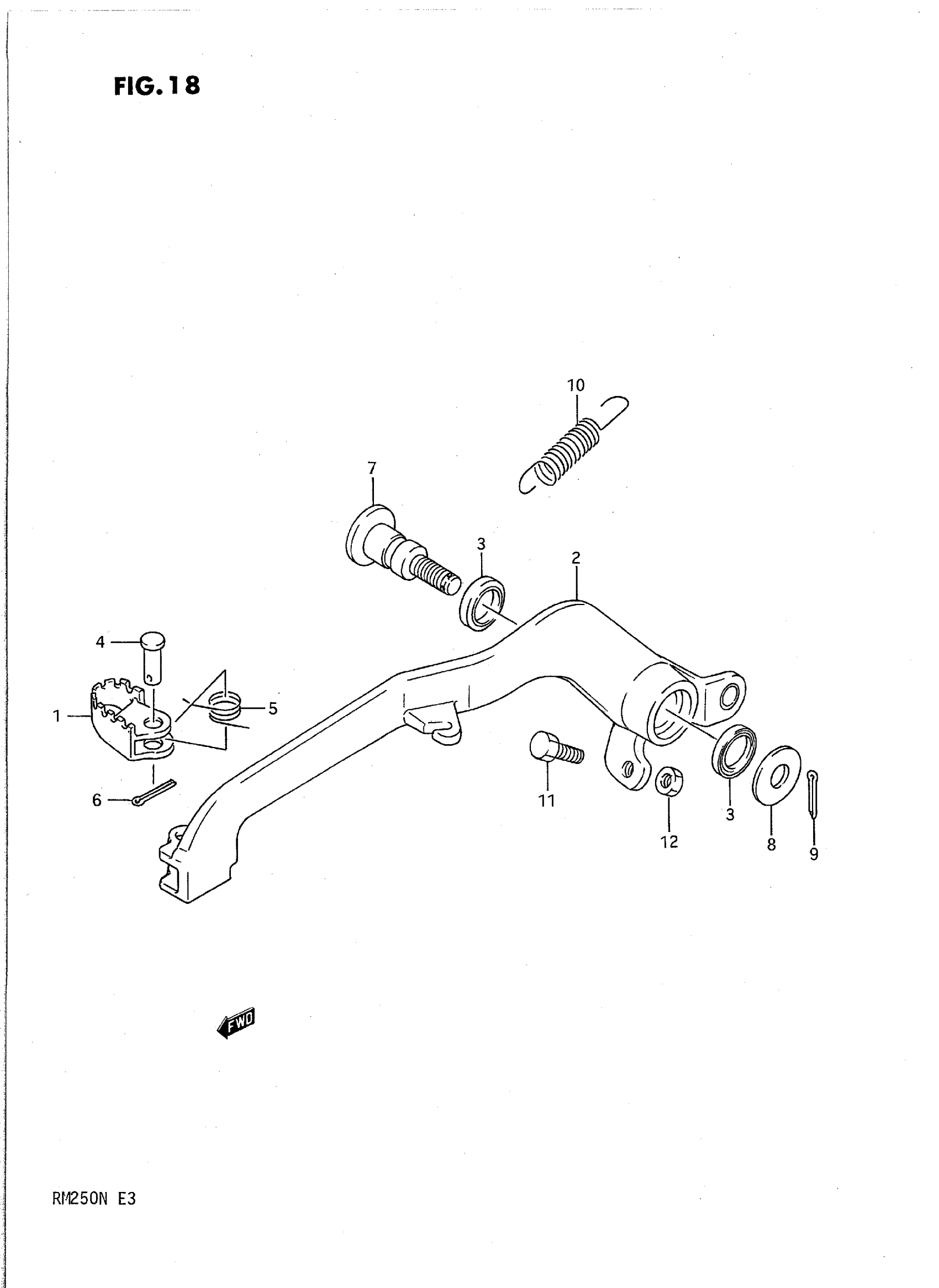

Suzuki RM250N (1992) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE | MODEL K/L/M

43110-27C00

Unavailable

1

PEDAL, BRAKE | MODEL N

43110-43D00

$15.78

2

ARM, REAR BRAKE | MODEL K/L

43120-28C00

Unavailable

2

ARM, REAR BRAKE | MODEL M This part replaces 43120-28C20.

43120-28C00

Unavailable

2

ARM, REAR BRAKE | MODEL N; Includes Item(s) 3 This part replaces 43120-28C30.

43120-28E10

Unavailable

3

DUST SEAL

09284-15006

$3.55

4

PIN

09200-06062

$2.20

5

SPRING | MODEL K/L/M

09444-11005

$2.86

5

SPRING | MODEL N

09444-11006

$3.18

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

SHAFT, BRAKE PEDAL

43142-27C00

$23.07

8

THRUST WASHER

08211-10261

$2.03

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

10

SPRING This part replaces 09443-11039.

09443-11039-XC0

$4.18

11

BOLT

09100-06009

$1.91

12

.NUT This part replaces 08310-11067.

08310-00067

$2.13
