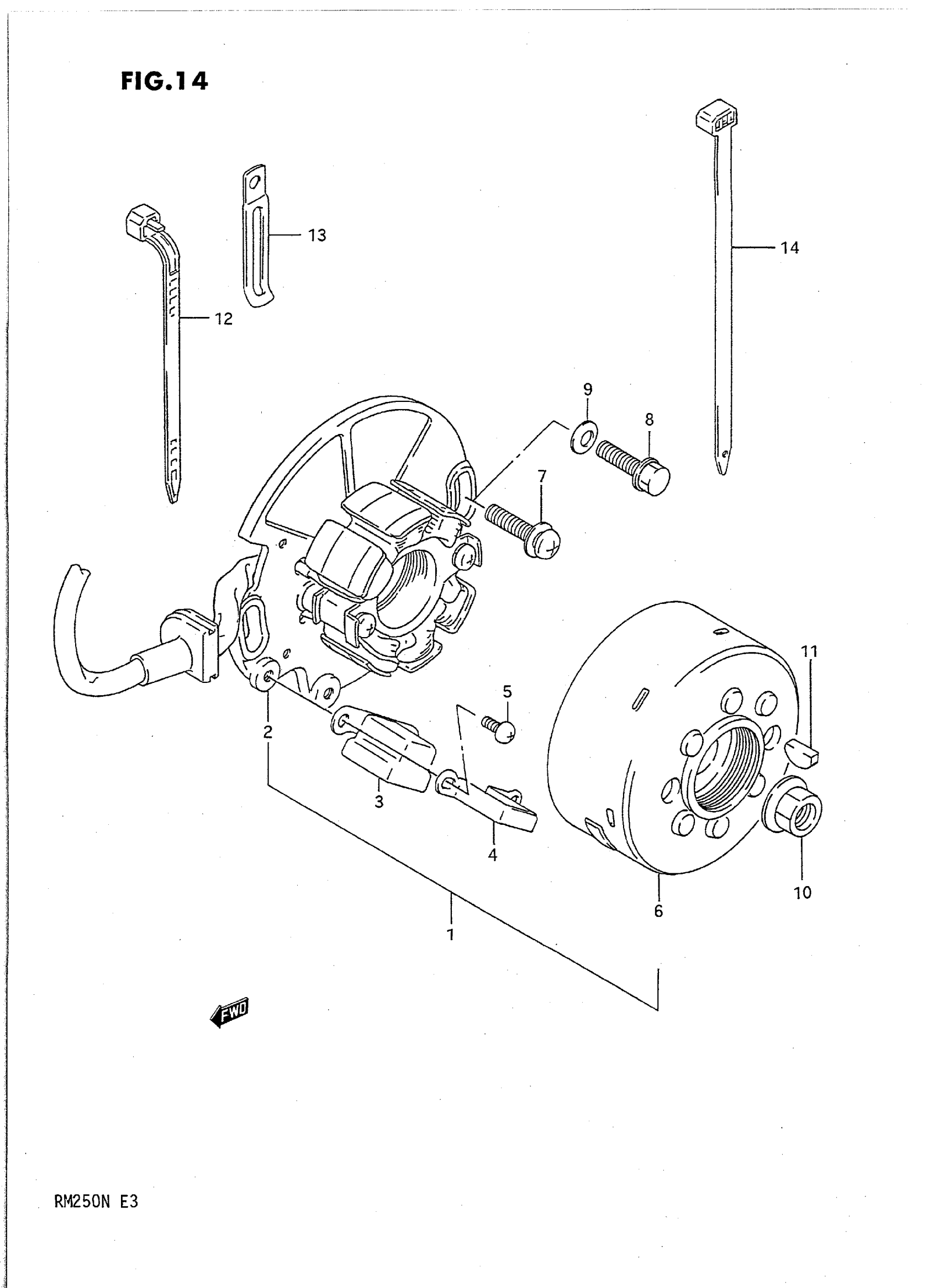

Suzuki RM250N (1992) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL K/L This part replaces 32100-28C01.

32100-28C03

Unavailable

1

MAGNETO ASSY | MODEL M This part replaces 32100-28C02.

32100-28C03

Unavailable

1

MAGNETO ASSY | MODEL N; Includes Item(s) 2 - 6

32100-28C03

Unavailable

2

STATOR ASSY | MODEL K/L This part replaces 32101-28C01.

32101-28C03

Unavailable

2

STATOR ASSY | MODEL M This part replaces 32101-28C02.

32101-28C03

Unavailable

2

STATOR | MODEL N

32101-28C03

Unavailable

3

COIL, PULSER | MODEL L/M/N This part replaces 32160-27C00.

32150-05D00

Unavailable

4

COVER, PULSER COIL | MODEL L This part replaces 32157-27C00.

32157-27C01

Unavailable

4

HOLDER, PICK UP COIL | MODEL M/N

32157-27C01

Unavailable

5

SCREW | MODEL L/M/N This part replaces 02112-75166.

02112-7516A

$2.41

6

ROTOR

32102-28C00

Unavailable

7

SCREW | MODEL K/L/M This part replaces 02112-16208.

02142-06207

$1.49

8

BOLT | MODEL N This part replaces 01547-06208.

01547-06207

$2.01

9

WASHER | MODEL N

09164-06003

$2.07

10

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

11

KEY This part replaces 08341-31049.

09420-04008

$3.42

12

CLAMP (L:125)

09407-14403

$2.26

12

CLAMP (L:235) | MODEL K/LMODEL M

09407-25401

$4.66

13

CLAMP This part replaces 09404-05404.

09404-06039

$1.74

14

CLAMP (L:214) | MODEL M/N

09407-22404

Unavailable
