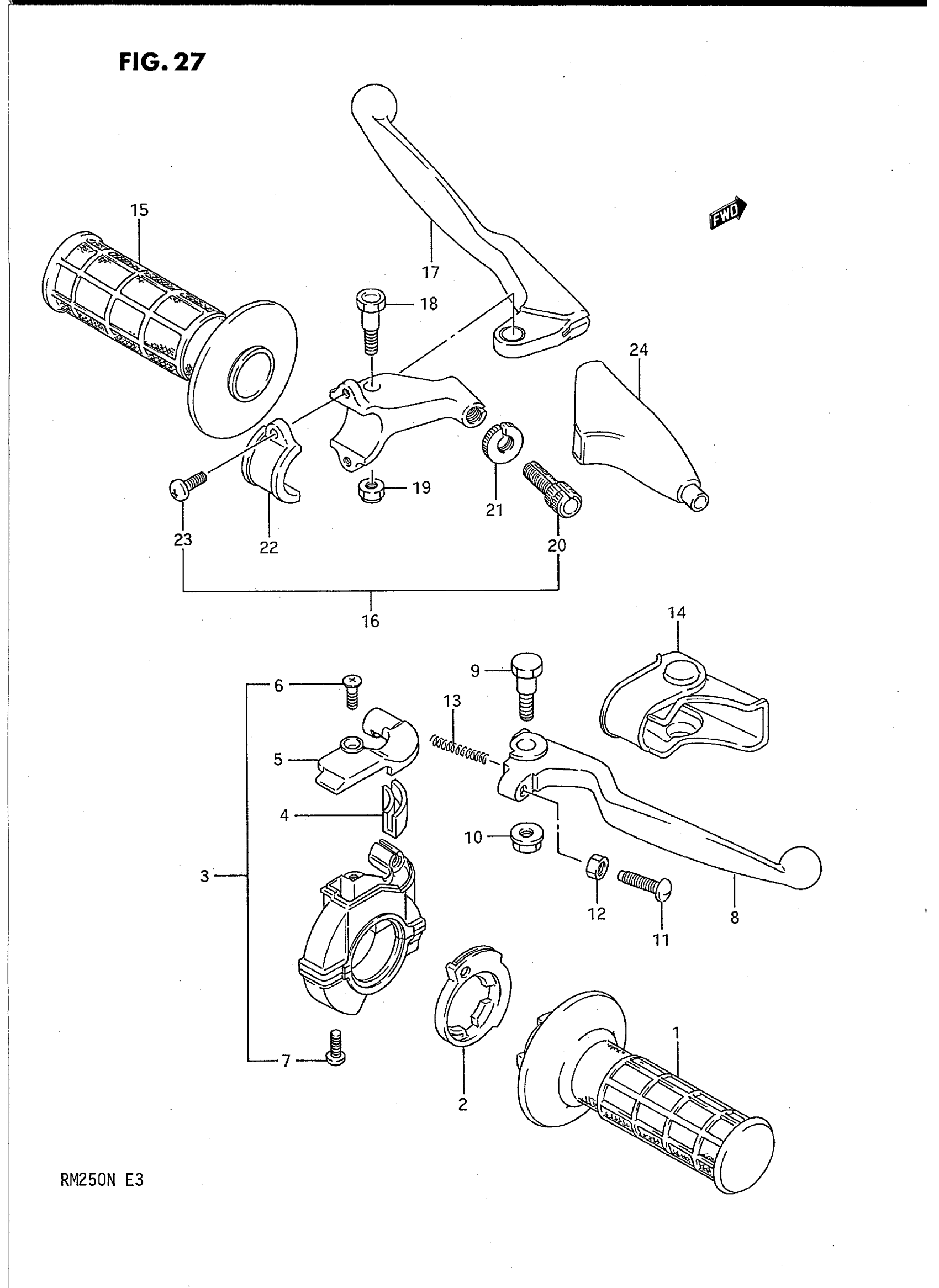

Find the part on the Handle Switch diagram for your 1992 Suzuki RM250N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki RM250N Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-27C00

1
Out of stock

2

ROTOR, THROTTLE

57114-14301

1
Out of stock

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 7

57100-14302

1
Out of stock

4

GUIDE, PIECE

57122-14301

1
Out of stock

5

COVER

57129-14302

1
Out of stock

6

SCREW This part replaces 02132-04105.

02122-0410A

1
Out of stock

7

SCREW This part replaces 02112-05168.

02112-05167

2
Out of stock

8

LEVER, BRAKE

57421-27C00

1
Out of stock

9

BOLT, BRAKE LEVER

57431-14500

1
Out of stock

10

NUT This part replaces 57442-14500.

08316-1006B

1
Out of stock

11

BOLT, ADJUST

57431-14511

1
Out of stock

12

NUT This part replaces 08310-12055.

08310-0005A

1
Out of stock

13

SPRING, RETURN

57318-14502

1
Out of stock

14

COVER, BRAKE LEVER

57341-14501

1
Out of stock

15

GRIP LH

57211-27C00

1
Out of stock

16

LEVER ASSY, CLUTCH | Includes Item(s) 17 - 23

57500-14300

1
Out of stock

17

LEVER, CLUTCH

57620-14300

1
Out of stock

18

BOLT

57431-14301

1
Out of stock

19

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

20

ADJUSTER, CABLE

57441-14210

1
Out of stock

21

NUT

57442-14200

1
Out of stock

22

HOLDER

57512-14300

1
Out of stock

23

SCREW

09125-05102

2
Out of stock

24

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

1
Out of stock
