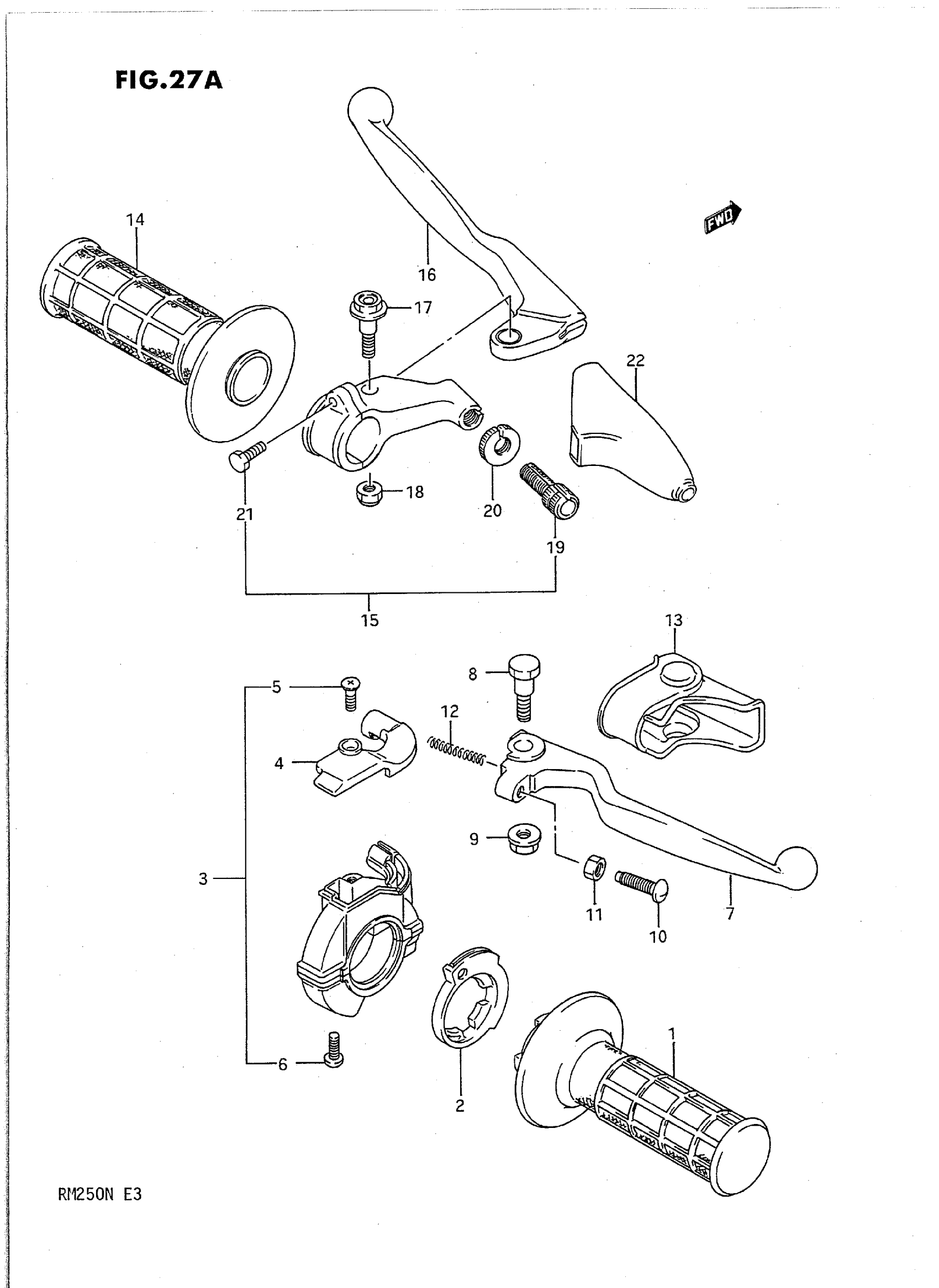

Suzuki RM250N (1992) HANDLE SWITCH (MODEL N) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$24.14

2

ROTOR, THROTTLE

57114-14301

Unavailable

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 6

57100-14302

Unavailable

4

COVER

57129-14302

Unavailable

5

SCREW This part replaces 02132-04105.

02122-0410A

$1.22

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

LEVER, BRAKE

57421-27C00

$12.66

8

BOLT, BRAKE LEVER

57431-14500

$5.75

9

NUT This part replaces 57442-14500.

08316-1006B

$2.50

10

BOLT, ADJUST

57431-14511

$5.46

11

NUT This part replaces 08310-12055.

08310-0005A

$1.83

12

SPRING, RETURN

57318-14502

$4.09

13

COVER, BRAKE LEVER

57341-14501

$10.58

14

GRIP LH

57211-27C00

$11.25

15

LEVER ASSY,CLUTCH | Includes Item(s) 16 - 21 This part replaces 57500-28C00.

57500-28C13

$89.93

16

LEVER, CLUTCH

57621-28C00

$17.28

17

BOLT This part replaces 57431-28C00.

57431-28C01

$9.57

18

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

19

ADJUSTER, CABLE

57441-28C00

Unavailable

20

NUT

57442-28C00

$14.63

21

BOLT This part replaces 01107-05167.

01500-0516B

$2.35

22

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.02
