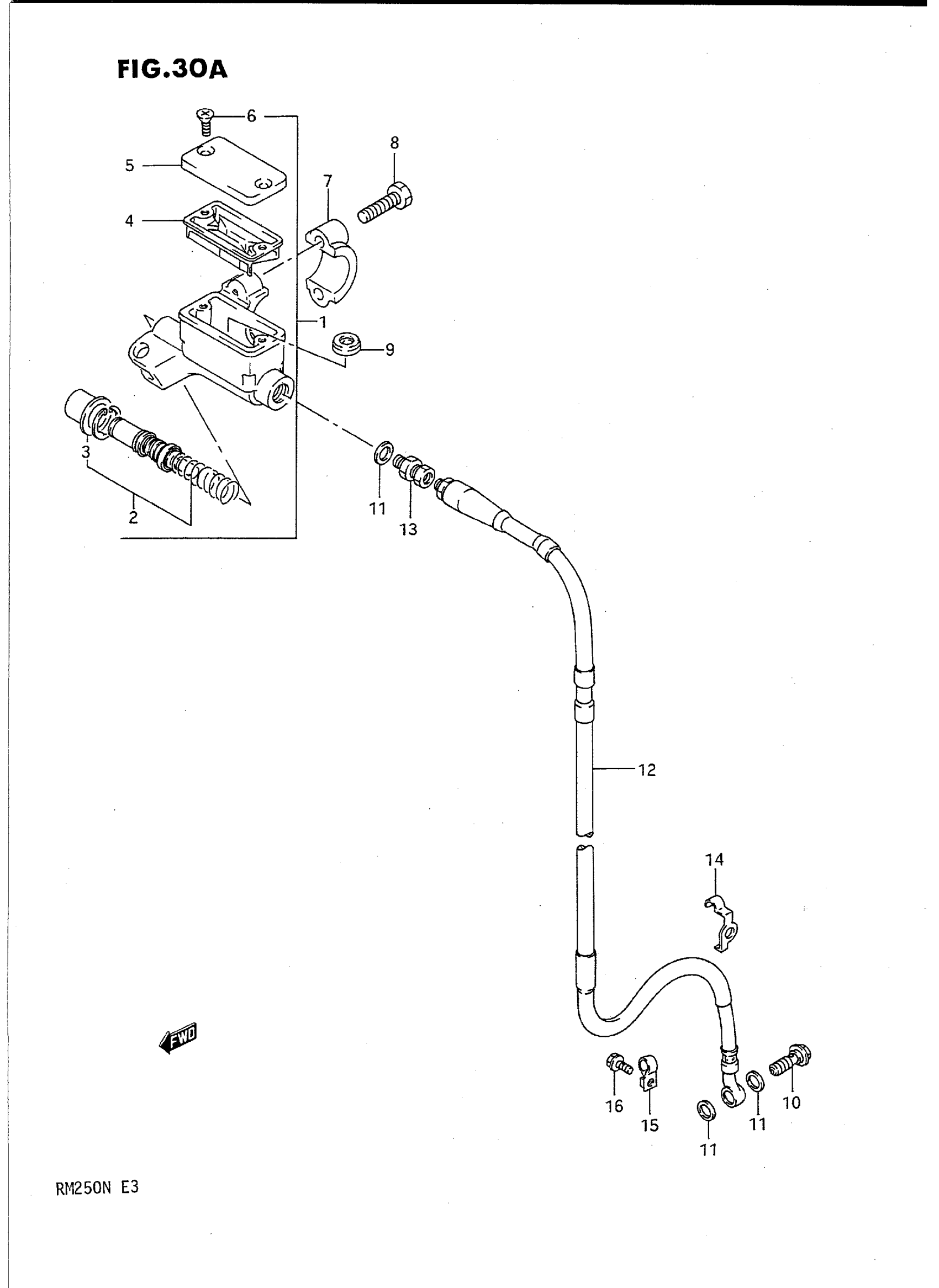

Suzuki RM250N (1992) FRONT MASTER CYLINDER (MODEL N) Diagram

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-27C01

$292.48

PISTON & CUP SET

59600-27820

$60.97

BOOT

59666-44300

$5.80

DIAPHRAGM

59667-14500

$10.12

CAP

59669-27C01

$23.32

SCREW

69689-49300

$1.91

HOLDER

59671-27C00

$17.02

BOLT

59675-27C00

$3.54

SEPARATOR

59748-14500

$11.87

UNION This part replaces 09360-10034.

09360-10062

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE, FRONT BRAKE This part replaces 59480-28C02.

59480-28E10

Unavailable

ADAPTER, BRAKE HOSE

59290-14501

$36.17

CLAMP, BRAKE HOSE NO.1

59246-28C01

Unavailable

CLAMP, BRAKE HOSE NO.2

59247-28C01

Unavailable

BOLT (6X10) This part replaces 09103-06145.

09103-06188

$2.90
