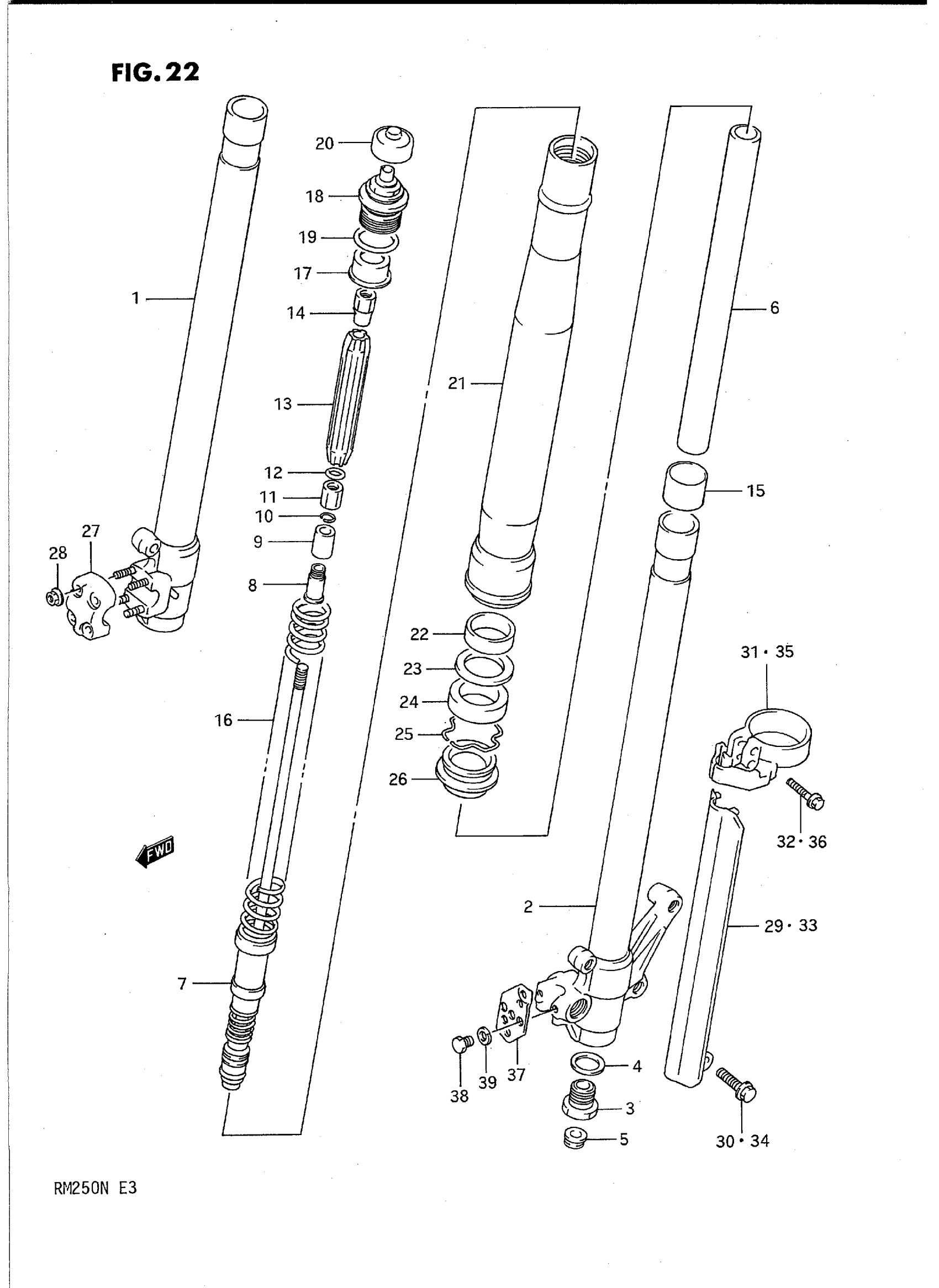

Suzuki RM250N (1992) FRONT DAMPER (MODEL K) Diagram

#

Description
Price

DAMPER ASSY, RH

51103-28C20

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 39

51104-28C30

Unavailable

1

TUBE, INNER RH

51110-28C20

Unavailable

2

TUBE, INNER LH

51120-28C20

Unavailable

3

VALVE ASSY, BASE

51170-28C00

Unavailable

4

GASKET

51148-01B40

Unavailable

5

CAP, BASE VALVE

51189-28C00

Unavailable

6

CYLINDER

51146-28C00

Unavailable

7

ROD ASSY, PISTON

51128-28C00

Unavailable

8

PIECE, HOLDER

51812-28C00

Unavailable

9

PIECE, OIL LOCK

51811-28C00

Unavailable

10

RING, SNAP

51813-28C00

Unavailable

11

NUT, PIECE

51814-28C00

Unavailable

12

O RING (D:2.4,ID:12.3) This part replaces 51187-28C00.

09280-12008

$2.76

13

GUIDE, SPRING LOWER

51172-28C00

Unavailable

14

NUT, ROD

51129-27C00

Unavailable

15

.PISTON This part replaces 51121-28C00.

51121-26E10

$30.22

16

SPRING

51171-28C00

Unavailable

17

GUIDE, SPRING UPPER

51175-28C00

Unavailable

18

CAP, FORK

51351-28C00

Unavailable

19

O RING This part replaces 51117-28C00.

51117-28C01

$3.35

20

RUBBER, CAP

51188-01B20

Unavailable

21

TUBE, OUTER

51130-28C20

Unavailable

22

METAL, SLIDE This part replaces 51167-28C00.

51167-26E10

$24.52

23

WASHER

51158-05A00

$5.83

24

SEAL, OIL This part replaces 51153-28C00.

51153-27C20

$13.63

25

RING, SNAP

51156-49440

$5.05

26

DUST SEAL

51173-28C00

$23.88

27

HOLDER, AXLE

51132-28C00

Unavailable

28

NUT, AXLE HOLDER

08319-31067

$2.03

29

PROTECTOR, RH

51201-28C00

Unavailable

30

BOLT, LOWER

01547-06357

$2.03

31

GUIDE, PROTECTOR RH This part replaces 51203-28C00.

51201-27C20

Unavailable

32

BOLT This part replaces 01514-05358.

01550-0535B

$2.72

33

PROTECTOR, LH

51211-28C00

Unavailable

34

BOLT, LOWER

01547-06357

$2.03

35

GUIDE, PROTECTOR LH This part replaces 51213-28C00.

51211-27C20

Unavailable

36

BOLT This part replaces 01514-05358.

01550-0535B

$2.72

37

COVER, HOSE

59248-28C00

Unavailable

38

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

39

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84
