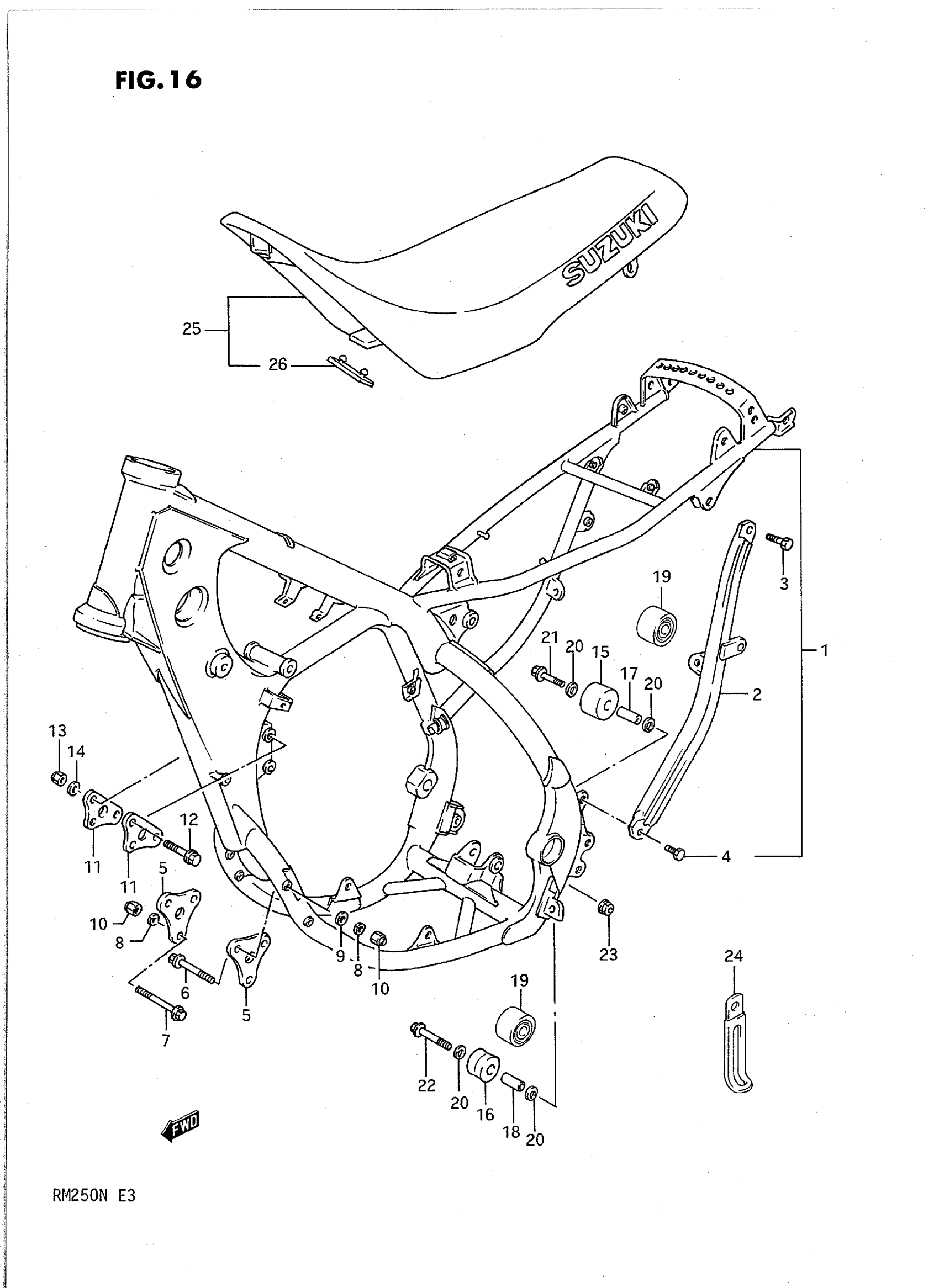

Suzuki RM250N (1992) FRAME - SEAT Diagram

#

Description
Price

1

FRAME SET (BLUE) | MODEL K

41100-28830-19F

Unavailable

1

FRAME SET (BLUE) | MODEL L

41100-28840-19F

Unavailable

1

FRAME SET (YELLOW) | MODEL M

41100-28850-1AZ

Unavailable

1

FRAME SET (YELLOW) | MODEL N; Includes Item(s) 2 - 4

41100-28860-1AZ

Unavailable

2

TUBE, FRAME SIDE | MODEL K

41670-27C00

Unavailable

2

TUBE, FRAME SIDE | MODEL L/M This part replaces 41670-27C10.

41670-43D00

Unavailable

2

TUBE, FRAME SIDE | MODEL N

41670-43D00

Unavailable

3

BOLT, UPPER | MODEL K/L/M

09100-08274

$3.78

3

BOLT | MODEL N This part replaces 01127-08257.

01550-08257

$2.81

4

BOLT (8X16) | MODEL K/M This part replaces 09100-08267.

09100-08284

$3.87

4

BOLT, LOWER | MODEL L

09100-08284

$3.87

4

BOLT M8X16 | MODEL N This part replaces 01127-08168.

01550-08167

$2.85

5

PLATE, ENGINE MOUNT FRONT

41991-28C00

Unavailable

6

.BOLT (8X55) | MODEL K This part replaces 09103-08027.

09103-08339

$3.49

6

.BOLT (8X55) | MODEL L/M/N This part replaces 09103-08274.

09103-08339

$3.49

7

BOLT, FRONT LOWER RH

09103-08217

$3.72

8

.LOCK WASHER | MODEL K This part replaces 08321-21088.

08321-01087

$2.13

9

WASHER | MODEL K This part replaces 08322-11088.

08322-01087

$2.13

10

NUT | MODEL K This part replaces 08319-21088.

08319-2108A

$2.12

10

NUT | MODEL L/M/N

09159-08034

$1.62

11

PLATE, ENGINE MOUNTING UPPER | MODEL K/L

41993-28C00

Unavailable

11

PLATE, ENGINE MOUNTING UPPER | MODEL M This part replaces 41993-28C20.

41993-28C21

Unavailable

11

PLATE, ENGINE MOUNTING UPPER | MODEL N

41993-28C21

Unavailable

12

BOLT, LH | MODEL K This part replaces 01517-08508.

01550-08507

$3.55

12

BOLT | MODEL L/M/N

09103-08043

$3.18

13

NUT | MODEL K This part replaces 08319-21088.

08319-2108A

$2.12

13

NUT | MODEL L/M/N

09159-08034

$1.62

14

WASHER | MODEL K This part replaces 08322-11088.

08322-01087

$2.13

15

ROLLER, CHAIN CONTROL UPPER | MODEL K

43911-01B10

$16.63

16

ROLLER, CHAIN CONTROL LOWER | MODEL K

43911-35B00

$19.98

17

SPACER (8.5X14X28) | MODEL K This part replaces 09180-08136.

09180-08206

$5.75

18

SPACER | MODEL K This part replaces 09180-08119.

09180-08156

$6.70

19

ROLLER, CHAIN CONTROL | MODEL L/M This part replaces 43910-27C10.

43910-27C11

$64.67

19

ROLLER, CHAIN CONTROL | MODEL N

43910-27C11

$64.67

20

WASHER | MODEL K

08211-08221

$2.45

20

WASHER | MODEL L/M/N

08211-08121

$1.99

21

BOLT, UPPER

09103-08083

$3.70

22

BOLT, LOWER

09103-08043

$3.18

23

NUT, LOWER

08319-31087

$2.32

24

CLAMP | MODEL L/M/N This part replaces 09404-08402.

09404-08420

$3.16

25

SEAT ASSY (BLUE) | MODEL K/L

45100-28C00-4UZ

Unavailable

25

SEAT ASSY | MODEL M

45100-28C10-E83

Unavailable

25

SEAT ASSY | MODEL N; Includes Item(s) 26

45100-28C10-K33

Unavailable

26

CUSHION

09321-08009

$3.05
