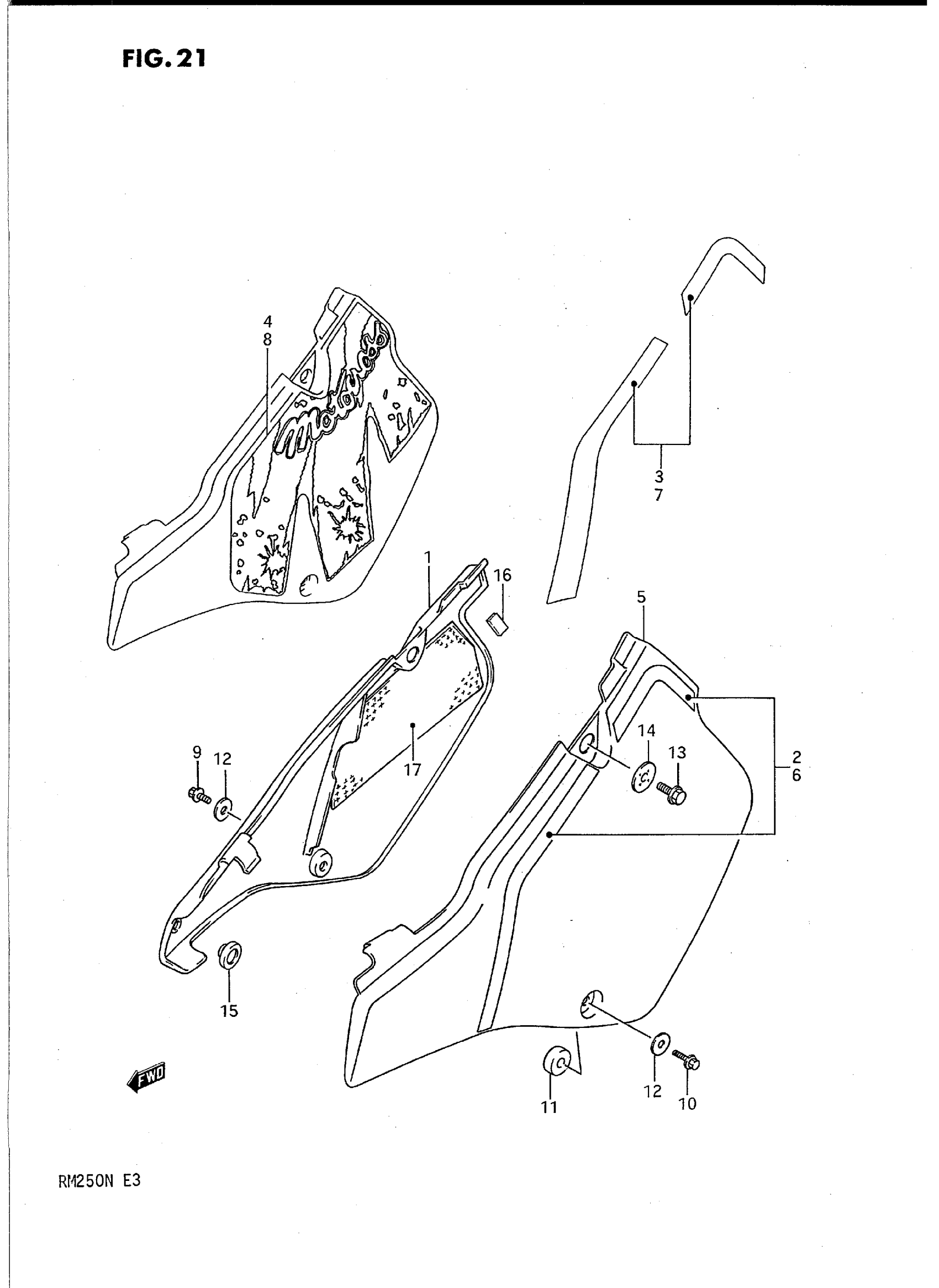

Suzuki RM250N (1992) FRAME COVER (MODEL K/L/M) Diagram

#

Description
Price

1

COVER, FRAME RH (YELLOW) | MODEL K/L

47111-28C00-25Y

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL M

47111-28C00-30H

Unavailable

2

EMBLEM, RH (BLUE) | MODEL K

68132-28C00-33N

Unavailable

3

EMBLEM, RH (BLUE) | MODEL L

68132-28C10-34S

Unavailable

4

EMBLEM, RH | MODEL M

68132-28C30-0WN

Unavailable

5

COVER, FRAME LH (YELLOW) | MODEL K/L

47211-27C00-25Y

Unavailable

5

COVER, FRAME LH (WHITE) | MODEL M

47211-27C00-30H

Unavailable

6

EMBLEM, LH (BLUE) | MODEL K This part replaces 68142-27C00-33N.

68142-27C10-34S

Unavailable

7

EMBLEM, LH (BLUE) | MODEL L

68142-27C10-34S

Unavailable

8

EMBLEM, LH | MODEL M

68142-27C30-0WN

Unavailable

9

BOLT, FRONT RH

01547-06127

$1.65

10

BOLT, FRONT LH | MODEL K

01547-06257

$2.03

10

BOLT, FRONT LH | MODEL L/M

01547-06167

$1.65

11

SPACER | MODEL K

09180-06215

$7.95

12

WASHER

09168-06027

$2.80

13

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

14

WASHER, REAR

09169-08045

$2.23

15

CUSHION, MUFFLER REAR | MODEL K

09321-10018

$5.45

15

CUSHION, MUFFLER REAR | MODEL L/M

09321-10024

$5.29

16

CUSHION, REAR | MODEL M

47161-28C00

Unavailable

17

HEAT SHIELD, RH (T:3.2) | MODEL K This part replaces 47166-28C00.

47166-28C03

Unavailable

17

HEAT SHIELD, RH (T:3.2) | MODEL L This part replaces 47166-28C02.

47166-28C03

Unavailable

17

HEAT SHIELD, RH (T:3.2) | MODEL M

47166-28C03

Unavailable
