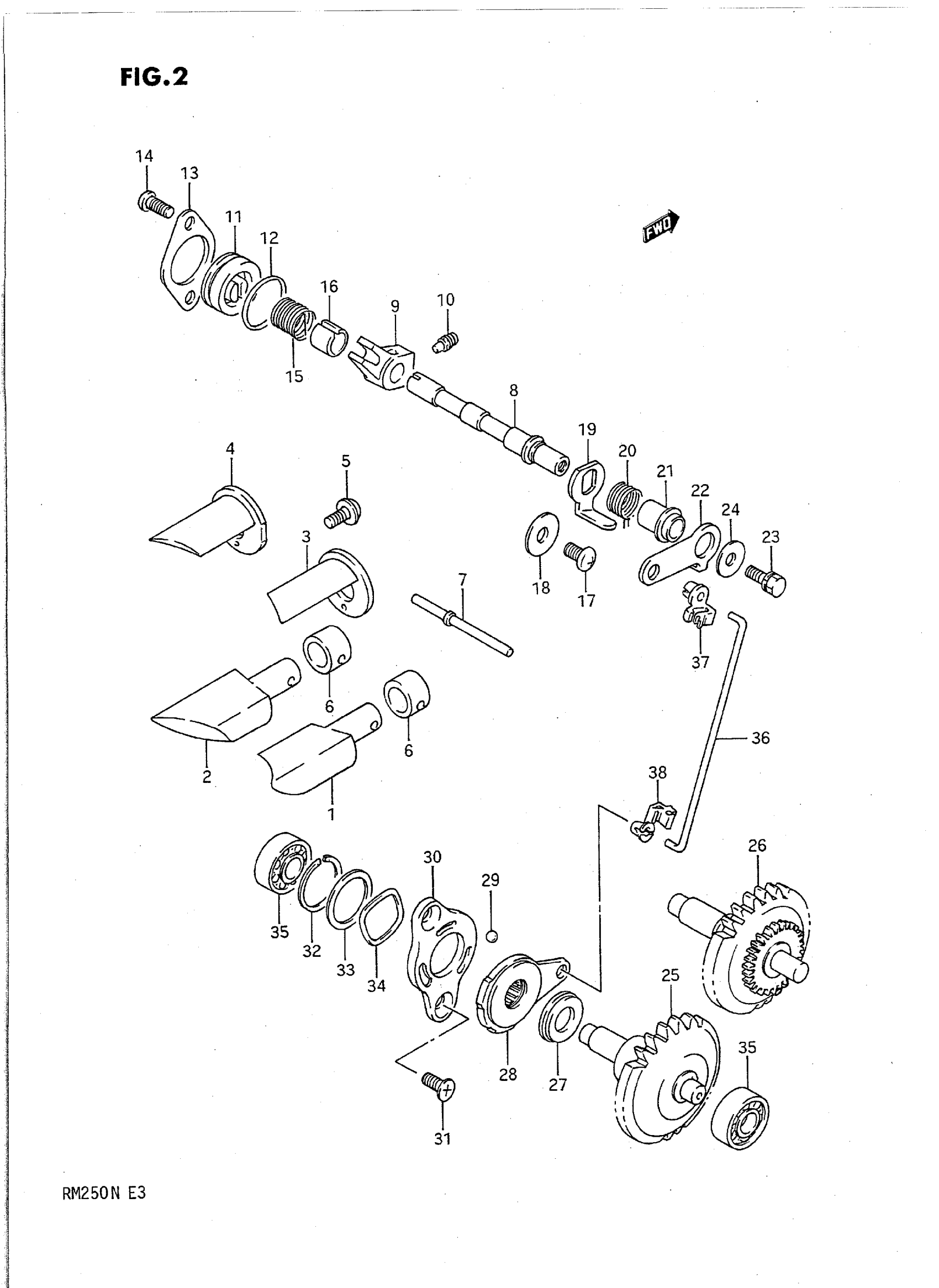

Suzuki RM250N (1992) EXHAUST VALVE Diagram

#

Description
Price

1

VALVE, EXHAUST RH | MODEL K/M

11254-28C00

Unavailable

1

VALVE, EXHAUST RH | MODEL L/N

11254-28C20

Unavailable

2

VALVE, EXHAUST LH | MODEL K/M

11255-28C00

Unavailable

2

VALVE, EXHAUST LH | MODEL L/N

11255-28C20

Unavailable

3

GUIDE, EXHAUST VALVE RH | MODEL K This part replaces 11261-28C00.

11261-28C01

Unavailable

3

GUIDE, EXHAUST VALVE RH | MODEL L/N

11261-28C20

Unavailable

3

GUIDE, EXHAUST VALVE RH | MODEL M

11261-28C01

Unavailable

4

GUIDE, EXHAUST VALVE LH | MODEL K This part replaces 11262-28C00.

11262-28C01

Unavailable

4

GUIDE, EXHAUST VALVE LH | MODEL L/N

11262-28C20

$231.18

4

GUIDE, EXHAUST VALVE LH | MODEL M

11262-28C01

Unavailable

5

SCREW | MODEL KMODEL L/M/N This part replaces 02112-15128.

02142-05127

$1.97

6

SPACER, EXHAUST VALVE This part replaces 11263-26C00.

11263-29E00

Unavailable

7

PIN This part replaces 11253-01B31.

11253-01B32

$24.17

8

NO DESCRIPTION AVAILABLE This part replaces 11259-28C00.

11259-28C01

Unavailable

9

ARM, EXHAUST VALVE SHAFT This part replaces 11264-00B23.

11264-00B24

$23.32

10

SCREW This part replaces 09134-06011.

09134-06013

$3.87

11

CAP, EXHAUST VALVE This part replaces 11258-27C00.

11258-27C01

Unavailable

12

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

13

RETAINER, EXHAUST VALVE This part replaces 11265-00B21.

11265-00B22

Unavailable

14

SCREW This part replaces 02112-05128.

02112-05127

$1.97

15

SPRING | MODEL K/L

09444-16005

Unavailable

15

SPRING | MODEL M/N

09444-16007

Unavailable

16

SPACER

11269-00B20

Unavailable

17

SCREW | MODEL K/L

02112-06087

$1.49

17

BOLT | MODEL M/N

01547-06107

$1.65

18

WASHER

08212-06201

$1.67

19

LEVER, EXHAUST VALVE NO.2 This part replaces 11267-00B20.

11267-00B21

$4.46

20

SPRING

09444-15008

$4.64

21

SPACER This part replaces 11268-01B00.

11268-01B01

$8.65

22

LEVER, EXHAUST VALVE NO.1 | MODEL K This part replaces 11266-00B20.

11266-00B21

$3.43

22

LEVER, EXHAUST VALVE NO.1 | MODEL L/M/N

11266-28C10

Unavailable

23

BOLT This part replaces 01134-05126.

01570-0512B

$2.52

24

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

25

GOVERNOR ASSY, EXHAUST VALVE | MODEL K

12670-28C00

Unavailable

26

GOVERNOR ASSY, EXHAUST VALVE | MODEL L/M/N

12670-28C10

Unavailable

27

BEARING

09263-10002

$10.19

28

ACTUATOR, EXHAUST VALVE

12680-01820

Unavailable

29

BALL

06111-06003

$1.49

30

STATOR, ACTUATOR

12682-00B20

Unavailable

31

SCREW (5X10)

09120-05003

$1.91

32

CIRCLIP

09380-19003

$2.15

33

SHIM (19.1X25X0.3)

09181-19004

$3.78

34

LOCK WASHER

09164-19001

$4.69

35

BEARING

09262-08005

$12.67

36

ROD, EXHAUST VALVE | MODEL K

12685-28C00

Unavailable

36

ROD, EXHAUST VALVE | MODEL L/M/N

12685-28C10

Unavailable

37

BUSH, EXHAUST VALVE ROD NO.1

12686-01B00

$1.65

38

BUSH, EXHAUST VALVE ROD NO.2

12687-01B00

$1.65
