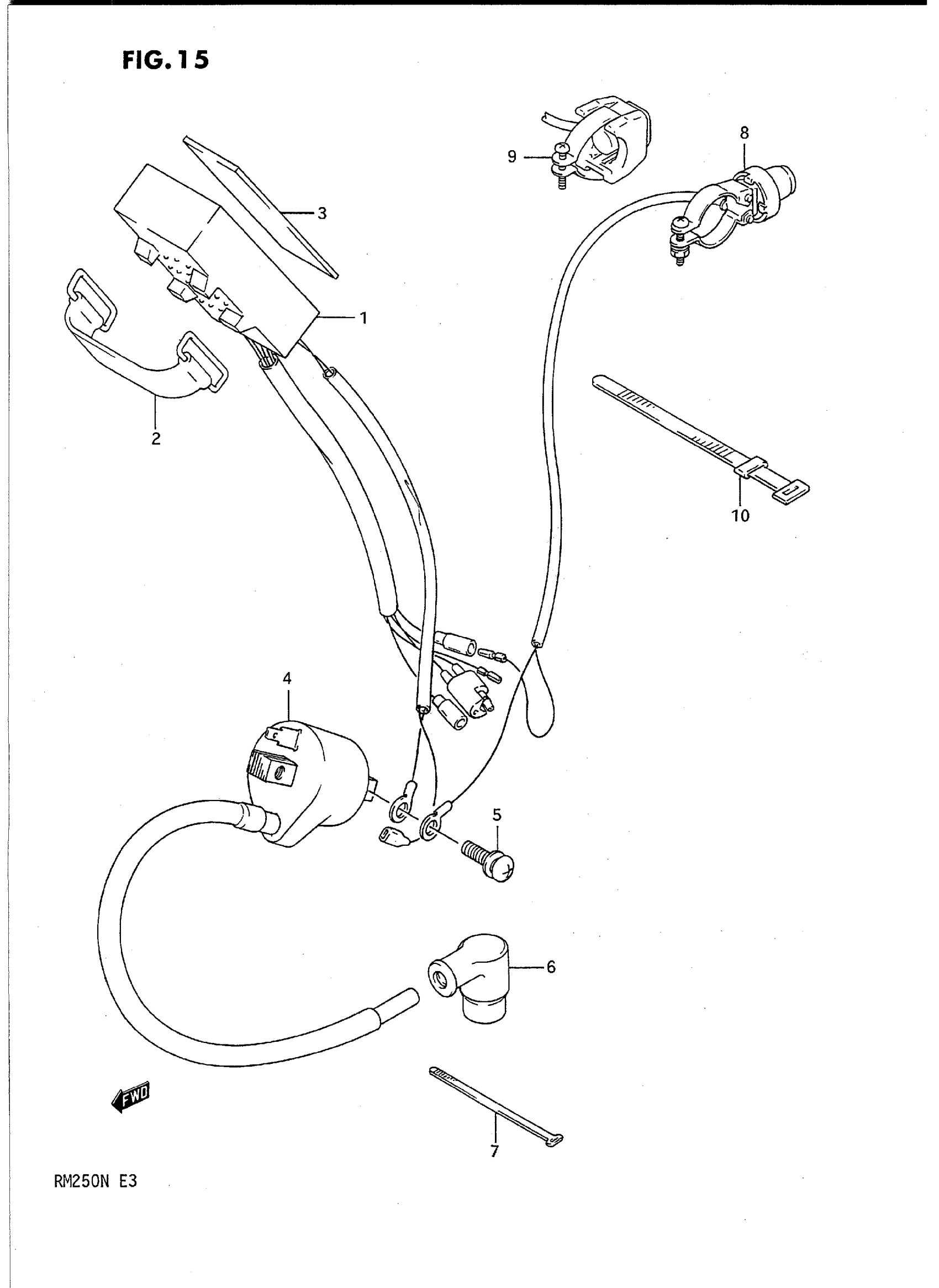

Suzuki RM250N (1992) ELECTRICAL Diagram

#

Description
Price

1

C.D.I. UNIT | MODEL K/L

32900-28C00

Unavailable

1

C.D.I. UNIT | MODEL M

32900-28C20

Unavailable

1

CDI UNIT | MODEL N This part replaces 32900-28C30.

32900-28E00

$877.65

2

BAND, CDI UNIT | MODEL L

09462-00001

$4.56

2

BAND, CDI UNIT | MODEL M/N

32942-14111

$8.62

3

PROTECTOR | MODEL K/L/M,CUT AS REQUIRED PROFILE(85X40)MODEL NCUT AS REQUIRED PROFILE(50X3)

33651-37000

$4.48

4

COIL ASSY, IGNITION This part replaces 33410-26C01.

33410-12C00

Unavailable

5

SCREW This part replaces 02112-36206.

02112-3620A

$2.06

6

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

7

BELT

09407-09402

$2.45

8

SWITCH ASSY, ENGINE STOP | MODEL K This part replaces 37820-00B00.

37820-14X50

$48.54

9

SWITCH ASSY, ENGINE STOP | MODEL L/M/N This part replaces 37820-27C00.

37820-14X50

$48.54

10

CLAMP

09407-12402

$3.04
